Nadoli DS603648C-CL Manual

36'' x 48'' rectangular sliding shower door
Hide thumbs

Advertisement

Quick Links

Download this manual

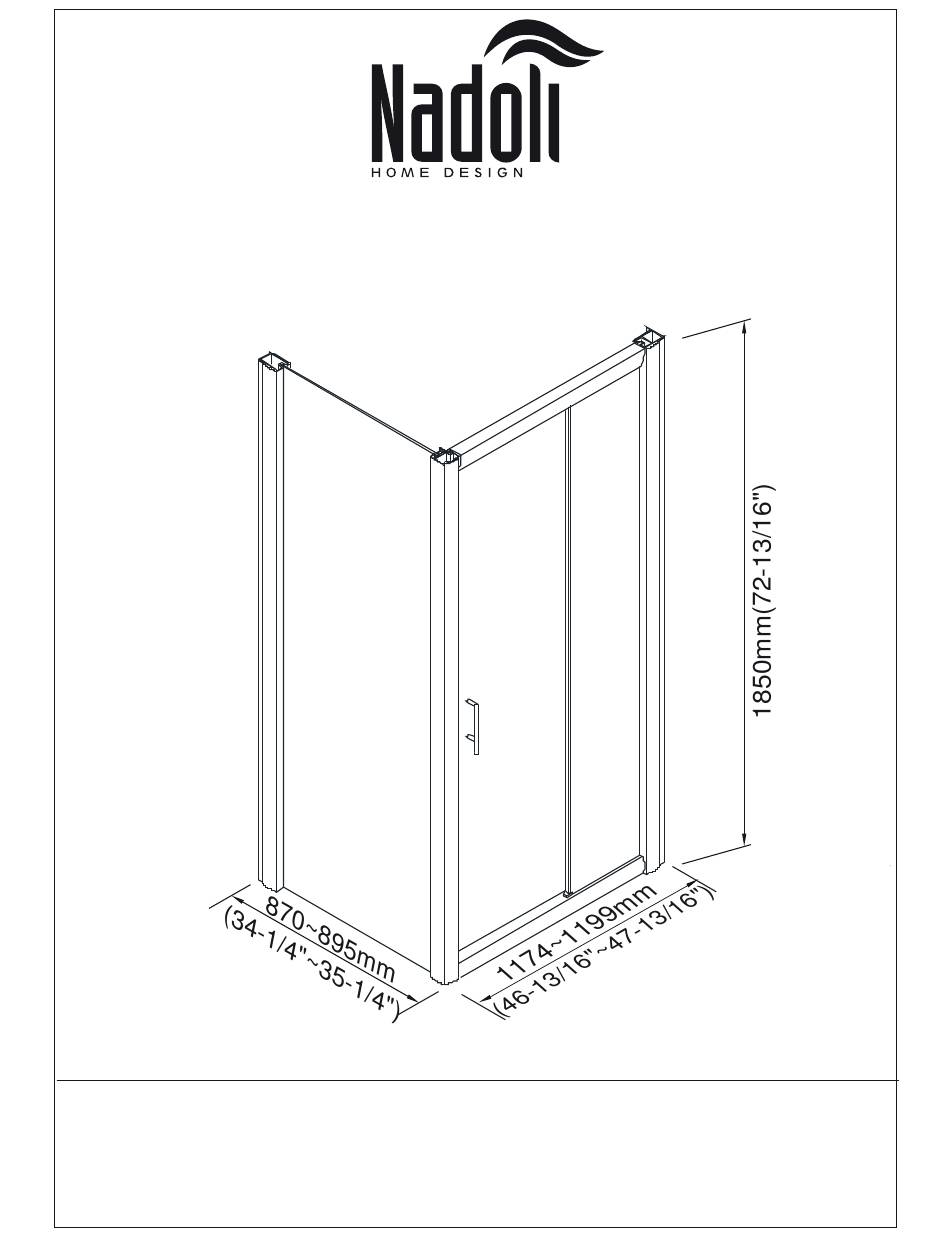

DS603648C-CL
36'' x 48'' Rectangular Sliding Shower Door
Dimension of shower door:
(870~895) x (1174~1199) x 1850mm(H) / (34-1/4"~35-1/4") x (46-13/16"~47-13/16") x 72-13/16"(H)
Profile adjustment :+25mm/1"
Rev. April 11,2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS603648C-CL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nadoli DS603648C-CL

Summary of Contents for Nadoli DS603648C-CL

  • Page 1 DS603648C-CL 36'' x 48'' Rectangular Sliding Shower Door Dimension of shower door: (870~895) x (1174~1199) x 1850mm(H) / (34-1/4"~35-1/4") x (46-13/16"~47-13/16") x 72-13/16"(H) Profile adjustment :+25mm/1" Rev. April 11,2018...
  • Page 2 DS603660C-CL 36'' x 60'' Rectangular Sliding Shower Door Dimension of shower door: (870~895) x (1470~1495) x 1850mm(H) / (34-1/4"~35-1/4") x (57-7/8"~58-7/8") x 72-13/16"(H) Profile adjustment :+25mm/1"...
  • Page 4 Assembly Drawing / Dessin d'assemblage Required Parts / Dessin d'assemblage Quantity Quantity Description Description Numéro Description Quantité Numéro Description Quantité Wall Plugs / Cheville Handle Set / Joint de poignée BS-B-Wall Post / Montant de mur Top Rollers / Roulette supérieur Water deflectors / Déflecteur d'eau Screws M4x35 / Vis M4x35 Screw Cover Caps / Bouchon de vis...
  • Page 5 Installation Steps: / Étapes d'installation: Step 1 / Étape 1 When using the level, ensure that the studs (2,17 ) are placed perpendicular to horizon plane and mark the outside edge. Mark with a pencil the screw holes that are inside the stud. *Lors de l’utilisation du niveau, s’assurer que les montants (2,17) sont placée perpendiculairement au plan de l'horizon puis marquez le bord extérieur.
  • Page 6 Step 3 / Étape 3 Tighten with #16 screw Utilisez les vis #16 pour fixer les panneaux. Step 4 / Étape 4 Ø3.2mm Combine 36” and 48” panel Combinez le panneau de 36’’ et celui de 48 ‘’. Tighten with #5 screw Utilisez les vis #5 pour fixer les panneaux.
  • Page 7 Step 5 / Étape 5 Install the door in the (a) and (b) pieces that is attached to the wall. Poser la porte dans la pièce (a) et la pièce (b) qui est fixée au mur. Step 6 / Étape 6 Put the top wheel into the rail.
  • Page 9 Step 9 / Étape 9 Ø3.2mm Tighten wall and door frame with screws #5. Solidifiez le mur et le cadrage de porte avec les vis #5. M4x10 Step 10 / Étape 10 Apply silicone to seal all exterior joints of the shower. Wait 24 hours after the application of silicone to use your shower.
  • Page 10 Shower Base Installation Manual Base de douche Manuel d'installation BS-RT3648R (2LIPS) This indentation is designed to ensure the water goes back to the shower base, towards the drain. Cette fente est conçue pour permettre à l'eau de retourner vers l'intérieur de la base de douche, vers le drain. 3-5/16˝(85mm) 2-5/16˝(60mm)
  • Page 11 IMPORTANT / IMPORTANT 1.Read this manual carefully and completely before proceeding. * Lisez attentivement ce manuel au complet avant de continuer. 2.It is recommended that you wear safety glasses at all times during the installation * Il est recommandé de porter des lunettes de sécurité en tout temps lors de l'installation 3.Prior to installation of base, all framing and plumbing work must be completed in accordance with this instruction sheet.For renovation work, existing shower surfaces must be removed to accommodate framing requirements.
  • Page 12 INSTALLATION BASE / BASE INSTALLATION Enlever la péllicule de plastique protectrice Remove protective plastic film SUITE / CONTINUED 90° 90°...
  • Page 13 SUITE / CONTINUED SUITE / CONTINUED FORET 1/8" 1 8 DRILL BIT...
  • Page 14 SUITE / CONTINUED Mortar FLOOR/PLANCHER Base / Base Pellicule / Film Mor?er / Mortar FLOOR/PLANCHER SUITE / CONTINUED IMPORTANT VUE SECTIONNELLE / SIDE SECTION VIEW...
  • Page 15 SUITE / CONTINUED 20~30mm ATTENTION ! Attendre 24h avant d'installer votre porte de douche, afin de permettre au mortier et à la finition de sécher complètement. WARNING ! Wait 24h before proceeding with the installa-tion of the shower door. This will ensure that the finish and mortar Céramiques Tiles...

  • Page 16: Garantie

    GARANTIE Votre base de douche Bain Dépôt est garantie contre tout défauts de fabrication à partir de la date de la livraison. Cette garantie de un (1) an couvre la structure de fibre de verre ( 1 an ) et la finition d’acrylique ( 1 an ). Cette garantie s’adresse seulement au propriétaire original.

  • Page 17: Warranty

    WARRANTY Your Bath Depot shower base is guaranteed against any manufacturing defect from the date of delivery. This guarantee covers the fiberglass structure for a duration of one (1) year, the acrylic finish for one (1) year. This guarantee applies to the original owner. It covers parts for the first year. This guarantee does not cover travel expenses or installation fees, nor does it cover desinstallation fees of transportation.
