36'' x 48'' rectangular sliding shower door (29 pages)
Summary of Contents for Nadoli DO503648C-CL
Page 1

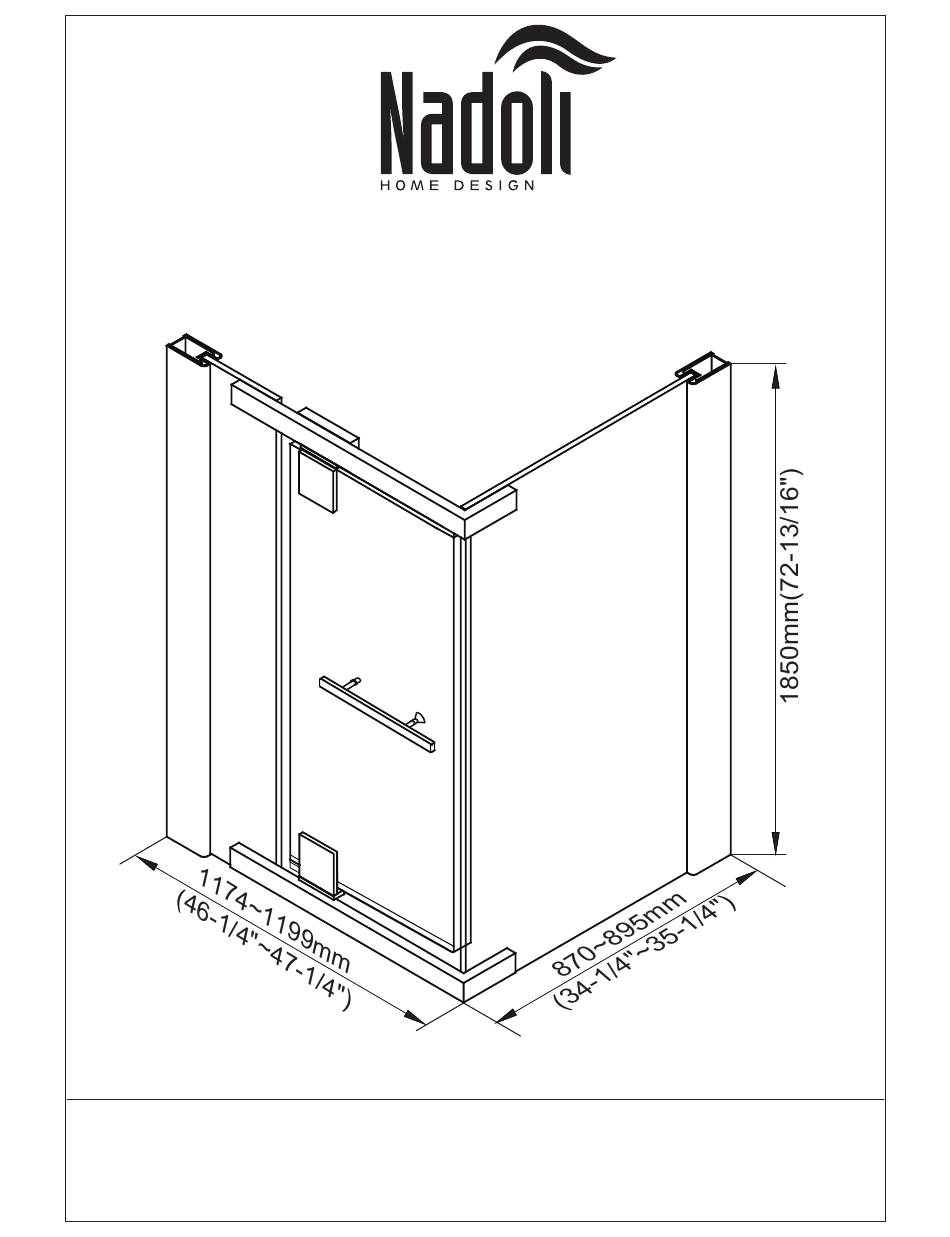

DO503648C-CL 36" x 48" Rectangular Opening Shower Door Dimension of shower door: (870~895) x (1174~1199) x 1850mm(H) / (34¼"~35¼") x (46¼"~47¼") x 72-13/16"(H) Profile adjustment : +25mm/1" Rev. Jan 01,2019...
Page 2
General Information Informations générales Please inspect the product immediately upon receipt for transit damage, missing packs / parts or manufacturing fault. Damage reported later cannot be accepted. Please handle the produc with care avoiding knocks and shock loading to all sides and edges of the glass. *Prière de bien inspecter le produit dès la réception pour s’assurer qu’il n’a aucun défaut, bris ou pièces manquantes.
Page 3
Assembly Drawing / Dessin d'assemblage 2 22 Required Parts / Dessin d'assemblage Quantity Quantity Description Description Numéro Description Quantité Numéro Description Quantité Wall posts / Montant du mur Magnetic seals / Joint magnétique Fixed panel / Panneau fixe Drip seal / Joint d'étanchéité Fixed side panel / Panneau fixe de côté...
Page 4
Installation Steps: / Étapes d'installation: Step 1 / Étape 1 Using a level ensure (1) are plumb mark the outside edge with a pencil. Then mark your screw holes that are on the inside of the *En utilisant un niveau que les montants (1) sont d'aplomb puis marquez le bord extérieur avec un crayon.
Page 5
Step 3 / Étape 3 Connect top and bottom rails (4) to fixed panels (2) and (3). Ensure rail cap bases (9) are placed on the glass before using rail fxing screws (16). Cap off with rail caps (10). Do not over tighten as this may damage rail cap bases (9).
Page 6
Now d ill 4 equally spaced 3.2mm holes into the wall (1) on the Step 5 / Étape 5 INSIDE of the screen. Make sure that your drill holes are more than 30mm back from the edge of the glass when using smallest screen size, otherwise you may break the glass.
Page 7
Step 7 / Étape 7 Slide hinge caps (8) over both hinges (7). *Faites glisser les bouchons charnière (8) sur les deux charnières (7). Hint: Place a small amount of silicone under each cap before installing to ensure cap remain in position permanently.
To whom does this warranty apply? NADOLI offers a 10-year limited warranty on shower bases and doors from the date of purchase, exclusive to the first buyer as long as he/she resides in the same property. The warranty is intended for residential and/or domestic use.
À qui la garantie s’applique-t-elle? NADOLI offre une garantie limitée de 10 ans sur les bases et portes de douche, à partir de la date d’achat, au premier acheteur, tant et aussi longtemps qu’il réside la propriété. La garantie est destinée à un usage résidentiel et/ou domestique.
