USER MANUAL

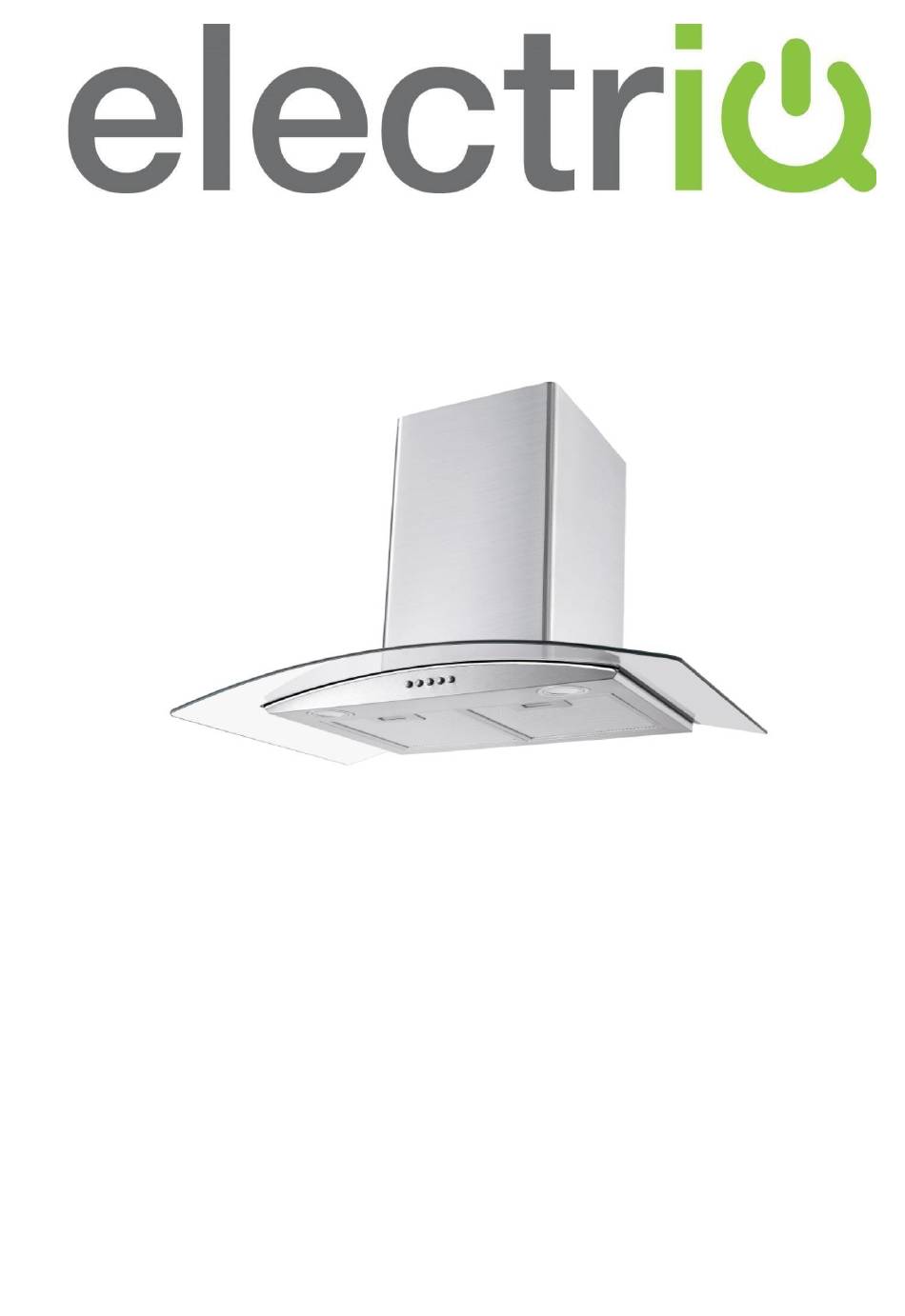

CANOPY COOKER HOOD
eiQ80CURVSCTM
eiQ80CURVBLTM
Thank you for choosing your electriQ cooker hood.
This instruction manual is designed to provide you with all required instructions
related to the installation, use and maintenance of the appliance. In order to operate
the unit correctly and safely, please read this instruction manual carefully before
installation and usage.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ElectrIQ eiQ80CURVSCTM
Summary of Contents for ElectrIQ eiQ80CURVSCTM
- Page 1 CANOPY COOKER HOOD eiQ80CURVSCTM eiQ80CURVBLTM Thank you for choosing your electriQ cooker hood. This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTALLATION OPERATION CLEANING AND MAINTENANCE FILTER INFORMATION BULB REPLACEMENT TROUBSLEHSOOTING SUPPORT PRODUCT FICHE... - Page 3 SAFETY PRECAUTIONS Whilst this product is compliant with all safety requirements, incorrect or inappropriate use can lead to both personal injury and potential damage to property. Please read the contents of this instruction booklet thoroughly before fitting or using this appliance. •...
- Page 4 • The plug must be accessible after installation for isolation in case of an emergency – or an appropriate fused switch if the unit is hard-wired to the mains via a spur. • The minimum distance between the surface of the hob and the lowest part of the hood should be at least 65cm.
- Page 5 V-FLAP INSTALLATION DIMENSIONS...
-
Page 6: Installation
INSTALLATION Before installation, measure and confirm where you will be placing your cooker hood. See below for recommended installation height. Recommended installation height:700mm Required minimum installation height: 650mm Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the 3 screws and 3 wall plugs provided. - Page 7 Drill 2x8mm holes & insert screws & wall plugs to further secure the hood. Measure where the hood chimney will be located and drill 2 holes for each chimney bracket. Secure the brackets with screws. Fix the V-flap to the air outlet and if using a vent pipe (not included) fix the vent pipe to the V-flap.
-
Page 8: Operation
OPERATION Button Function Remarks Fan Off Turns off the fan Starts the fan at low speed. Suitable for Low Speed simmering and cooking which do not produce much steam Medium Starts the fan at medium speed. Provides ideal Speed ventilation for standard cooking Starts the fan at high speed. - Page 9 MONTHLY CLEANING FOR METALLIC ANTI-GREASE FILTER IMPORTANT NOTE: Clean the filter every month; an excessive build-up of grease can become a fire hazard. The filter collects grease, smoke and dust, so the filter directly affects the efficiency of the cooker hood. If it’s not cleaned, the grease residue (potentially flammable) will saturate on the filter.
-
Page 10: Filter Information
INSTALLING GREASE MESH FILTERS To install filters: 1. Angle the filter into the slots at the back of the hood. 2. Push the button on handle of the filter. 3. Release the handle once the filter fits into position. 4. Repeat to install both filters. CARBON FILTER (not supplied) Activated carbon filters can be used to trap odours. -
Page 11: Bulb Replacement
BULB REPLACEMENT The bulb must be replaced by either the manufacturer, a service agent or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When handling the bulb, make sure it has completely cooled down before making contact with the hands. -
Page 12: Troubslehsooting
At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority for recycling advice. electriQ UK SUPPORT www.electriQ.co.uk Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday... -
Page 13: Product Fiche
PRODUCT FICHE Symbol Value Unit Annual Energy 36.41 kWh/a hood Consumption Time increase factor Fluid Dynamic Efficiency 10.1 hood Energy Efficiency Index 75.1 hood Measured airflow rate at 176.2 the best efficiency Measured air pressure at 118.3 best efficiency point Maximum airflow 301.9 Measured electric power...
