4 TECHNICAL DATA
The reader is equipped with the following antennas:

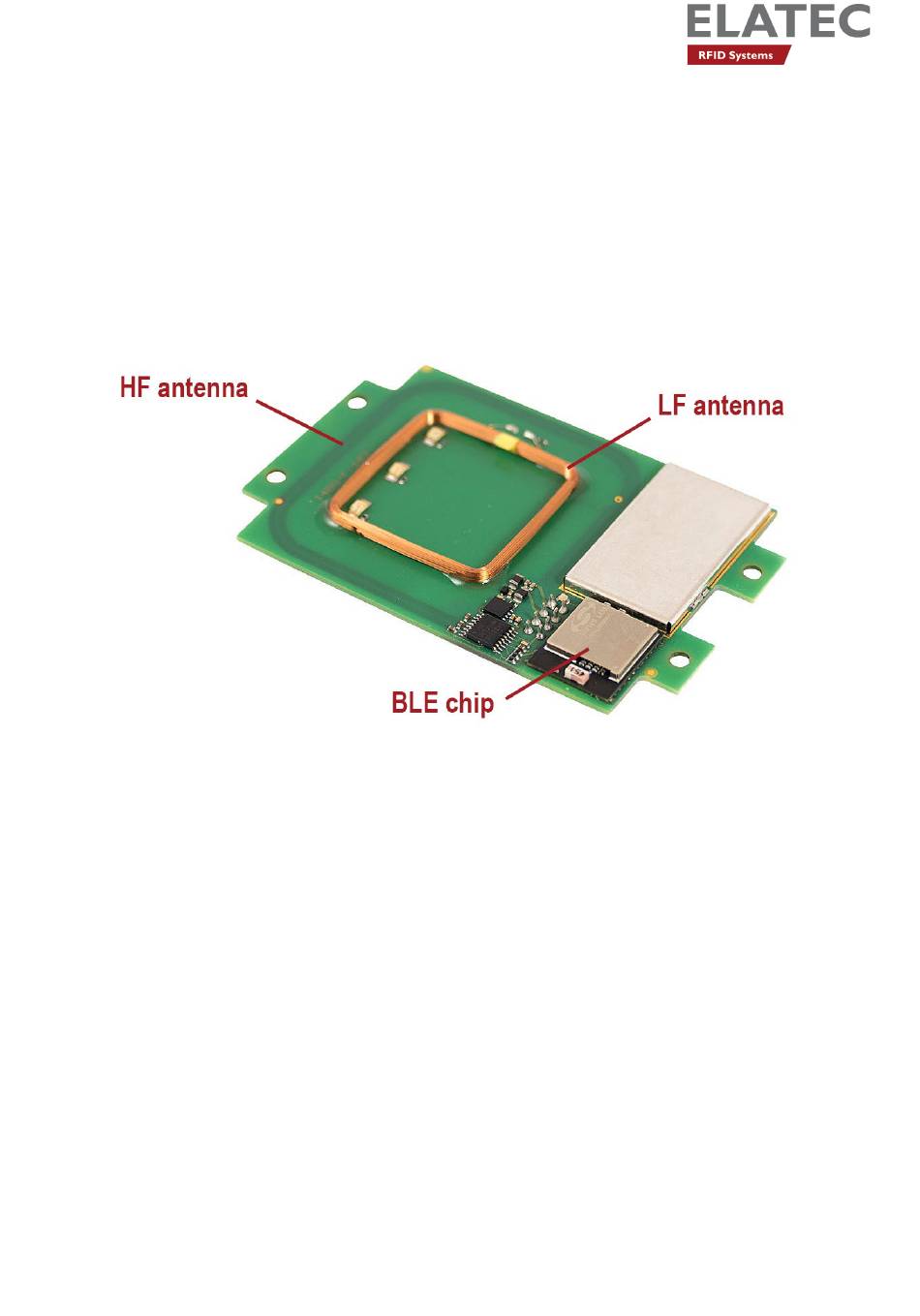

PCB contained in TWN4 MultiTech 2 BLE
HF antenna (13.56 MHz)
Dimensions: 42 x 44 mm / 1.65 x 1.73 inch
Number of turns: 3
LF antenna (125 kHz)
Dimensions: 28 x 28 mm / 1.10 x 1.10 inch
Number of turns: 151
BLE (2.4 GHz)
The antenna for the BLE module is integrated in the BLE chip.
For more information, refer to the related product data sheet or other technical documents.
