4 TECHNICAL DATA

Power supply
4.3 V - 5.5 V via USB
SmartCards
Supported SmartCards:
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Power to SmartCard:
60 mA in Class A; 55 mA in Class B; 35 mA in Class C
Antennas
The reader is equipped with the following antennas:
HF antenna (13.56 MHz)
Dimensions: 45 x 48 mm / 1.77 x 1.89 inch
Number of turns: 3
LF antenna (125 kHz)
Dimensions: 31 x 32 mm / 1.22 x 1.26 inch
Number of turns: 155
For more information, refer to the related product data sheet or other technical documents.
© 2022 ELATEC GmbH – TWN4 MultiTech SmartCard LEGIC 42 user manual DocRev1 – 03/2022

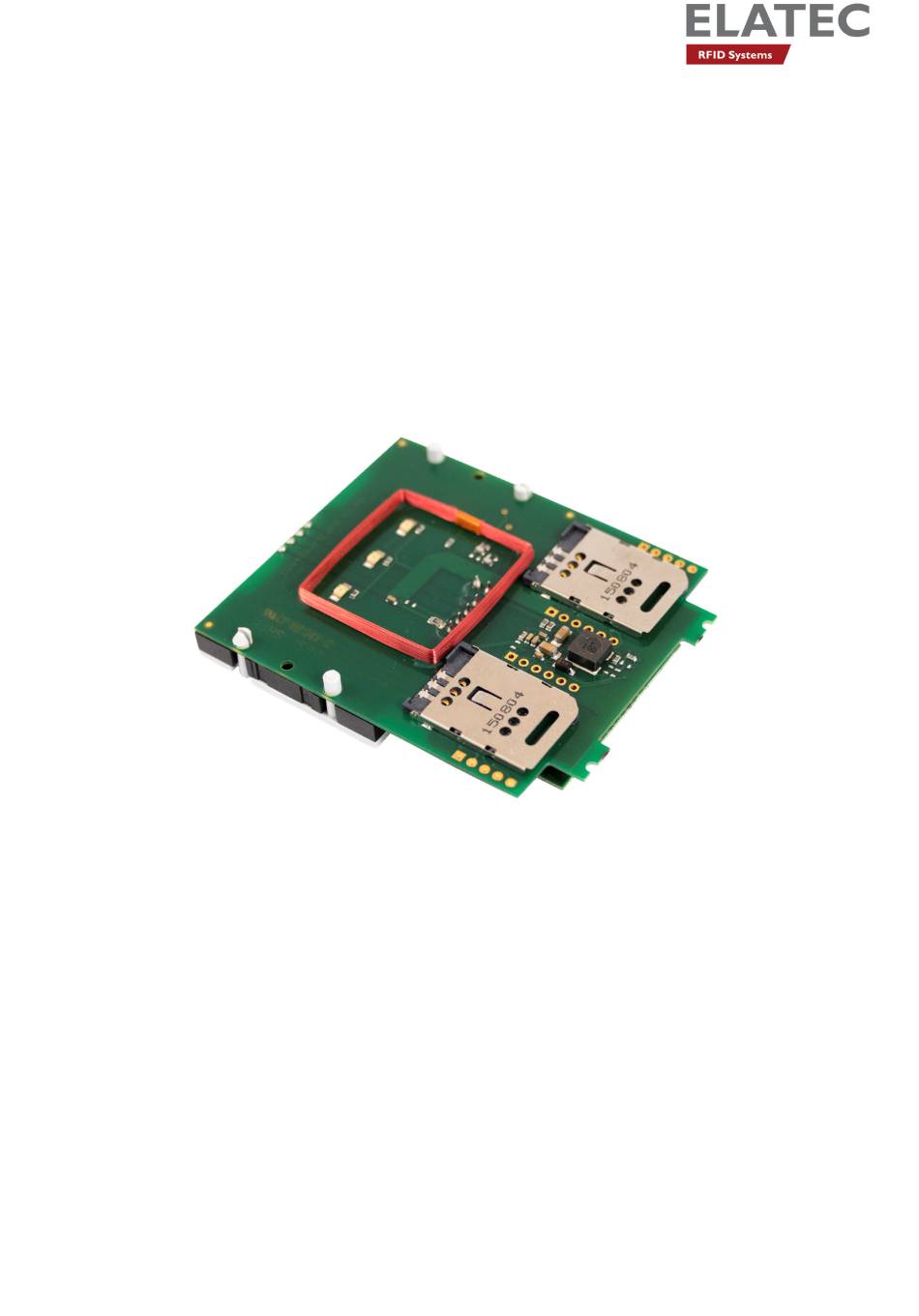

PCB contained in TWN4 MultiTech SmartCard LEGIC 42
Page 7 of 14
