HANGING THE MOTOR ASSEMBLY
Close-to-Ceiling Installation
Step 1. Pass the 120-volt supply wires through the center hole in the
ceiling hanger bracket as shown in Fig. 5.
Step 2. Secure the hanger bracket to the ceiling outlet box with the
screws and washers provided with your outlet box.
Step 3. Remove three of the six screws and lock washers (every
other one) from the collar of top motor (Fig. 8)
Step 4. Place the ceiling canopy with decoration ring and the
gasket over the collar at the top of the motor. Align the mounting
holes with the holes in the motor and fasten using the screws and
lock washers provided. (Fig. 8)
Step 5. Tighten the mounting screws securely.
WARNING: Failure to completely tighten the three screws in step 5
could result in fan loosening and possibly falling.
Step 6. Hang the fan on the hook of the hanger bracket. Be certain
that the canopy is fully locked into hook as shown in Fig. 9. This will
allow you to make the electrical connections.
10
| KICHLER.COM

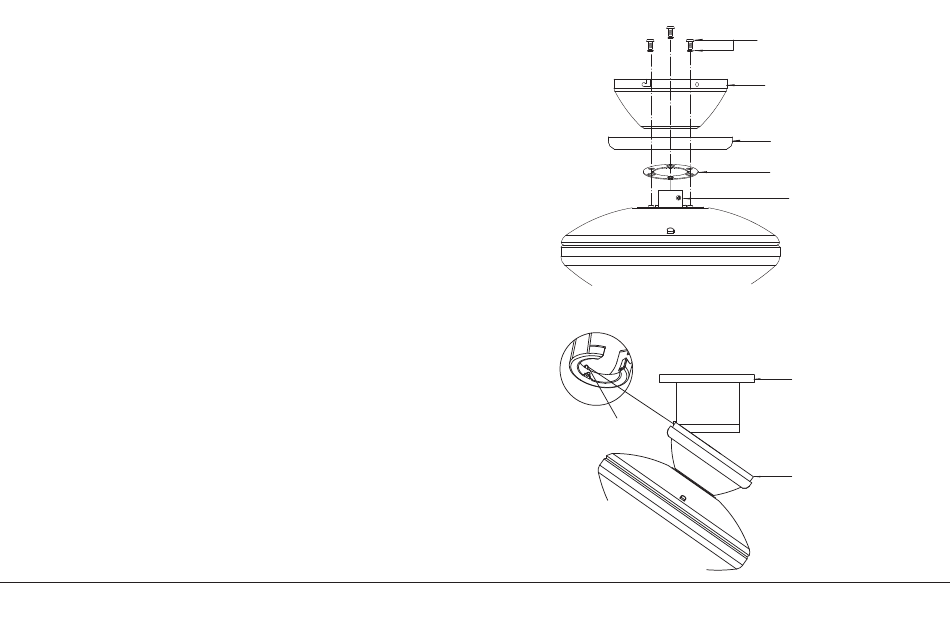

Screws and Lock
washers(3 of 6 places)
Canopy
Decoration ring
Gasket
Ceiling mounting
Hook
Collar
Fig. 8
bracket
Canopy
Fig. 9
