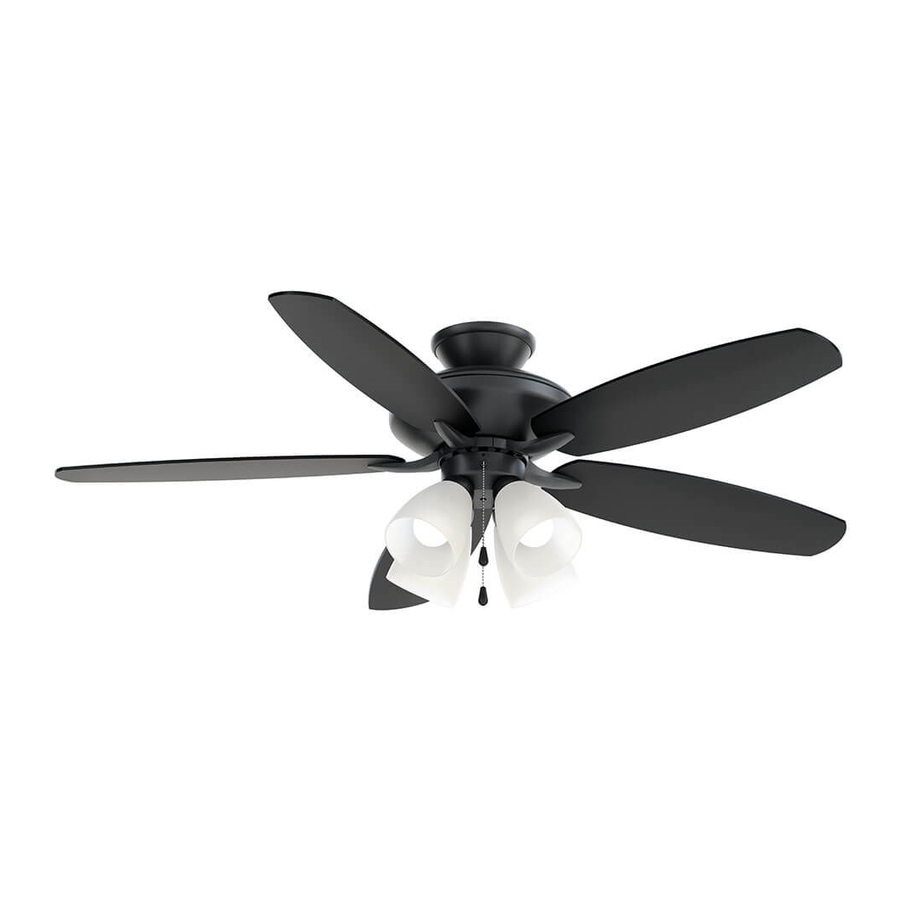

- Page 1 50” Renew Premier A Kichler Select ceiling fan ® ™ Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2. -
Page 3: Tools And Materials Required
50"Renew Premier 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Ceiling mountung bracket Canopy Ball/downrod assembly Fan motor assembly... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. -
Page 5: Hanging The Fan
50"Renew Premier 5. HANGING THE FAN Screws NOTE: This ceiling fan is supplied with two types of hanging assemblies; a downrod and Screws Ceiling mounting canopy mounting system and a "close to bracket ceiling" Canopy ONLY system. The "close-to- Canopy ceiling"... - Page 6 Step 3. Carefully feed the electrical lead wires from the fan up through the downrod. Thread the downrod into the coupling until the Hitch pin holes are aligned. Next, replace the hitch pin and retaining clip. Registration slot Tighten both set screws. (Fig. 7) Check tab Step 4.
-
Page 7: Installation Of Safety Support
50"Renew Premier 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling. Ceiling mounting Attach Step 1. Attach the provided wood screw and bracket safety cable to ceiling joist washers to the ceiling joist next to the with screw and... -
Page 8: Finishing The Installation
8. FINISHING THE INSTALLATION Outlet box STANTARD CEILING INSTALLATION STANTARD CEILING INSTALLATION Screws Step 1. Tuck all the connections neatly into the Ceiling mounting ceiling outlet box. bracket Screws Step 2. Slide the canopy up to ceiling and attach the canopy to the ceiling mounting bracket using 4 screws at the top edge of the Canopy mounting bracket. -
Page 9: Attaching The Fan Blades
50"Renew Premier 9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach a blade to a blade bracket using the screws and fiber washers provided. -
Page 10: Installing The Light Bulbs & Glass Shade
11. INSTALLING THE LIGHT BULBS & GLASS SHADE Step 1. Mount the glass shades to the light kit sockets by unscrewing partway the three light holder thumbscrews on each glass holder. Step 2. Insert the glass shades, then gently tighten the thumbscrews by hand evenly to the glass shades. - Page 11 50"Renew Premier 12. OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The pull chain controls the 3 speeds of your ceiling fan. 1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the motor off.
-
Page 12: Troubleshooting
13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy. 1. Make sure all motor housing screws are snug. 2.
