Kichler
®
Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Includes our new
CoolTouch
6 Speed DC Control System
TM
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Instruction Manual
Our High Efficiency DC Motor Technology
Requires 70% Less energy than a Standard
Ceiling Fan AC Induction Motor.

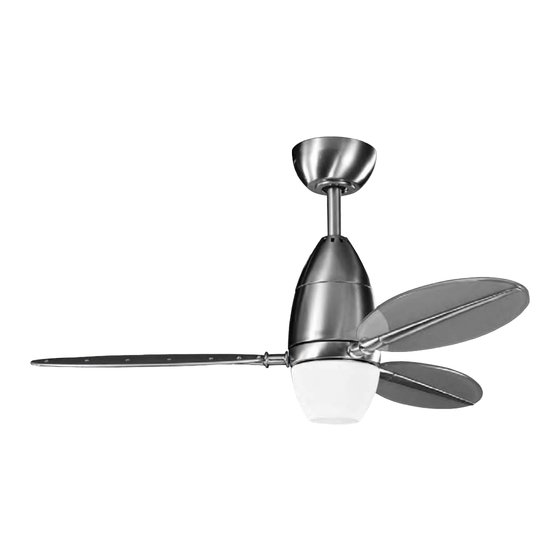

Riggs
TM
A Kichler
®
Décor
™
ceiling fan
HIGH
EFFICIENCY
DC
MOTOR
Advertisement
Table of Contents
Related Manuals for Kichler Lighting Riggs 300143
Summary of Contents for Kichler Lighting Riggs 300143
- Page 1 Riggs A Kichler ® Décor ™ ceiling fan Includes our new CoolTouch 6 Speed DC Control System HIGH EFFICIENCY Looks permanent, but goes wherever you go! U.S. Patent Pending MOTOR Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust electricity has been turned off at the circuit breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning. -
Page 3: Tools And Materials Required
Riggs 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (3) Canopy & Ceiling mounting bracket Ball/downrod assembly Coupling cover Fan motor assembly... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing ETL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and Outlet box building materials. -
Page 5: Hanging The Fan
Riggs 5. HANGING THE FAN REMEMBER to turn off the power before you Ceiling mounting bracket begin. To properly install your ceiling fan, follow the Canopy steps below. Step 1. Remove the decorative canopy bottom Canopy cover cover from the canopy by turning the cover Fig. - Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Cross pin Hanger ball Hanger ball Thread the hanger ball onto the downrod, Downrod insert the cross pin through the downrod and tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9.
-
Page 7: Installation Of Safety Support
Riggs 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please Ceiling mounting Attach install it as follows. bracket safety cable to ceiling joist Step 1. Attach the provided wood screw and with screw and washers to the ceiling joist next to the washer... -
Page 8: Finishing The Installation
8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Outlet box Ceiling Step 2. Slide the canopy up to the mounting mounting bracket and place one of the key hole slots bracket Screws over the mounting screw on the mounting bracket. -
Page 9: Attaching The Fan Blades
Riggs 9. ATTACHING THE FAN BLADES Step 1. Place the tube on the top of blade over the blade bracket, secure the blade to the blade bracket using the screws provided. (Fig.14) NOTE: Make sure the blade is straight and then tighten each screw and repeat the process for the remaining blades. - Page 10 11. INSTALLING THE SOCKET PLATE NOTE: Before continuing installation, confirm that the power is still turned off at the main circuit breaker or by removing the correct fuse. Turning the power off using a wall switch is not sufficient to prevent electrical shock. Step 1.
-
Page 11: Control System Set-Up
Riggs 13. CONTROL SYSTEM SET-UP Make sure the power is completely disconnected before you begin this procedure. SPECIAL NOTE: ® Your new Kichler Ceiling Fan is State of the Art and employs a High Efficiency DC (direct current) Motor with an advanced CoolTouch™ Remote Control System. - Page 12 2. Insert both batteries and make sure they Blue Light are seated correctly in each recess with the Positive + sign facing up. Replace the battery cover. (Figure 18) 3. Test the transmitter by pushing and releasing ANY button briefly. A Blue Light should illuminate under the 3-4 buttons.
- Page 13 Riggs 14. OPERATING INSTRUCTIONS: Speed Buttons Figure 22 1. Buttons 1, 2, 3, 4, 5 and 6 are used to set the blade speed as follows: 1 = Low Speed 2 = Medium Low Speed 3 = Medium Speed 4 = Medium High Speed 5 = High Speed 6 = Extra High Speed Figure 23...
- Page 14 NOTE: Please remember your control system is an RF (Radio Frequency) control system. You may occasionally experience control problems because of other radio frequency interference, i.e. fan turns off, light turns off or won't turn on, speed changes, etc. If this should happen, just change the “Control Frequency”...
-
Page 15: Installing The Cooltouch Control System Wall Plate
Riggs ™ 15. INSTALLING THE COOLTOUCH CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Wall plate Control System Transmitter. You can replace an existing wall switch or, install the transmitter on ANY flat surface. Option 1: Install the control system using an existing wall switch outlet box. -
Page 16: Troubleshooting
17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
