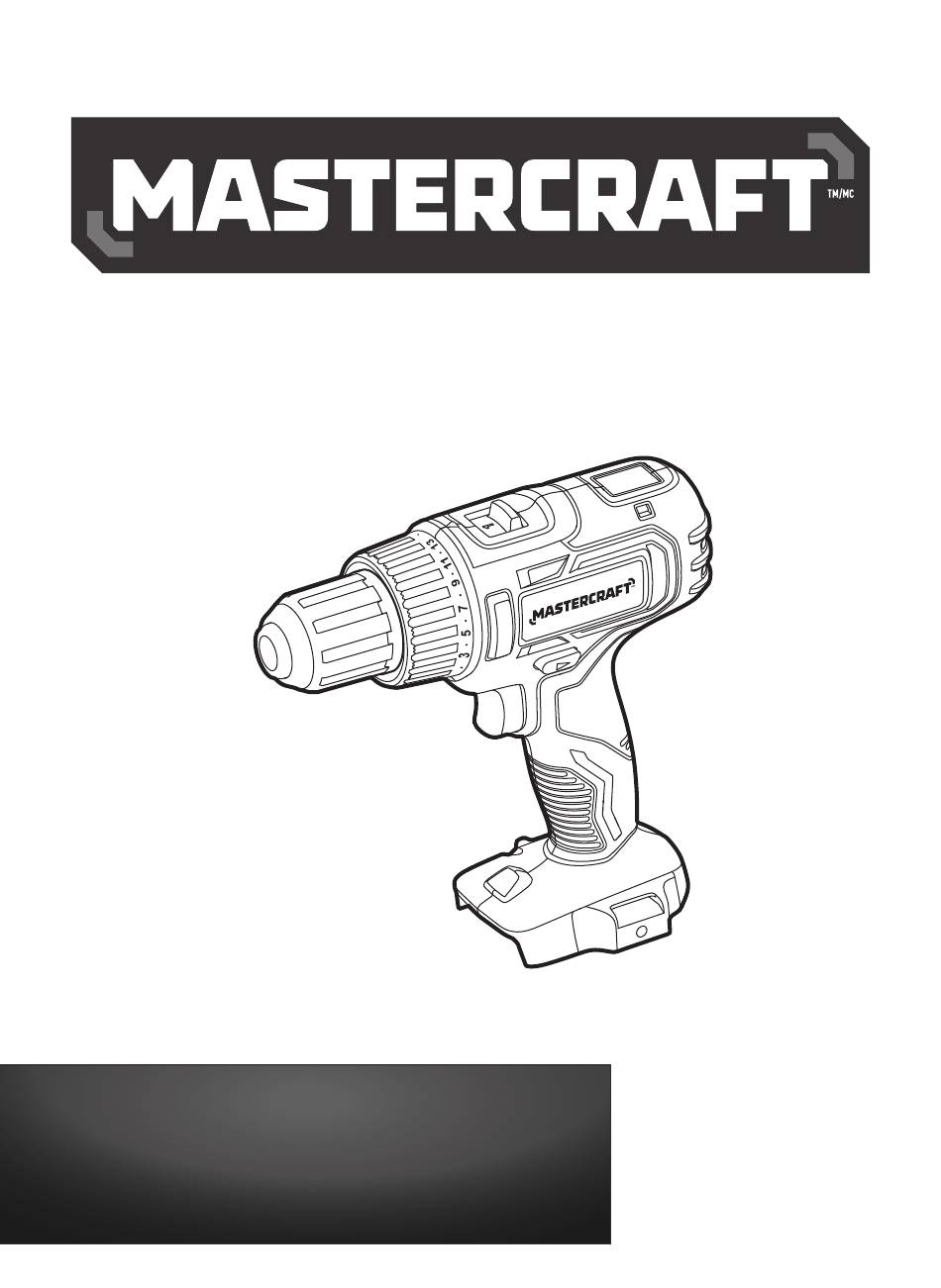

1/2" (13 MM) DRILL/DRIVER
IMPORTANT:
Read and understand this instruction manual
thoroughly before using the product.
054-7520-2
INSTRUCTION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 054-7520-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for MasterCraft 054-7520-2

  • Page 1 1/2” (13 MM) DRILL/DRIVER 054-7520-2 IMPORTANT: INSTRUCTION Read and understand this instruction manual MANUAL thoroughly before using the product.
  • Page 2 headline bars headline bars headline bars continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •...
  • Page 4: Technical Specifications

    054-7520-2 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Rated Voltage 20 V d.c. Chuck Capacity 1/2" (13 mm) No-load Speed 0-400 RPM / 0-1700 RPM Max. Torque 420 in-lb Clutch 24, including drill mode...
  • Page 5: Safety Guidelines

    SAFETY GUIDELINES: WARNING! Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures.
  • Page 6 054-7520-2 | contact us 1-800-689-9928 ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
  • Page 7 POWER TOOL USE AND CARE • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. • Do not use the power tool if the switch does not turn it on and off.
  • Page 8 054-7520-2 | contact us 1-800-689-9928 • Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
  • Page 9 • Wear ear protectors when using the drill/driver. Exposure to noise can cause hearing loss. • Use protective gloves when removing the bit from the tool, or first allow the bit to cool down. The bit may be hot after prolonged use. •...
  • Page 10 054-7520-2 | contact us 1-800-689-9928 WARNING! To reduce the risk of electric shock or damage to the charger and battery, use only the Mastercraft batteries and chargers listed.
  • Page 11: Key Parts Diagram

    PACKAGE CONTENTS: Cordless drill/driver, 2 screwdriver bits, 1 belt clip, 1 bit holder, and instruction manual KEY PARTS DIAGRAM Description Description Two-speed gearbox switch LED worklight Torque-adjustment ring Magnet Keyless chuck Direction-of-rotation selector Trigger switch Before attempting to use this tool, become familiar with all of its operating features and safety requirements.
  • Page 12: Operating Instructions

    Improper assembly of the battery pack can cause damage to internal components. WARNING! • Carefully read the Instruction Manuals for your Mastercraft Rechargeable Battery (054-3124-0, 054- ® 7553-4, 054-2434-8, 054-7557-6) and Mastercraft Battery Charger (054-3126-6, 054-7559-2) for safety ®...
  • Page 13 TURN THE TOOL ON/OFF (fig 2) fig 2 To turn the drill/driver ON, depress the variable- speed trigger switch. To turn it OFF, release the Variable-speed variable-speed trigger switch. trigger switch VARIABLE SPEED (fig 2) Direction- of-rotation The variable-speed trigger switch delivers higher selector speed with increased trigger pressure and lower speed with decreased trigger pressure.
  • Page 14 054-7520-2 | contact us 1-800-689-9928 LED WORKLIGHT (fig 4) fig 4 The LED worklight, located on the base of the cordless drill/driver, will illuminate when the trigger switch is depressed, and will automatically turn worklight off a while after the trigger switch is released.
  • Page 15 INSTALL THE BELT CLIP (fig 7 ) fig 7 1. Remove the battery from the tool. 2. Align the rib of the clip with the hole on the base of the drill/driver. Screw 3. Insert the screw (included) and tighten the screw securely with a screwdriver (not included).
  • Page 16 054-7520-2 | contact us 1-800-689-9928 MAGNET STORAGE ON TOP (fig 9) fig 9 The magnet on the top of the drill/driver allows for convenient placement of screws and bits. Magnet continuation tabs...
  • Page 17 INSTALLING A BIT (fig 11, 12) fig 11 1. Lock the trigger switch by placing the direction-of- rotation selector in the OFF (centre) position. 2. Rotate the chuck in the “RELEASE” direction to open RELEASE GRIP the jaws of the chuck. 3.
  • Page 18 054-7520-2 | contact us 1-800-689-9928 GENERAL DRILLING (fig 13) fig 13 1. Check the direction-of-rotation selector for the correct setting (forward or reverse). 2. Use a vise or clamps to secure the material to be drilled to keep it from turning as the drill bit rotates.
  • Page 19 DRILLING MODE OPERATION FOR DRILLING IN WOOD, USE TWIST BITS, SPADE BITS, POWER AUGER BITS OR HOLE SAWS. 1. When drilling “through” holes, place a block of wood behind the workpiece to prevent ragged or splintered edges on the back side of the hole. 2.
  • Page 20: Maintenance

    054-7520-2 | contact us 1-800-689-9928 MAINTENANCE BEFORE EACH USE: 1. Inspect the cordless drill/driver, the trigger switch, and the cord for damage. 2. Check for damaged, missing, or worn parts. 3. Check for loose screws, misalignment or binding of moving parts, or any other condition that may affect the operation.
  • Page 21: Troubleshooting

    TROUBLESHOOTING Problem Possible Causes Solution The cordless drill/driver The battery is depleted. Charge the battery. does not work. The chuck is not opened. Open the chuck. The bit cannot be installed. The bit does not fit the chuck. Use a suitable bit. Be sure cooling vents are free Clean and clear the vents.
  • Page 22 054-7520-2 | contact us 1-800-689-9928 EXPLODED VIEW continuation tabs continuation tabs continuation tabs notes notes notes No. Part No. Description No. Part No. Description warnings warnings warnings 5620488000 Screw (L.H.) 5620040000 Screw...
  • Page 23 This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;...
  • Page 24 054-7520-2 | contact us 1-800-689-9928 h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to, scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical cleaners;...
  • Page 25 IMPACT DRIVER 5742 IMPORTANT: INSTRUCTION Read and understand this instruction manual MANUAL thoroughly before using the product.
  • Page 26 headline bars headline bars headline bars continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings...
  • Page 27: Parts List

    TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •...
  • Page 28: Technical Specifications

    Tool Weight (without battery) 2 lb 10 oz (1.20 kg) *Maximum battery voltage without workload; with workload nominal voltage is 18V. Recommend using tool with Mastercraft® 20V max* Lithium-Ion 4.0 Ah battery (054-7557-6; sold separately) for optimal performance. notes notes...
  • Page 29: Safety Guidelines

    SAFETY GUIDELINES: WARNING! Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures.
  • Page 30 headline bars headline bars headline bars model no. 5742 | contact us 1-800-689-9928 ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
  • Page 31 POWER TOOL USE AND CARE • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. • Do not use the power tool if the switch does not turn it on and off.
  • Page 32 headline bars headline bars headline bars model no. 5742 | contact us 1-800-689-9928 • Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
  • Page 33 Release the trigger immediately when the screw is tightened to avoid breaking the screw. WARNING! To reduce the risk of electric shock or damage to the charger and battery, use only the Mastercraft batteries and chargers listed. ® BATTERY PACK...
  • Page 34: Key Parts Diagram

    headline bars headline bars headline bars model no. 5742 | contact us 1-800-689-9928 PACKAGE CONTENTS: Cordless impact driver, 1 belt clip, 1 bit holder, 2 single-ended screwdriver bits and instruction manual. KEY PARTS DIAGRAM continuation tabs continuation tabs continuation tabs notes notes notes...
  • Page 35: Operating Instructions

    OPERATING INSTRUCTIONS TO ATTACH BATTERY PACK (fig 1) fig 1 1. Lock the variable-speed trigger switch on the ATTACH impact driver by placing the direction-of-rotation selector (forward/ centre-lock/reverse) in the Battery-release centre position. button 2. Align the raised rib on the battery pack with the grooves of the impact driver, and then attach the battery pack to the impact driver.
  • Page 36 headline bars headline bars headline bars model no. 5742 | contact us 1-800-689-9928 INSTALL THE BIT HOLDER (fig 2) fig 2 1. Remove the battery from the tool. 2. Align the rib of the bit holder with the hole on the base of the cordless impact driver.
  • Page 37 TRIGGER SWITCH (fig 4) fig 4 1. To turn the impact driver ON, depress the variable-speed trigger switch. Variable-speed Direction-of- 2. To turn it OFF, release the variable-speed trigger trigger switch rotation selector switch. VARIABLE SPEED (fig 4) The variable-speed trigger switch delivers higher speed with increased trigger pressure and lower speed with decreased trigger pressure.
  • Page 38 headline bars headline bars headline bars model no. 5742 | contact us 1-800-689-9928 LED WORKLIGHTS (fig 6) fig 6 The LED worklights, located on both sides of the cordless impact driver, will illuminate when the variable-speed trigger switch is depressed, and will automatically turn off a short while after the variable-speed trigger switch is released.
  • Page 39 INSTALLING A DRIVER BIT OR SOCKET fig 8 BIT (fig 8) Sleeve 1. Lock the variable-speed trigger switch by placing the direction-of-rotation selector in the OFF (centre) position. 2. With one hand, pull the sleeve toward the front of the tool, and hold it in place. Hex Chuck 3.
  • Page 40 headline bars headline bars headline bars headline bars headline bars headline bars model no. 5742 | contact us 1-800-689-9928 TIGHTENING SCREWS OR NUTS (fig 9/fig 10) fig 9 1. Install the correct bit/socket. 2. Apply just enough pressure to keep the bit/ socket engaged on the screw or nut.
  • Page 41: Maintenance

    MAINTENANCE BEFORE EACH USE: 1. Inspect the cordless impact driver, the variable-speed trigger switch, and the battery pack for damage. 2. Check for damaged, missing, or worn parts. 3. Check for loose screws, misalignment or binding of moving parts, or any other condition that may affect the operation.
  • Page 42: Troubleshooting

    headline bars headline bars headline bars model no. 5742 | contact us 1-800-689-9928 TROUBLESHOOTING Problem Possible Causes Solution The impact driver does The battery is depleted. Charge the battery. not work. The sleeve is not released. Release the sleeve. The bit cannot be installed. The bit does not fit the Use a suitable bit.
  • Page 43 EXPLODED VIEW...
  • Page 44 headline bars headline bars headline bars headline bars headline bars headline bars model no. 5742 | contact us 1-800-689-9928 No. Part No. Description No. Part No. Description 5660035000 Circlips For Shaft 5700181000 Bearing 5650192000 Washer 3129802000 Rear Cover 3660177000 Spring 3706708000 Cover 3551835000 Bush 3680212000 Magnetic Shoe...
  • Page 45 This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;...
  • Page 46 The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. notes notes notes Made in China Imported by Mastercraft Canada Toronto, Canada M4S 2B8 warnings warnings warnings...
