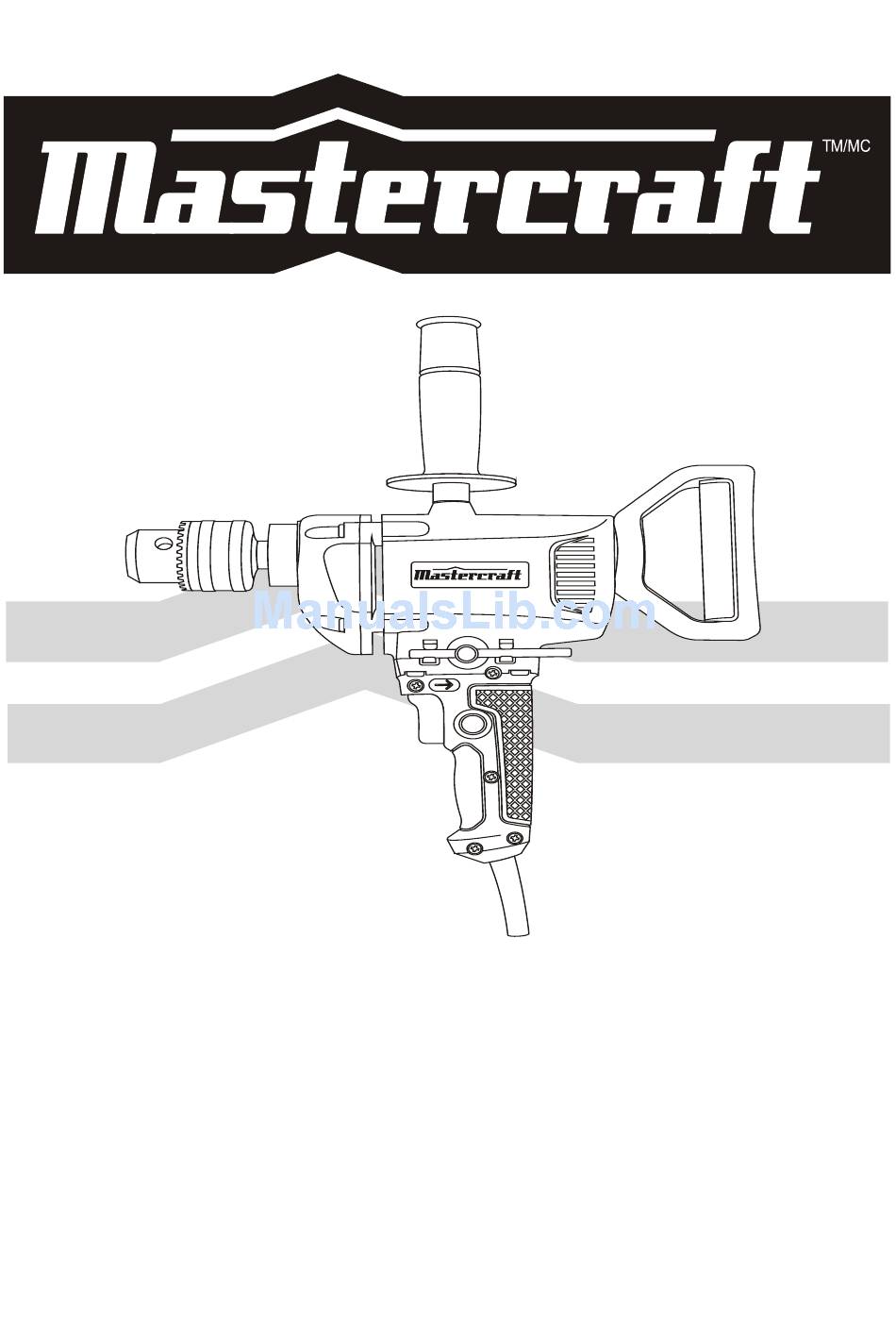

- Page 1 INSTRUCTION MANUAL LOW GEAR CORDED DRILL 054-1343-0...
- Page 2 This symbol indicates that this tool is listed by Underwriters Laboratories as meeting both Canadian and U.S. 61TN requirements. E213739 JD2155U LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0...
-
Page 3: General Safety Warnings
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT. SAVE THESE INSTRUCTIONS FOR REFERENCE LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0... -
Page 4: Electrical Safety
Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. SAVE THESE INSTRUCTIONS FOR REFERENCE SAVE THESE INSTRUCTIONS FOR REFERENCE LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0... - Page 5 Make sure there are no nails or foreign objects in the part of the workpiece to be drilled. SAVE THESE INSTRUCTIONS FOR REFERENCE SAVE THESE INSTRUCTIONS FOR REFERENCE LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0...
-
Page 6: Extension Cord Safety
MINIMUM GAUGE (AWG) EXTENSION CORDS (120 V use only) Amperage rating Total length More Not more 100' 150' than than (7.5 m) (15 m) (30 m) (45 m) Not Applicable LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0... - Page 7 ………. Wear your safety glasses Side assist handle Lock-on switch ……... Wear hearing protection Air vent Variable speed trigger switch Swivelling “D” handle Forward/reverse switch Chuck key Chuck LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0...
-
Page 8: Forward/Reverse Switch
NOTE: The drill will turn at its slowest speed when the trigger switch is depressed slightly. The drill will turn at its fastest speed when the trigger switch is fully depressed. LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0... -
Page 9: Removing Bits
Every time you use the drill you should verify the following: Chuck is tight. Workpiece is properly secured. Safety glasses are being worn. Failure to adhere to these safety rules can greatly increase the chances of injury. LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0... -
Page 10: Driving Screws
(fig. 9). breaking through material as you complete drilling the hole. If you are not prepared, this loss of control can result in possible serious injury. LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0... -
Page 11: Retightening A Loose Chuck
Open the chuck jaws and remove the hex not cross-threaded. Do NOT over tighten. key. Repeat steps 1 to 4 to replace the second carbon brush located on the opposite side of the motor housing. LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0... - Page 12 All of the bearings in this tool are lubricated with a sufficient amount of high-grade lubricant for the life of the unit under normal conditions. Therefore, no further lubrication is required. LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0...
- Page 13 This warranty will not apply to any product that was sold to the original purchaser as a recondi- tioned or refurbished product (unless specified otherwise in writing); 3.14E+09 Sealing ring 3.12E+09 Auxiliary handle LOW GEAR CORDED DRILL 054-1343-0 LOW GEAR CORDED DRILL 054-1343-0...
-
Page 14: Additional Limitations
Mastercraft is a superior line of products selected for their workmanship and materials. These products are designed to meet rigorous quality and performance standards, and are approved by our Quality Assurance laboratory.
