INSTRUCTION MANUAL
CORDED DRILL
054-1213-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 054-1213-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MasterCraft 054-1213-0

Summary of Contents for MasterCraft 054-1213-0

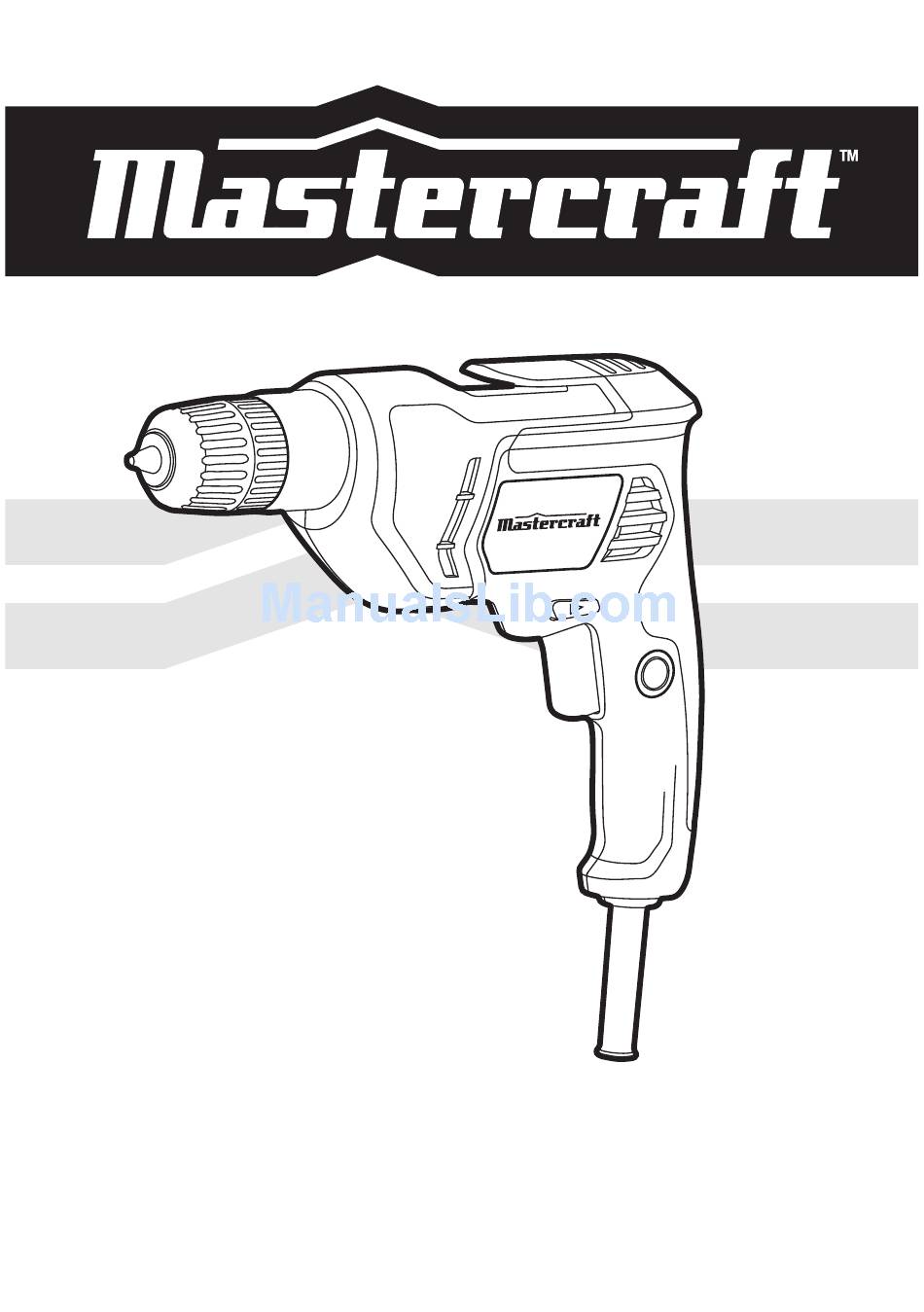

  • Page 1 INSTRUCTION MANUAL CORDED DRILL 054-1213-0...

  • Page 2: Troubleshooting

    Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included. CORDED DRILL - 054-1213-0 CORDED DRILL - 054-1213-0...
  • Page 3 Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. CORDED DRILL - 054-1213-0 CORDED DRILL - 054-1213-0...

  • Page 4: Work Area Safety

    CORDED DRILL - 054-1213-0 CORDED DRILL - 054-1213-0...

  • Page 5: Know Your Tool

    Corded drill and instruction manual. WARNING! Remove the drill from the package and examine it carefully. Do not discard the carton or any packaging material until all parts have been examined. CORDED DRILL - 054-1213-0 CORDED DRILL - 054-1213-0...

  • Page 6: Variable-Speed Trigger Switch

    WARNING! Never hold the collar by one hand and press the trigger to release/tighten the chuck which could cause serious personal injury. CORDED DRILL - 054-1213-0 CORDED DRILL - 054-1213-0...

  • Page 7: Drilling In Wood

    9. If the bit jams in the workpiece or if the drill stalls, stop the tool immediately. Reverse the direction of rotation and gently squeeze the trigger switch to remove the bit from the workpiece. Investigate and correct the cause of jamming before you resume work. CORDED DRILL - 054-1213-0 CORDED DRILL - 054-1213-0...

  • Page 8: Before Each Use

    Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind, and are easier to control. WARNING! To ensure safety and reliability, all repairs should be performed by a qualified service technician. CORDED DRILL - 054-1213-0 CORDED DRILL - 054-1213-0...
  • Page 9 5. Tap the hex key sharply with a mallet (not included) in a counterclockwise direction. This will loosen the chuck for easy removal. NOTICE: The chuck screw has left-handed threads. Attach a new chuck to the spindle and tighten the chuck screw. CORDED DRILL - 054-1213-0 CORDED DRILL - 054-1213-0...

  • Page 10: Exploded View

    27 541213027 Cable & Plug 13 541213013 Brush Holder Box 28 541213028 Screw 14 541213014 Copper Brush Holder 29 541213029 Right Housing 15 541213015 Carbon Brush 30 541213030 Left Housing If the problem remains unsolved after performing the checks described above, call the toll- free helpline at 1-800-689-9928. CORDED DRILL - 054-1213-0 CORDED DRILL - 054-1213-0...

  • Page 11: Additional Limitations

    These warranties are subject to the following conditions and IMPORTED BY MASTERCRAFT CANADA TORONTO, CANADA M4S 2B8 limitations: a) a bill of sale verifying the purchase and purchase date must be provided;...
