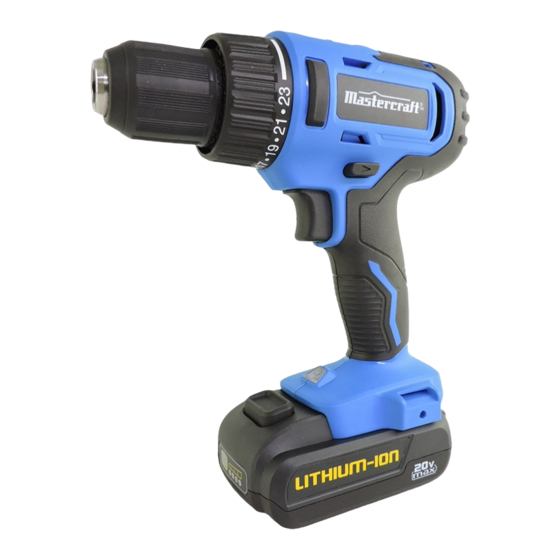

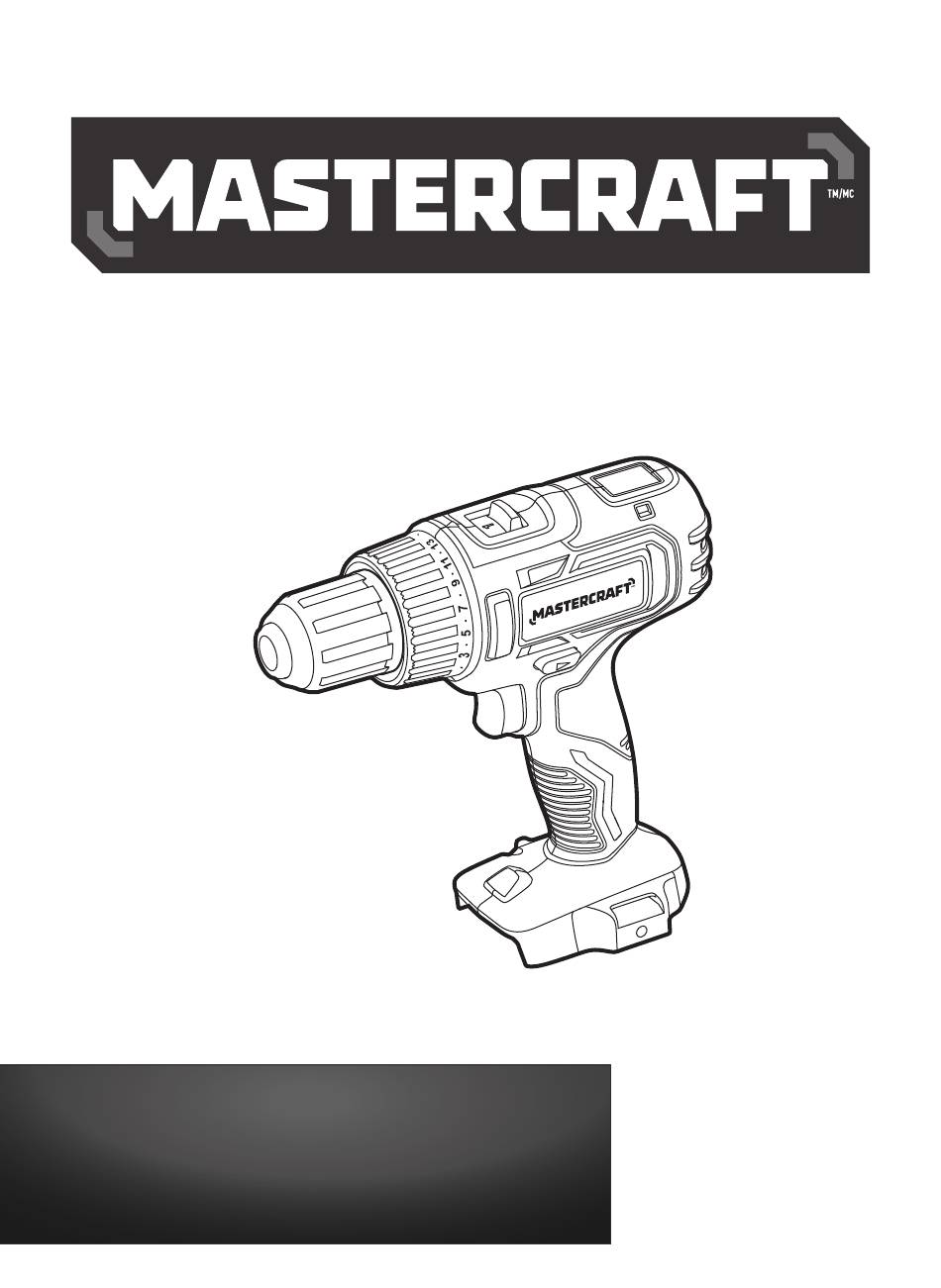

- Page 1 1/2” (13 MM) DRILL/DRIVER 054-7520-2 IMPORTANT: INSTRUCTION Read and understand this instruction manual MANUAL thoroughly before using the product.
- Page 2 headline bars headline bars headline bars continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •... -
Page 4: Technical Specifications
054-7520-2 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Rated Voltage 20 V d.c. Chuck Capacity 1/2" (13 mm) No-load Speed 0-400 RPM / 0-1700 RPM Max. Torque 420 in-lb Clutch 24, including drill mode... -
Page 5: Safety Guidelines
SAFETY GUIDELINES: WARNING! Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures. - Page 6 054-7520-2 | contact us 1-800-689-9928 ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Page 7 POWER TOOL USE AND CARE • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. • Do not use the power tool if the switch does not turn it on and off.
- Page 8 054-7520-2 | contact us 1-800-689-9928 • Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
- Page 9 • Wear ear protectors when using the drill/driver. Exposure to noise can cause hearing loss. • Use protective gloves when removing the bit from the tool, or first allow the bit to cool down. The bit may be hot after prolonged use. •...
- Page 10 054-7520-2 | contact us 1-800-689-9928 WARNING! To reduce the risk of electric shock or damage to the charger and battery, use only the Mastercraft batteries and chargers listed.
-
Page 11: Key Parts Diagram
PACKAGE CONTENTS: Cordless drill/driver, 2 screwdriver bits, 1 belt clip, 1 bit holder, and instruction manual KEY PARTS DIAGRAM Description Description Two-speed gearbox switch LED worklight Torque-adjustment ring Magnet Keyless chuck Direction-of-rotation selector Trigger switch Before attempting to use this tool, become familiar with all of its operating features and safety requirements. -
Page 12: Operating Instructions
Improper assembly of the battery pack can cause damage to internal components. WARNING! • Carefully read the Instruction Manuals for your Mastercraft Rechargeable Battery (054-3124-0, 054- ® 7553-4, 054-2434-8, 054-7557-6) and Mastercraft Battery Charger (054-3126-6, 054-7559-2) for safety ®... - Page 13 TURN THE TOOL ON/OFF (fig 2) fig 2 To turn the drill/driver ON, depress the variable- speed trigger switch. To turn it OFF, release the Variable-speed variable-speed trigger switch. trigger switch VARIABLE SPEED (fig 2) Direction- of-rotation The variable-speed trigger switch delivers higher selector speed with increased trigger pressure and lower speed with decreased trigger pressure.
- Page 14 054-7520-2 | contact us 1-800-689-9928 LED WORKLIGHT (fig 4) fig 4 The LED worklight, located on the base of the cordless drill/driver, will illuminate when the trigger switch is depressed, and will automatically turn worklight off a while after the trigger switch is released.
- Page 15 INSTALL THE BELT CLIP (fig 7 ) fig 7 1. Remove the battery from the tool. 2. Align the rib of the clip with the hole on the base of the drill/driver. Screw 3. Insert the screw (included) and tighten the screw securely with a screwdriver (not included).
- Page 16 054-7520-2 | contact us 1-800-689-9928 MAGNET STORAGE ON TOP (fig 9) fig 9 The magnet on the top of the drill/driver allows for convenient placement of screws and bits. Magnet continuation tabs...
- Page 17 INSTALLING A BIT (fig 11, 12) fig 11 1. Lock the trigger switch by placing the direction-of- rotation selector in the OFF (centre) position. 2. Rotate the chuck in the “RELEASE” direction to open RELEASE GRIP the jaws of the chuck. 3.
- Page 18 054-7520-2 | contact us 1-800-689-9928 GENERAL DRILLING (fig 13) fig 13 1. Check the direction-of-rotation selector for the correct setting (forward or reverse). 2. Use a vise or clamps to secure the material to be drilled to keep it from turning as the drill bit rotates.
- Page 19 DRILLING MODE OPERATION FOR DRILLING IN WOOD, USE TWIST BITS, SPADE BITS, POWER AUGER BITS OR HOLE SAWS. 1. When drilling “through” holes, place a block of wood behind the workpiece to prevent ragged or splintered edges on the back side of the hole. 2.
-
Page 20: Maintenance
054-7520-2 | contact us 1-800-689-9928 MAINTENANCE BEFORE EACH USE: 1. Inspect the cordless drill/driver, the trigger switch, and the cord for damage. 2. Check for damaged, missing, or worn parts. 3. Check for loose screws, misalignment or binding of moving parts, or any other condition that may affect the operation. -
Page 21: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Solution The cordless drill/driver The battery is depleted. Charge the battery. does not work. The chuck is not opened. Open the chuck. The bit cannot be installed. The bit does not fit the chuck. Use a suitable bit. Be sure cooling vents are free Clean and clear the vents. -
Page 22: Parts List
054-7520-2 | contact us 1-800-689-9928 EXPLODED VIEW continuation tabs continuation tabs continuation tabs notes notes notes No. Part No. Description No. Part No. Description warnings warnings warnings 5620488000 Screw (L.H.) 5620040000 Screw... -
Page 23: Warranty
This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;... - Page 24 054-7520-2 | contact us 1-800-689-9928 h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to, scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical cleaners;...
