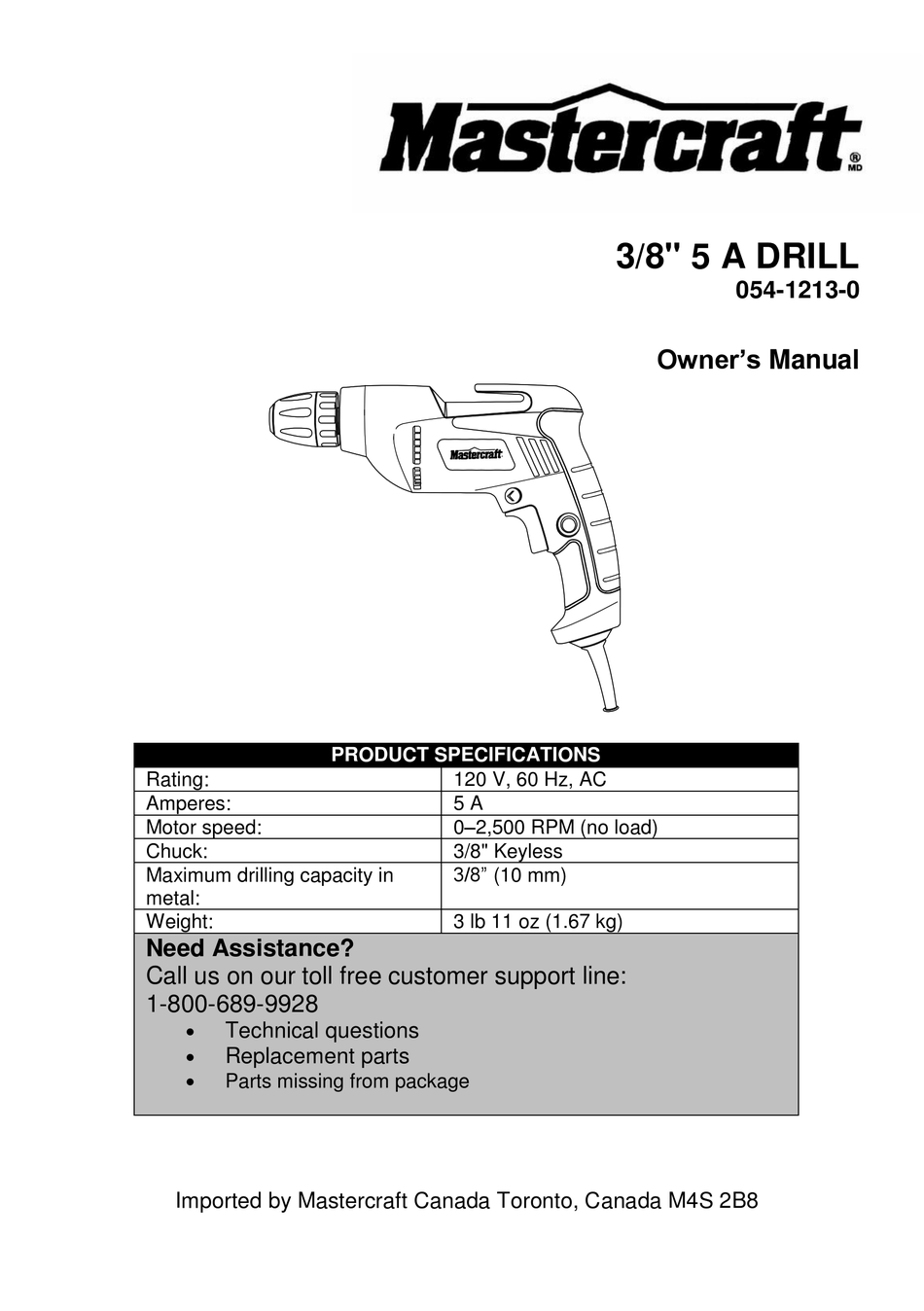

PRODUCT SPECIFICATIONS

120 V, 60 Hz, AC
5 A
0–2,500 RPM (no load)
3/8" Keyless
3/8" (10 mm)
3 lb 11 oz (1.67 kg)
3/8" 5 A DRILL
054-1213-0
Owner's Manual
