IMPORTANT:

Read and understand this instruction manual

thoroughly before using the product.

3-IN-1 DRILL/DRIVER

054-7527-8

INSTRUCTION

MANUAL

Table of Contents

Need help?

Do you have a question about the 5296 and is the answer not in the manual?

Questions and answers

Summary of Contents for MasterCraft 5296

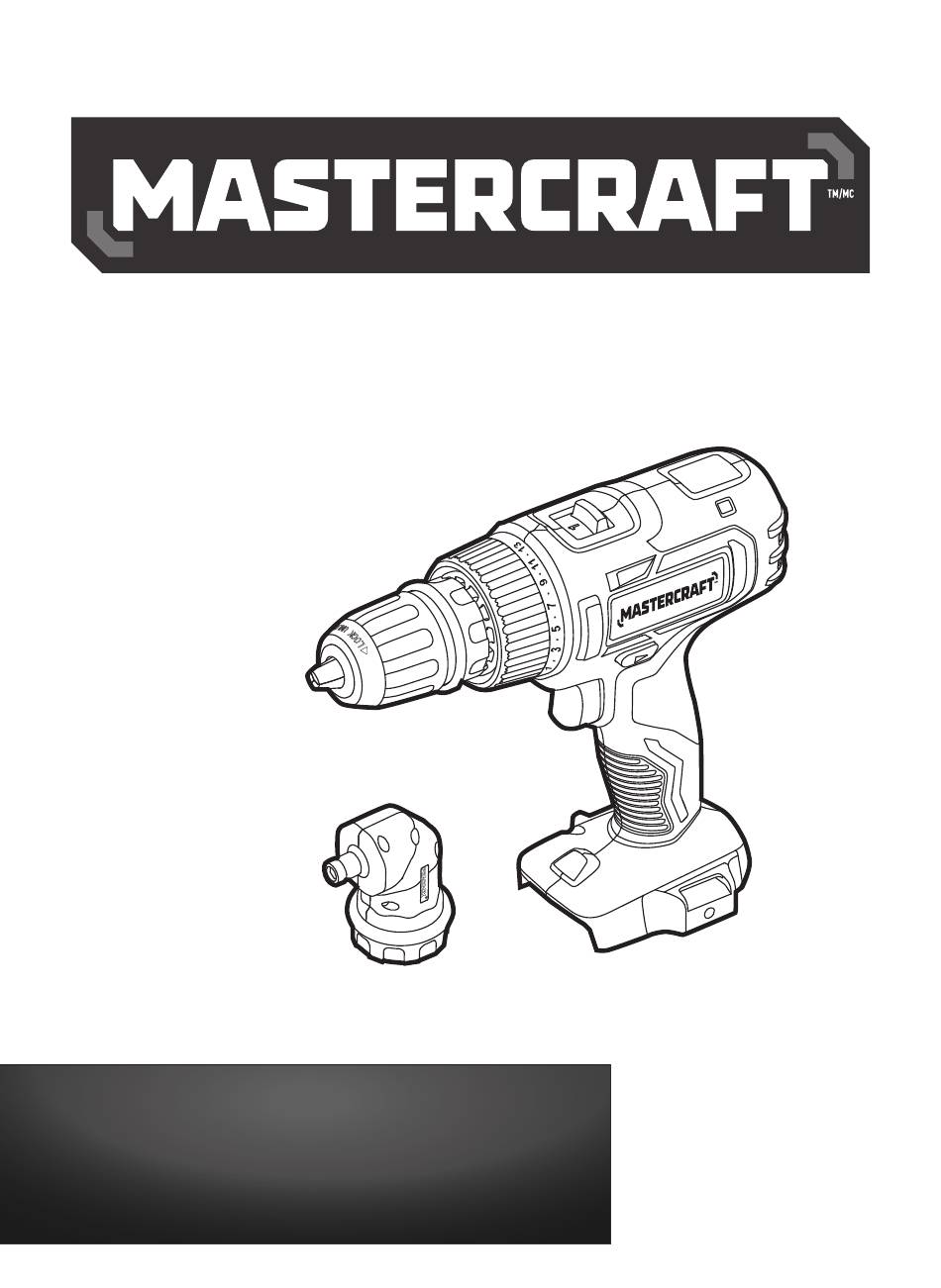

Page 1 3-IN-1 DRILL/DRIVER 054-7527-8 IMPORTANT: INSTRUCTION Read and understand this instruction manual MANUAL thoroughly before using the product.
Page 2 headline bars headline bars headline bars continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings...
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •...
Page 4: Technical Specifications
headline bars headline bars headline bars model no. 054-7527-8 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Rated Voltage 20 V d.c. No-load Speed 0-400 RPM / 0-1700 RPM Max. Torque 350 in-lb Clutch 24, including drill mode 1/2” (13 mm) drill chuck continuation tabs continuation tabs continuation tabs...
Page 5: Safety Guidelines
SAFETY GUIDELINES: WARNING! Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures.
Page 6 headline bars headline bars headline bars model no. 054-7527-8 | contact us 1-800-689-9928 ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
Page 7 POWER TOOL USE AND CARE • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. • Do not use the power tool if the switch does not turn it on and off.
Page 8 headline bars headline bars headline bars model no. 054-7527-8 | contact us 1-800-689-9928 • Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. •...
Page 9 Release the trigger immediately when a screw is tightened to avoid breaking the screw. WARNING! To reduce the risk of electric shock or damage to the charger and battery, use only the Mastercraft batteries and chargers listed. ® BATTERY PACK...
Page 10 headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-7527-8 | contact us 1-800-689-9928 or d.c....Direct current n 0 ....No-load speed ....Class II Construction …/min ... Revolutions or reciprocation per minute ....
Page 11: Key Parts Diagram
PACKAGE CONTENTS: Cordless drill/driver, 1/2” (13 mm) drill chuck, 1/4” (6.4 mm) hex-drive right-angle adaptor, 1 belt clip, 1 bit holder, 2 single-ended screwdriver bits and instruction manual. KEY PARTS DIAGRAM Description Description Two-speed gearbox switch Magnet Torque-adjustment ring Direction-of-rotation selector Keyless chuck LED worklight Variable-speed trigger switch...
Page 12: Operating Instructions
Improper assembly of the battery pack can cause damage to internal components. WARNING! • Carefully read the Instruction Manuals for your Mastercraft ® Rechargeable Battery (054-3124-0, 054-7553-4, 054-2434-8, 054-7557-6) and Mastercraft Battery Charger (054-3126-6, 054-7559-2) for safety and operation ®...
Page 13 INSTALL THE DRILL CHUCK (fig 2) fig 2 1. Set the direction-of-rotation selector in the OFF Unlocking (centre) positon. ring 2. Pull the unlocking ring forward (1) and press the drill chuck all the way onto the hex chuck of the drill/driver (2).
Page 14 headline bars headline bars headline bars model no. 054-7527-8 | contact us 1-800-689-9928 INSTALL THE BIT HOLDER (fig 4) fig 4 1. Remove the battery from the tool. 2. Align the rib of the bit holder with the hole on the base of the cordless drill/driver.
Page 15 DIRECTION-OF-ROTATION SELECTOR fig 7 (FORWARD/CENTRE-LOCK/REVERSE) (fig 7) The direction of rotation of the bit is reversible and is controlled with a selector located above the variable- speed trigger switch. With the cordless drill/driver held in normal operating position: Forward Reverse Position the direction-of-rotation selector to the left of the tool for forward rotation.
Page 16 headline bars headline bars headline bars model no. 054-7527-8 | contact us 1-800-689-9928 ADJUSTABLE TORQUE CLUTCH (fig 9) fig 9 Torque-adjustment ring The torque clutch can be adjusted to any of 24 different settings (23 driving and 1 drilling). The higher the torque setting, the more force the cordless drill/driver produces to turn an object in either low or high rotation speed.
Page 17 LED WORKLIGHT (fig 10) fig 10 The LED worklight, located on the base of the cordless drill/driver, will illuminate when the variable-speed trigger switch is depressed, and worklight will automatically turn off for a brief while after the variable-speed trigger switch is released. This provides additional light on the surface of the workpiece for operation in lower light situations.
Page 18 headline bars headline bars headline bars model no. 054-7527-8 | contact us 1-800-689-9928 INSTALL A BIT INTO DRILL CHUCK (fig 12) fig 12 1. Lock the variable-speed trigger switch by placing LOCK UNLOCK the direction-of-rotation selector in the OFF (centre) position. 2.
Page 19 INSTALL A BIT INTO THE RIGHT-ANGLE fig 13 Install ADAPTOR (fig 13) 1. Lock the variable-speed trigger switch by placing the direction-of-rotation selector in the OFF (centre) position. Remove 2. Insert a suitable bit into the hex chuck on the right-angle adaptor as far as it will go.
Page 20 headline bars headline bars headline bars model no. 054-7527-8 | contact us 1-800-689-9928 GENERAL DRILLING (fig 15) fig 15 1. Check the direction-of-rotation selector for the correct setting (forward or reverse). 2. Use a vise or clamps to secure the material to be drilled to keep it from turning as the drill bit rotates.
Page 21 DRILLING MODE OPERATION FOR DRILLING IN WOOD 1. When drilling “through” holes, place a block of wood behind the workpiece to prevent ragged or splintered edges on the back side of the hole. 2. Select the desired speed to match the planned operation. 3.
Page 22: Maintenance
headline bars headline bars headline bars model no. 054-7527-8 | contact us 1-800-689-9928 MAINTENANCE BEFORE EACH USE: 1. Inspect the cordless drill/driver, the trigger switch, and the cord for damage. 2. Check for damaged, missing, or worn parts. 3. Check for loose screws, misalignment or variable-speed binding of moving parts, or any other conditions that may affect the operation.
Page 23: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Solution The cordless drill/driver The battery is depleted. Charge the battery. does not work. 1. The chuck is not opened. 1. Open the chuck. The bit cannot be installed. 2. The bit does not fit the 2.
Page 24: Parts List
headline bars headline bars headline bars model no. 054-7527-8 | contact us 1-800-689-9928 EXPLODED VIEW continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings No. Part No. Description No. Part No. Description 3860142000 Chuck 5630231000 Nut 2790461000 Gear Case Assembly 2830352000 Electric Assembly 3127732000 F/R Button 3126500000 LED Cover...
Page 25: Warranty
This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;...
Page 26 The provisions contained in this warranty are not intended to limit, modify, take notes away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. Made in China Imported by Mastercraft Canada Toronto, Canada M4S 2B8 warnings...
