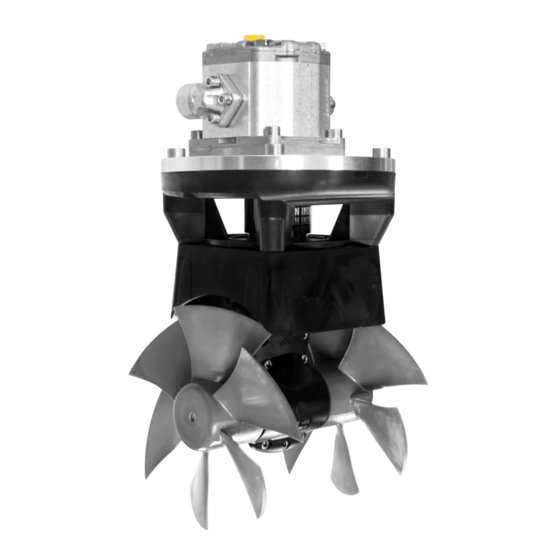

Manual Max Power Series 125HYD
Hydraulic Tunnel Thruster
Series 125 HYD
INSTALLATION
THIS MANUAL MUST BE KEPT ON BOARD AT ALL TIMES
Via Philips 5, 20900 Monza (MI), Italy
Tel. +39 039 200 1973-936 - Fax +39 039 2004299
www.max-power.com
With Electronic Controller
OPERATION
Serial N° : ----------------------------------------------------
Date of Installation : ----------------------------------------
E-mail:contact@max-power.com
Last Update: December 2016
MAINTENANCE
Advertisement
Table of Contents
Related Manuals for MAX power 125 HYD Series
Summary of Contents for MAX power 125 HYD Series
- Page 1 Manual Max Power Series 125HYD Last Update: December 2016 Hydraulic Tunnel Thruster Series 125 HYD With Electronic Controller INSTALLATION OPERATION MAINTENANCE Serial N° : ---------------------------------------------------- Date of Installation : ---------------------------------------- THIS MANUAL MUST BE KEPT ON BOARD AT ALL TIMES Via Philips 5, 20900 Monza (MI), Italy Tel.
-
Page 2: Table Of Contents
Manual Max Power Series 125HYD Last Update: December 2016 To ensure a proper installation, correct usage and long-lasting enjoyment of this equipment, please take time to read this manual thoroughly. Table of Contents Number Description Page General Installation Guidlines Tunnel Propeller Drive Leg &... -
Page 3: General Installation Guidlines
Manual Max Power Series 125HYD Last Update: December 2016 GENERAL INSTALLATION GUIDLINES Decide on the best location for the SUPER POWER. (See drawing: “Positioning & Measurements” at back of manual) The tunnel must be as low as possible and as far forward as possible. -
Page 4: Propeller Drive Leg & Motor Support
Manual Max Power Series 125HYD Last Update: December 2016 CAUTION: Do not fibre glass the area of the motor support. It is recommended to lightly sand down the area where the motor support is fitted. On the outside, when the ISOPHTALIQUE RESIN has set, finish with an application of resin and material, followed with an additional coat on the hull, in the tunnel area. -
Page 5: The Hydraulic Motor And Its Adapter
Manual Max Power Series 125HYD Last Update: December 2016 THE HYDRAULIC MOTOR AND ITS ADAPTER Do not separate the motor from its adapter. Insert the lower metal coupling on the greased leg shaft. Fit the flexible coupling, then the motor and its adapter, tighten the screws (∅ 10mm) to a torque of 40 Nm. -
Page 6: Hydraulic Specifications
Manual Max Power Series 125HYD Last Update: December 2016 The pump can be driven by either an internal combustion engine (crankshaft pulley or gearbox PTO) or an electric motor. Depending on the speed and choice of drive, but should always comply with the rated pressure/flow of the thruster. -
Page 7: Hydraulic Custom Pack
M10 = 5/8’’ M12 = 3/4’’ M16 = 1’’ INTAKE DIAMETERS of standard hydraulic elements MAX POWER: 1 / 2 / 11 = Female BSP 3/4'' 3 / 6 / 7 / 8 / 9 = Female BSP 1/2'', 4 / 5 = Female BSP 3/8''... -
Page 8: Maintenance
Manual Max Power Series 125HYD Last Update: December 2016 MAINTENANCE In order to ensure peak performance from your SUPER POWER, the tunnel, the leg and the propellers must be kept clean. IMPORTANT: In order to prevent chalky deposits, which cause damage to the oil seals, we recommend cleaning the shaft and the oil seals first, then applying a layer of silicon oil before assembling the propellers. -
Page 9: Spare Parts List
Manual Max Power Series 125HYD Last Update: December 2016 Installation Notes... -
Page 10: Spare Part Diagram
Manual Max Power Series 125HYD Last Update: December 2016... -
Page 11: Control System Connections: Electro-Hydraulic Pump
Manual Max Power Series 125HYD Last Update: December 2016 MAX POWER 125 HYD... -
Page 12: Control System Connections: Motor With Clutched Pto
Manual Max Power Series 125HYD Last Update: December 2016... -
Page 13: Super Power Hydraulic Diagram
Manual Max Power Series 125HYD Last Update: December 2016... - Page 14 Manual Max Power Series 125HYD Last Update: December 2016...
-
Page 15: Positioning And Measurements
Manual Max Power Series 125HYD Last Update: December 2016 Super Power Hydraulic: Positioning and Measurements Model Dim (mm) E Ideal E Mini Weight 9 Kg 12 Kg 20 Kg... -
Page 16: Warranty Procedures
The purpose of this document is to set out the terms of warranty cover offered in relation to products purchased by the End User from Max Power or its approved network of resellers. This document will adhere to the following format: -... - Page 17 PRIOR TO CONTACTING THE DEALER/INSTALLER Contact your dealer/installer to report the problem. a. If you do not know who this is contact the nearest Max Power distributor b. If you are in foreign waters please contact the nearest Max Power distributor...
-
Page 18: List Of Distributors
Manual Max Power Series 125HYD Last Update: December 2016 DISTRIBUTER CONTACT LIST: SOUTHERN EUROPE: CYPRUS CYPRUS OCEAN MARINE EQUIPMENT LTD TUTI MARE TRADING Limassol Limassol Tel: + 357 53 69 731 Tel: + 357 25 431 313 Fax: + 357 53 52 976... - Page 19 Manual Max Power Series 125HYD Last Update: December 2016 U.K. PLASTIMO UK AR PEACHMENT Eastleigh, Hampshire Norfolk Tel: + 44 870 751 4666 Tel: + 44 1603 714 077 Fax: + 44 870 751 1950 Fax: + 44 1603 714 211 Email: sales@plastimo.co.uk...
- Page 20 WARRANTY FORM VERY IMPORTANT Please complete this form and fax a copy to Max Power with a copy of the installation invoice or the invoice of the yacht/boat in order for the warranty to come into effect. To Be Completed by Owner: Name of Owner:…………………………….
