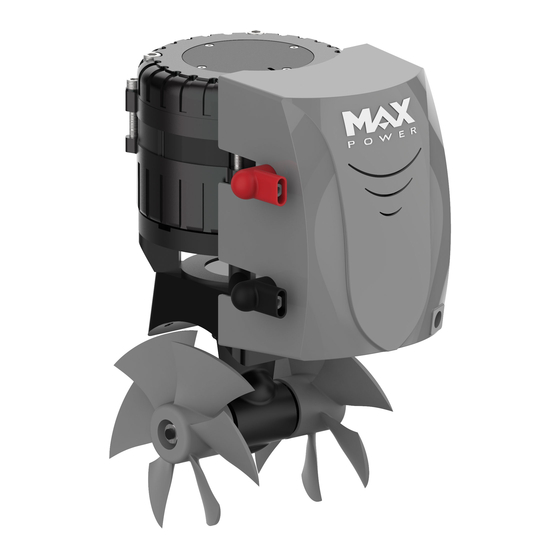

- Page 1 PROPORTIONAL SERIES 90 / 110 / 130 MANUAL FOR INSTALLATION, OPERATION & MAINTENANCE Serial No.: ---------------------------------------------------------- Installation date: ------------------------------------------------- THIS MANUAL MUST BE KEPT ON BOARD AT ALL TIMES ENGLISH • VERSION 2...
-
Page 2: Table Of Contents
Windage, the hull displacement, and the shape of the underwater section. Failure to follow the considerations and precautions advised in this manual can cause serious injury, damage and will render all warranties given by Max Power as VOID. -
Page 3: General Installation Guidelines
1. GENERAL INSTALLATION GUIDELINES In order to install the thruster in the most efficient position, follow the instructions below: • The minimum acceptable tunnel position is 139 mm below the waterline. • The tunnel is ideally positioned when the distance between the waterline and the top of the installed tunnel is at least 185 mm. •... -
Page 4: Composite Motor Support And Drive Leg
Manual for Installation, Operation & Maintenance / ECO PROPORTIONAL Series 90 / 110 / 130 Replace the tunnel. To secure its position apply reinforced fiberglass filler to all areas, both inside and out, taking care to entirely fill the space between the hull and the tunnel. -
Page 5: Electric Motor (24V / 48V)
4. ELECTRIC MOTOR (24V / 48V) Before the installation process begins, please make sure that no power is supplied to the thruster. The upper coupling (motor side) is adjusted in the factory. Position the lower shouldered coupling on the drive leg shaft and push it down as far as it will go (lightly grease the shaft beforehand). Place the flexible coupler on the drive leg side coupling, (part #4 on the Eco –... -
Page 6: Main Power Fuse
Fuse sizes for over current and short circuit protection must be determined on the basis of the cable sections in the circuit and NOT based the amperage drawn by the appliance (thruster motor) in the circuit. Brushless series require approximately 5% less current in relation to the equivalent Max Power brushed models:... -
Page 7: Batteries
Max Power advises the use of a separate manual isolator for additional protection. 11. CAN JOYSTICK FUNCTIONS... -
Page 8: Can-Joystick Installation & App Configuration
== 0.4 Nm Max Power has developed along with our partners an app, which allows the user to monitor the main operation values of the thruster such as battery voltage, battery current, motor temperature, motor speed through the Android OS smartphone with OS version 8 and above. The smartphone is connected to the thruster via the Bluetooth of the CAN-Joystick. -
Page 9: Tests
To connect the Android smartphone to the CAN-Joystick, please follow the steps below: 1. Download and install the free app from Google store: 2. Provide the Bluetooth and Location permissions requested by the app, this will ensure that the app will operate without a problem. -
Page 10: Operation
Manual for Installation, Operation & Maintenance / ECO PROPORTIONAL Series 90 / 110 / 130 The cumulative effect of voltage drops at these points can severely impair the thruster’s performance. Should the voltage measured be too low, the following points need checking: Are the batteries of sufficient capacity? -
Page 11: Power Supply Diagram
19. Power supply diagram ECO PRO 90 – 110 (24V): The integrated mega-fuse located under the plastic cover is meant for the protection of the motor and controller, for the protection of the cables a different fuse must be installed near the positive terminal of the battery (see pages 6 and 7). To connect the CAN bus cables the insertion guides must match first in order to tighten the safety: ECO PRO 130 (48V): The integrated mega-fuse located under the plastic cover is meant for the protection of the motor and controller, for the protection of the cables a different fuse must be installed near the positive terminal of the battery (see pages 6 and 7). -
Page 12: Spare Part Diagram
Manual for Installation, Operation & Maintenance / ECO PROPORTIONAL Series 90 / 110 / 130 20. SPARE PARTS DIAGRAM ECO – PRO 90, 110 & 130 www.max-power.com English • Version 2... -
Page 13: Spare Parts List
636576 Fuse 300A Eco 90 – 110 Fuse 200A Eco 130 22. TROUBLESHOOTING GUIDE Before contacting your nearest Max Power service station, please check the below troubleshooting guide and our online trouble shooting videos: https://www.max-power.com/troubleshooting Problem Check • Check that the CAN cable behind the joystick is connected, perform the same check for the connection on the thruster. -
Page 14: Warranty Coverage
Introduction The purpose of this document is to set out the terms of warranty cover offered in relation to products purchased by the End User from Max Power or its approved network of resellers. This document will adhere to the following format:... -
Page 15: Warranty Form
25. WARANTY FORM Serial No.: VERY IMPORTANT: Please complete this form and email a COPY to Max Power with a copy of the installation invoice or the invoice of the yacht/vessel in order for the warranty to come into effect. - Page 16 Via Philips 5, 20900 Monza (MI), Italy Tel. +39 039 200 1973-936 - Fax +39 039 2004299 E-mail:contact@max-power.com www.max-power.com...
