KNX – DALI

Intesis

6.2.4 Signals

All available registers, its corresponding description and other main parmaters are listed in the signals tab.

When the configuration is finished, follow the steps to program the gateway.

1.- Click on Save button to save the project to the project folder on your hard disk (more information in

Intesis MAPS User Manual).

2.- You will be prompted to generate the configuration file to be sent to the gateway.

a.- If Yes is selected, the file containing the configuration for the gateway will be generated and

saved also into the project folder.

b.- If NO is selected, remember that the binary file with the project needs to be generated before

the Intesis starts to work as expected.

3.- Press the Send File button to send the binary file to the Intesis device. The process of file transmission

can be monitored in the Intesis Communication Console window. Intesis will reboot automatically once the

new configuration is loaded.

This information is subject to change without notice

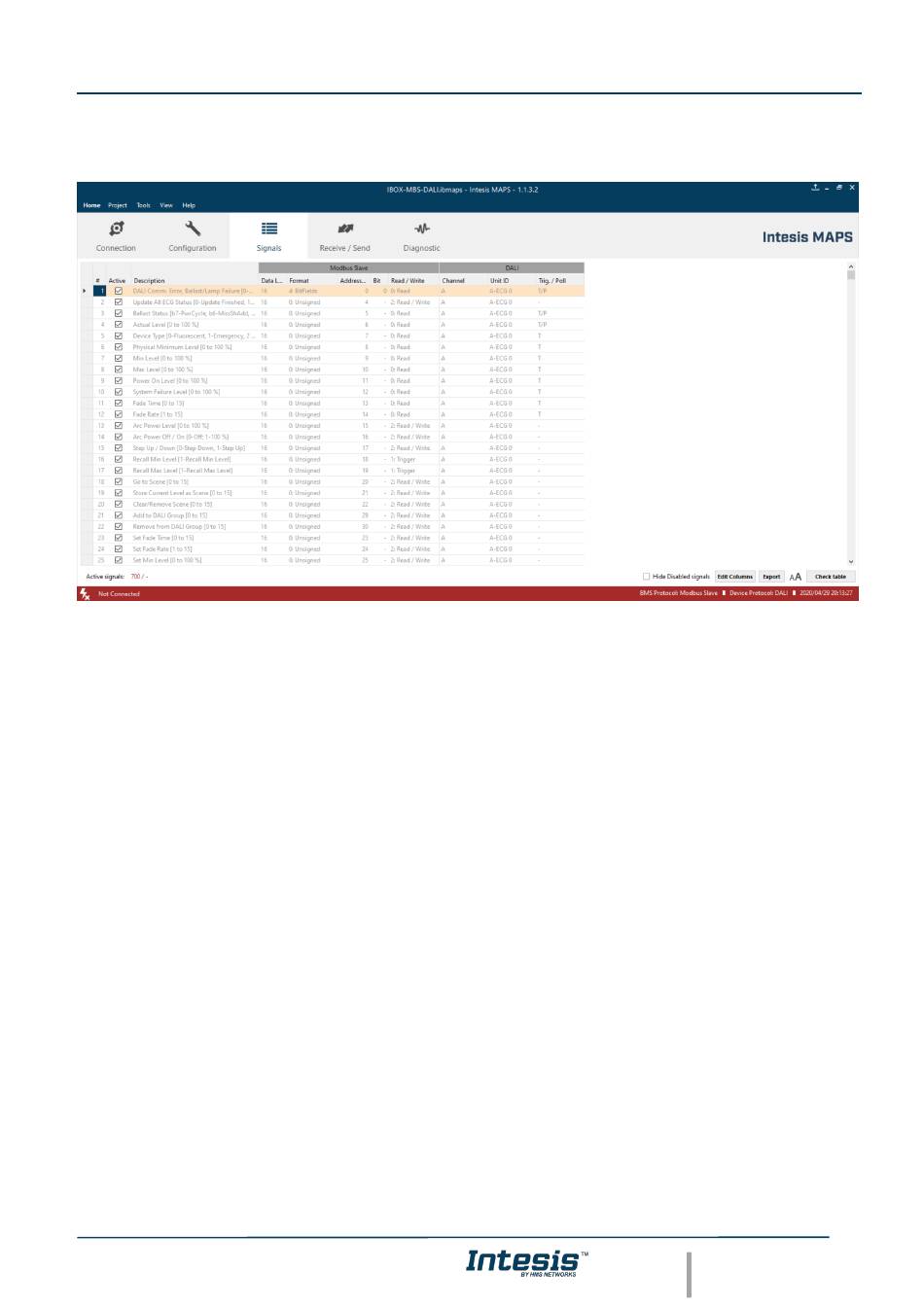

Figure 6.3 Intesis MAPS Signals tab

User Manual r1.0 EN
