KNX – DALI
TM
Intesis
Commissioning window will appear:
If having product version / template project supporting 2 DALI channels, channel to commission must be selected
between 'Port A' (top of the device) or 'Port B' (bottom of the device). In case of version supporting single DALI
channel, no selection is possible.
If devices have been added to the configuration (see previous section 'Device declaration in project') a list of ballasts
will appear in Configured ECG and a list of instances will appear in Configured Instances.
There is also a 'DALI network' area that will show DALI scan results, empty by now.
In order to start a DALI network scan, select suitable DALI channel (if applicable) and then click on button 'Scan':
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
A.7

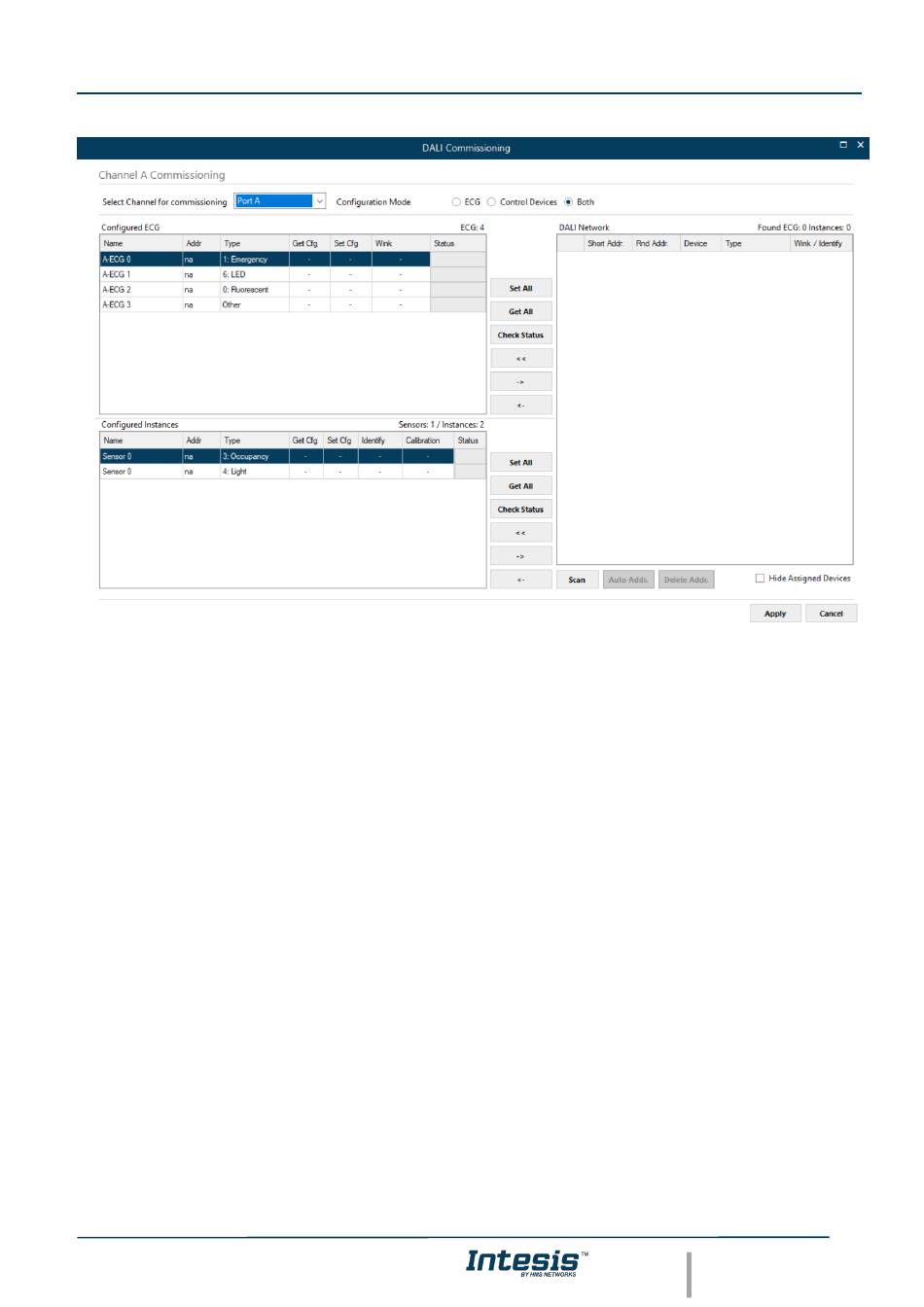

Figure
DALI commissioning window
User Manual r1.0 EN
URL
https://www.intesis.com
37 / 41
