Create project

You will need to create a new project, to do so, select 'Create New project' in MAPS start screen, and choose the
appropriate template according to your device model (1 or 2 DALI channels / 64 or 128 max DALI devices):

Device declaration in project

Once new project has been created, DALI devices can be added to the configured project, without the need of
scanning them in bus.
As mentioned above, this allows defining its configuration parameters (preset values, groups, scenes, ...) before
having actual access to the installation.
To do so, go to the 'Configuration' tab of MAPS, and select the 'DALI' section.
In it, choose the channel where you want to instantiate the devices (A or B are possible in case of having the product
version supporting 2 DALI channels), then select ECG node to add new ballasts, or select Sensors node to add
new sensors.
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
A.1

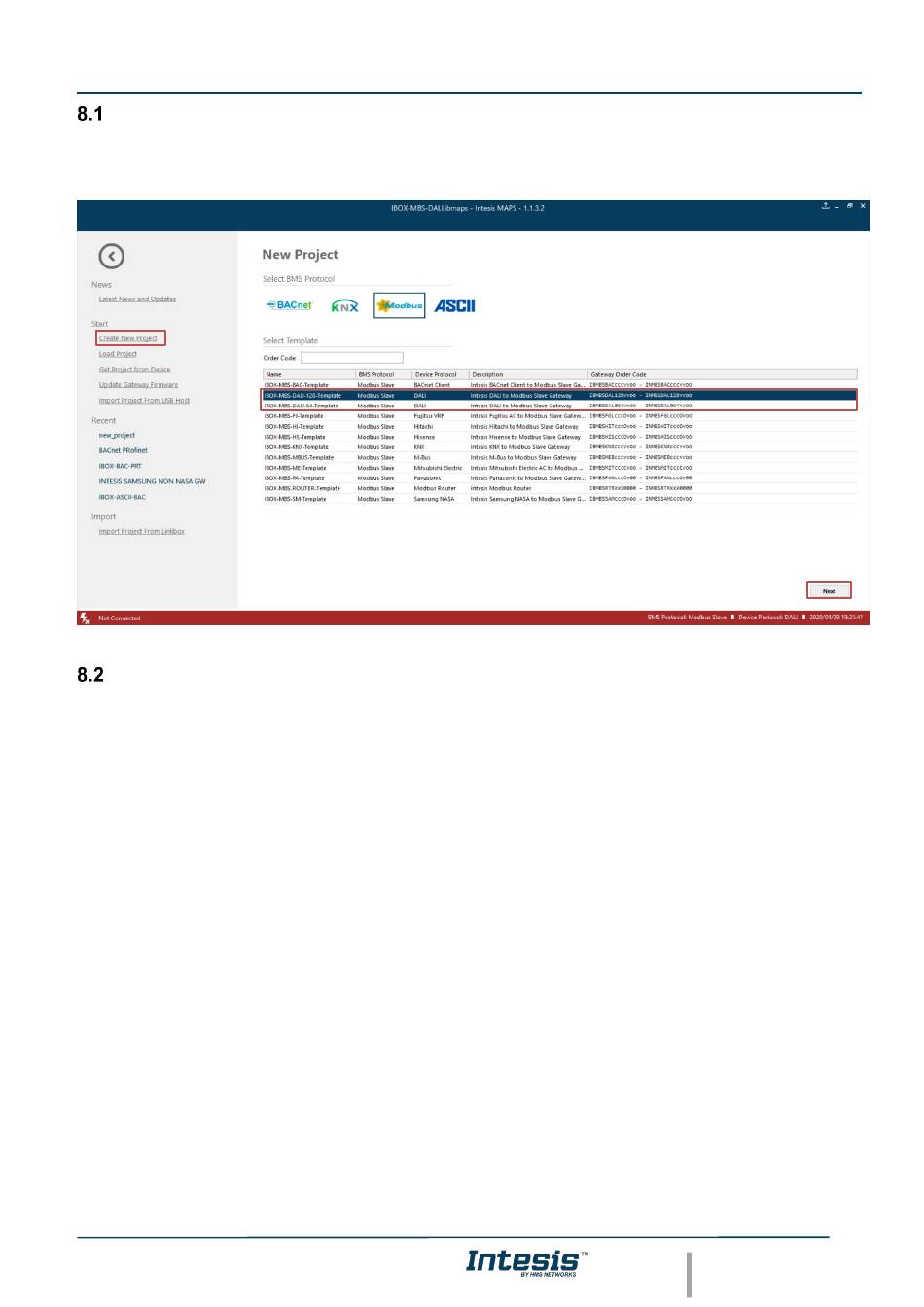

Figure New project creation
