KNX – DALI
TM
Intesis
Once each device has a short address, 'Wink' functionality in "DALI Network' window is available for each one.
Wink functionality sets the ballast at maximum and minum level while it is actived, allowing to identify the physical
location of the ballast in the installation. After identifying it in the installation, change in short address might be
desired.
After address association, devices can be added in config. There is two ways for doing that:
Button '<<': Selected ballast or ballasts in 'DALI Network' window will be added as a new ballast in
-
'Configured ECG' window. It allows multiple selection of ballasts from DALI Network window (using
'shift' or 'control' keys).
Button '<-': Selected ballast in 'DALI Network' window will be associated to existing/configured ballast
-
in 'Configured ECG' window.
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
A.10

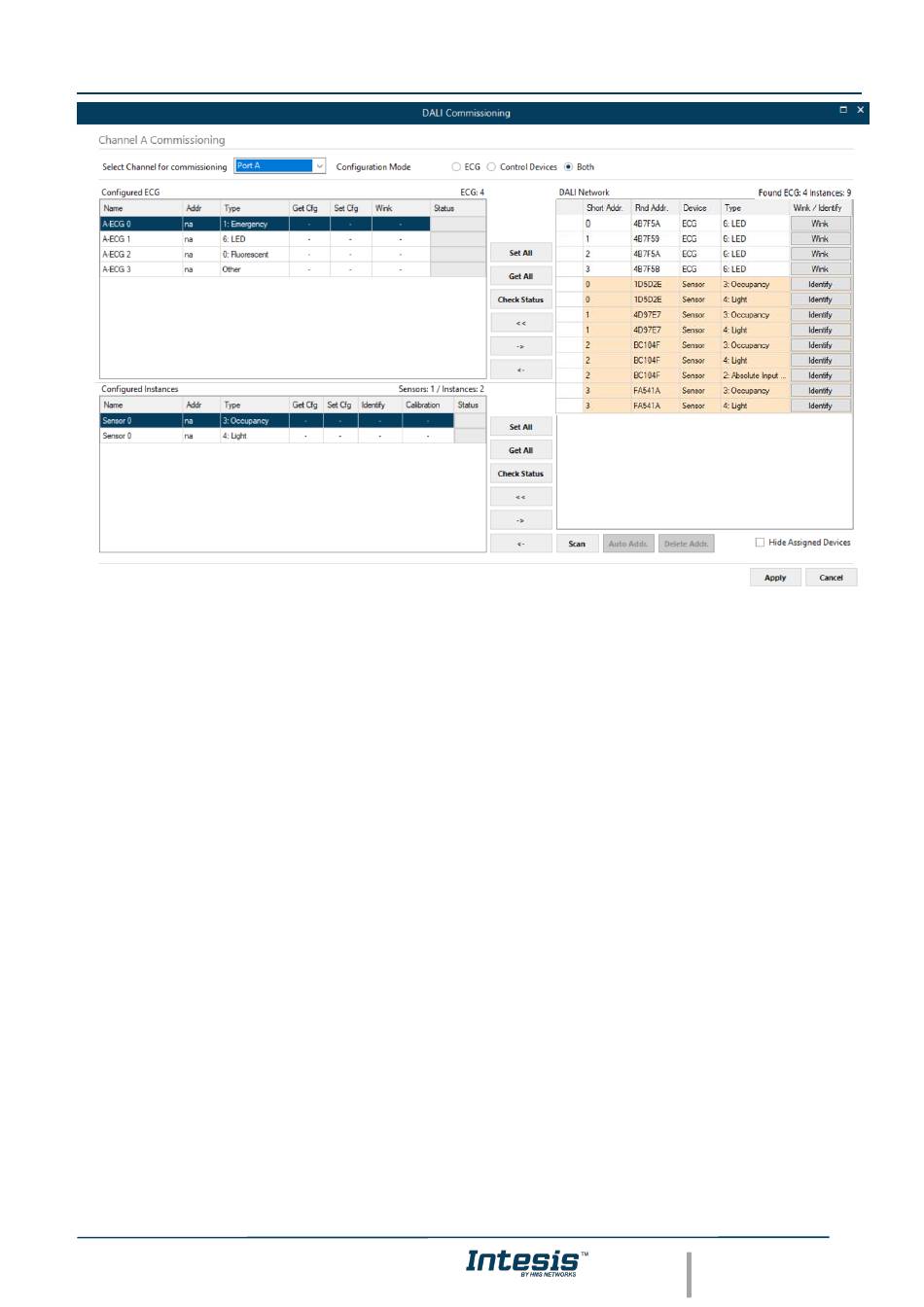

Figure
Shot address association
User Manual r1.0 EN
URL
https://www.intesis.com
40 / 41
