  • Page 1 PX391 PxArt+ 12 MANUAL...
  • Page 2: Table Of Contents

    11. Technical data......................Declaration of conformity....................Manufacturer reserves the right to make modifications in order to improve device operation. tel.: 12 385 83 06 PXM Marek Żupnik spółka komandytowa fax: 12 626 46 94 Podłęże 654 e-mail: info@pxm.pl 32-003 Podłęże Internet: www.pxm.pl...
  • Page 3: General Description

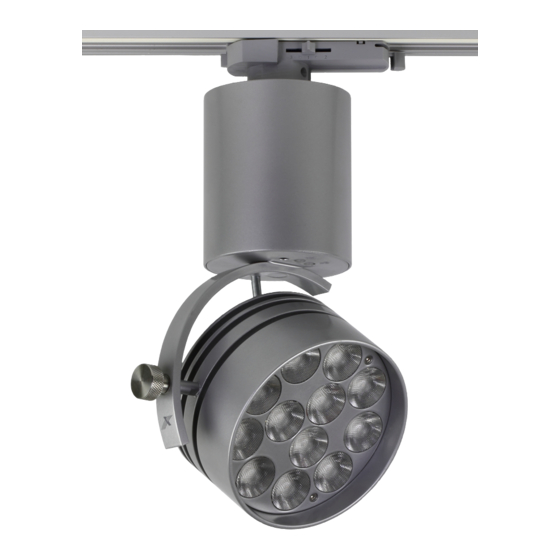

    1. GENERAL DESCRIPTION PxArt+ 12 is a professional LED illuminator designed for illumination of museum exhibitions or displays. Thanks to the application of the most modern semiconductor SSL LED light sources and advanced control electronics, a high class illuminator was created which meets very high requirements for museum and exhibition lighting.
  • Page 4 From a distance of more than 2.0 m from the outer housing of the lamp and LEDs, the light is harmless to unprotected eyes. While working outdoors in normal conditions, the housing unit can heat up to +60°C. Make sure that accidental contact with the device during use is impossible. In case of improper usage of the product it may cause a risk of serious injury or death, because of the threat of fire.
  • Page 5: Version Data

    The dimming of the lamp brightness occurs when the temperature is above 70 °C; this prevents the device from overheating. If the device reaches a temperature of 90 °C, the power of the lamp will be totally reduced. The light is then switched automatically in the event of temperature drop below the maximum temperature (90°C).
  • Page 6: Lamp Description

    4. LAMP DESCRIPTION DMX+ DMX- ® a 3-phase track for GLOBAL Trac Pulse control end feed power cable DMX cable (shielded cable, 2-core cable) GLOBAL Trac GAC 600 adapter...
  • Page 7: Manual Change Of Lamp Settings

    5. MANUAL CHANGE OF LAMP SETTINGS 5. MANUAL CHANGE OF LAMP SETTINGS The lamp has been equipped with buttons which allow for changing the brightness level and colour temperature of light. The buttons have been placed at the bottom part of the junction box, above the lamp reflector.
  • Page 8: Co-Operation With The Px277 Configurator

    6. CO-OPERATION WITH THE PX277 CONFIGURATOR Lamp settings can be changed by connecting the PX277 PxArt Settings Controller configurator. At the moment of connection, the PX39 starts again which causes LEDs to be off for a while and the diode indicating the DMX signal condition pulses for 2 seconds. When the device is turned on, its name appears on the display.
  • Page 9: Description Of The Information Parameters

    6.1. Description of the information parameters PX277 controller allows you to read important information concerning the lamp to which it has been connected. Model Lamp model PX391 +12 MW NEXT Lamp operation time (total operation time of the lamp, also Lighting time without diodes turned on) and lighting time are presented as 00y 001d 06h:48m...
  • Page 10: Invert Colour

    Model PX391 +12 MW NEXT Bright. address Bright. address ENTER 001 * NEXT Bright. address 512 * 6.2.2 Invert color The [ Invert color ] function applies both to Model PX391 +12 MW normal operation of DMX and operation in no NEXT signal mode.
  • Page 11: Smoothing

    6.2.4 Smoothing The device also has the smoothing option which enables smooth brightness and colour modifications. When the function is turned on, the transitions between successive DMX values sent to the lamp (responsible for brightness and colour changes) occur smoothly, without visible jolts, which prevents light "vibration"...
  • Page 12: Response To The Lack Of Dmx Signal

    PX39 default setting: Color address Ÿ Brightness address Ÿ Model PX391 +12 MW Scene color Ÿ Scene brightness Ÿ NEXT Invert color Ÿ ENTER Default sett. Default sett. Flicker free Ÿ PREV+NEXT > 2s PREV+ NEXT Smooth Time Ÿ Default sett. Smooth time 200 [ms] Ÿ...
  • Page 13: Dmx Signal And Power Supply Connection

    7. DMX SIGNAL AND POWER SUPPLY CONNECTION 7.1. GLOBAL Trac GAC 600 adapter DMX CONTACTS: DMX - (on the opposite side DMX +) POWER CONTACTS: earth phase 1 (phase 2 on the opposite side) neutral (phase 3 on the opposite side) phase selector switch ®...
  • Page 14: Rdm Description Of Available Parameters

    8. RDM DESCRIPTION OF AVAILABLE PARAMETERS PX39 supports the DMX-RDM protocol. DMX protocol in its assumption enables one-way data flow while its extension, the RDM protocol, can transmit information in two ways. This makes the simultaneous receiving and sending of information possible and allows for monitoring the operation of devices compatible with the RDM protocol as well as gives the possibility of changing the configuration of their parameters.
  • Page 15 Description Parameter name TEMPERATURE_LIMIT_ 0x800E temperature limitation activation for the temperature sensor connected to the driver, ON/OFF For 0 value, the function is not active; for 1 value, the function is active. Default value is 1. TEMPERATURE_ 0x800F lower temperature value for which the temperature limitation is being activated THRESHOLD_LOW TEMPERATURE_...
  • Page 16: Device Programming

    9. DEVICE PROGRAMMING Model PX391 +12 MW NEXT ENTER Color address Color address 001 * NEXT NEXT Color address 512 * Bright. address ENTER Bright. address 001 * NEXT NEXT Bright. address ENTER 512 * Scene color Scene color 001 * NEXT NEXT Scene color...
  • Page 17: Dimensions

    10. DIMENSIONS Ø121,5 Dimensions are given in millimetres For the lamp equipped with the WW (Wall Washer) type optics, the light appearance and its dimensions differ slightly...
  • Page 18: Technical Data

    10. TECHNICAL DATA Power supply: 230 V AC Number of LEDs: Power input: 17,5 W Max. increase of the housing temp : . + 30° C Luminous flux: 1200 lumens Lifetime of diodes: 50 000 h Angles of reflectors: 10°, 20°, 30°, 40°, EL, WW (50x110°) Color temperature: 2700÷4500 K (6000 K on order)
  • Page 19: Declaration Of Conformity

    12 385 83 06 http://www.pxm.pl 30-701 Kraków fax: 12 626 46 94 DECLARATION OF CONFORMITY according to guide lines 2004/108/WE and 2006/95/WE PXM Marek Żupnik sp. k. Name of producer: ul. Przemysłowa 12 Address of producer: 30-701 Kraków declares that the product:...
