  • Page 1 PX378 PxArt+ Frame MANUAL...

  • Page 2: Table Of Contents

    12. Technical data......................Declaration of conformity....................Manufacturer reserves the right to make modifications in order to improve device operation. tel.: (12) 626 46 92 PXM Marek Żupnik spółka komadytowa fax: (12) 626 46 94 ul. Przemysłowa 12 E-mail: info@pxm.pl Rev 1.0 30-701 Kraków...

  • Page 3: General Description

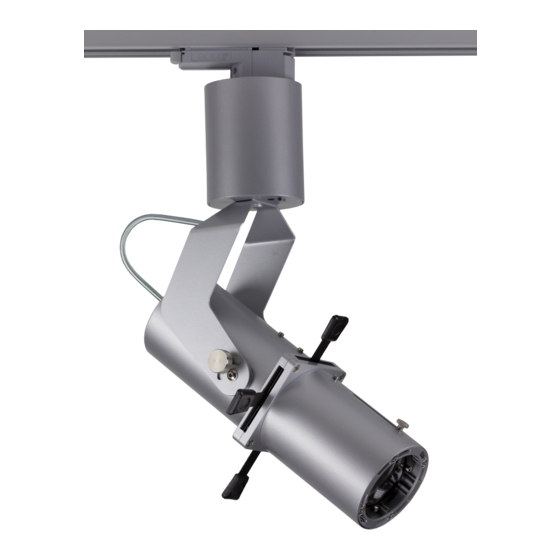

    1. GENERAL DESCRIPTION PxArt+ Frame is a professional cropping LED illuminator for the lighting of museum exhibitions or trade fair displays. The precise cropping system allows you to control the luminous flux and adjust the illumination range to the size and position of the displayed object. Thanks to the application of the latest...
  • Page 4 While working at an ambient temperature of 25°C housing unit can heat up to 90°C. Because of the danger of burns, avoid direct contact with the casing. In case of improper usage of the product it may cause a risk of serious injury or death because of the threat of fire.

  • Page 5: Version Data

    The dimming of the lamp brightness occurs when the temperature is above 70°C, which prevents the device from overheating. If the device reaches a temperature of 90°C, the power of the lamp will be totally reduced. The light is then switched automatically in the event of temperature drop below the maximum temperature (90°C).

  • Page 6: Lamp Description

    Schemat podłączenia 4. LAMP DESCRIPTION a three-phase track for control systems ® GLOBAL Trac Pulse Control DMX+ DMX- end feed power cable DMX cable (shielded cable, two-core cable) adapter GLOBAL Trac GAC 600 5. DMX SIGNAL AND POWER CONNECTION 5.1. Adapter GLOBAL Trac GAC 600 CONTACTS DMX DMX - (on the opposite side DMX +)

  • Page 7: Section Through The Dmx Global Trac Pulse Control Current Rails

    5.2. Section through the DMX GLOBAL Trac Pulse control current rails. POWER phase 2 phase 3 phase 1 neutral DMX - DMX + 6. MANUAL CHANGE OF LAMP SETTINGS The lamp has been equipped with a button which allows for changing the brightness level. The button has been placed at the bottom part of the junction box, above the lamp reflector.

  • Page 8: Co-Operation With The Px277 Configurator

    Over the illuminator, there is a LED informing about the lamp condition. Depending on the situation, the LED signals the following messages: lamp starting – rapid blinking of the LED for 2 s, DMX signal receipt – slow blinking of the brightness adjustment press button (with frequency of 1Hz) for the first minute after the receipt of the DMX signal, after starting up of the lamp with the lack of the DMX signal –...

  • Page 9: Description Of The Information Parameters

    7.1. Description of the information parameters PX277 controller allows you to read important information concerning the lamp to which it has been connected. Model Lamp model PX378 +FRAME NEXT Lamp operation time (total operation time of the lamp, also Lighting time without diodes turned on) and lighting time are presented as 00y 001d 06h: 48m follows (designations from the left):...

  • Page 10: Scene Brightness

    8.2. Scene brightness Lamps from PxArt series can work without using DMX control. In such case, PxArt Settings Controller enables changing the scene brightness value. This value can be set between 0 to 255. Model [Scene bright.] set to value 0 turns off the PX378 +FRAME stage and turns the value 255 to 100%.

  • Page 11: Restoring Default Settings

    8.5. Restoring default settings The device comes with the option to restore default settings. To use this option, select the [Default sett.] menu and press "enter". A window informing about the need to press "previous" and "next" buttons will appear for 2 seconds simultaneously.
  • Page 12 Description Parameter name DEVICE_MODEL_ 0x0080 device description, e.g. name DESCRIPTION MANUFACTURER_LABEL 0x0081 manufacturer description, e.g. name DEVICE_LABEL * 0x0082 additional device description, It is possible to enter an additional device description using up to 32 ASCII characters. FACTORY_DEFAULTS 0x0090 device default settings DMX_PERSONALITY 0x00E0 DMX operational mode...

  • Page 13: Device Programming

    10. DEVICE PROGRAMMING Model PX378 +FRAME NEXT Bright. address ENTER Bright. address 001 * NEXT NEXT Bright. address 512 * ENTER Scene bright. Scene bright. 000 * NEXT NEXT Scene bright. 255 * ENTER Smooth Smooth Time Off * NEXT NEXT Smooth P2P *...

  • Page 14: Dimensions

    11. DIMENSIONS 113,5 Dimensions in millimetres...

  • Page 15: Technical Data

    12. TECHNICAL DATA Catalog number: PX378 Power: 230 V AC Number of LEDs: 1 (COB) Power input: 27 W PF (power factor): 0,94 Max. increase of the housing + 50° C temperature: CRI color rendering index: min. 80 LED lifetime: 50 000 h Cropping area: max.

  • Page 16: Declaration Of Conformity

    30-701 Kraków fax: 12 626 46 94 DECLARATION OF CONFORMITY according to guide lines 2004/108/WE and 2006/95/WE Name of producer: PXM Marek Żupnik sp. k. Address of producer: ul. Przemysłowa 12 30-701 Kraków declares that the product: Name of product:...
