Summary of Contents for PXM PxArt+ 12

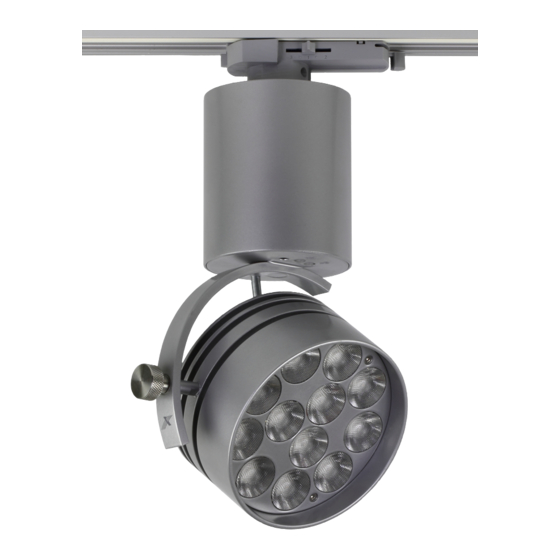

- Page 1 PX391 PxArt+ 12 User manual...
-
Page 2: Table Of Contents
6 Control......................8 6.1 Buttons.......................... 8 6.2 DMX signal......................... 10 7 Cooperating with the PX277 configurator...........11 7.1 Available parameters....................11 7.2 The PxArt+ 12 menu diagram in PX277...............13 8 RDM – available parameters..............15 9 Connection scheme.................17 10 Dimensions.....................18 11 Technical data..................19 Manufacturer reserves the right to make modifications in order to improve device operation. -
Page 3: Description
Description PxArt+ 12 is a professional LED illuminator designed for illumination of museum exhibitions or displays. Thanks to the application of the most modern semiconductor SSL LED light sources and advanced control electronics, a high class illuminator was created which meets very high requirements for museum and exhibition lighting. -
Page 4: Safety Conditions
Safety conditions Caution! Before installing, connecting and using the lamp you have to absolutely read this document. The following symbols are used to underline important information on security on the product and in this manual. Danger! Warning! Warning! Warning! Warning! Risk of loss of life Fire hazard LED light emission,... - Page 5 The PX391 device is powered directly from 230V power grid. Failure to comply with the safety rules may result in electric shock and may endanger the user’s life. Therefore it is necessary to observe the following: 1. Installation should be performed by a person holding the appropriate qualifications, according to the instruction manual.
-
Page 6: Connectors And Control Elements
Connectors and control elements Output to PX277 Adjusting the color temperature Brightness adjustment Information on version Below is a description of the PX391 model designations with their explanation PX391-XX-YY-Z XX – beam angle: YY – colors of used LED Z – housing colors: 10 –... -
Page 7: Dmx Connection
DMX connection PxArt+ 12 is a device attached to the GLOBAL Trac ® Pulse Control rail by using the GAC 600 adapter included in the kit. 5.1 GLOBAL Trac ® GAC 600 adapter DMX contacts DMX - (on the opposite... -
Page 8: Control
Control 6.1 Buttons The lamp has been equipped with buttons which allow for changing the brightness level and colour temperature of light. The buttons have been placed at the bottom part of the junction box, above the lamp reflector. One button is responsible for one parameter. - Page 9 It is possible to change the adjustment direction without reaching extreme values. For example, while the lamp brightness is increased, release the control button for a moment. The diode will signal the change of adjustment direction. The pressing of the adjustment button again will cause the dimming of the lamp (brightness decrease).
-
Page 10: Dmx Signal
6.2 DMX signal The PX391 lamp can be controlled via two DMX channels. • Channel 1 – color • Channel 2 – brightness Setting the lamp parameters: Value of the DMX signal Value of the lamp parameter Invert colour Invert colour Turning off Turning on 4500K... -
Page 11: Cooperating With The Px277 Configurator
Cooperating with the PX277 configurator The PxArt+ 12 settings can be changed by connecting to the PX277 (PxArt Settings Controller) configurator. It allows in connection with PX391 to define the following parameters: DMX addresses for color and brightness separately (in the range of 1 – 512) and device behavior in the absence of DMX signal (programmable scene). - Page 12 Flicker free – tuning the frequency of the control signal Smooth – the smoothing function allows for smooth changes of brightness and color, without visible jerks, which prevents the effects of “vibrations” of light from occurring in lighting installations. Possible options to choose from: Time –...
-
Page 13: The Pxart+ 12 Menu Diagram In Px277
7.2 The PxArt+ 12 menu diagram in PX277 Model PX391 +12MW NEXT ENTER Color address Color address 001 * NEXT Color address Bright. address NEXT 512 * 001 * PREV ENTER Bright. address Bright. address 002 * NEXT Scene color Bright. - Page 14 Previous page ENTER Smooth Smooth Time Time * NEXT Smooth Off * NEXT NEXT Smooth Smooth time P2P * 0010[ms] * PREV ENTER Smooth time Smooth time 0200[ms] 0200[ms] * NEXT NEXT ENTER Default sett. Default sett. Smooth time PREV+NEXT >2s 2000[ms] * NEXT Lighting time...
-
Page 15: Rdm - Available Parameters
RDM – available parameters The PX391 supports the DMX-RDM protocol. DMX protocol allows only of a one-way data transmission, while extension the RDM protocol can transmit information in two directions. This makes possibility of monitoring activities of the compatible devices. Thanks to RDM some available settings of compatible devices may be programmed using this protocol. - Page 16 Parameter name Description FACTORY_DEFAULTS 0x0090 device default settings DMX_PERSONALITY * 0x00E0 DMX operational mode DMX_PERSONALITY_ description of individual 0x00E1 DESCRIPTION operational modes information on the selected SENSOR_DEFINITION 0x0200 temperature sensor SENSOR_VALUE 0x0201 information about sensors DEVICE_HOURS 0x0400 total lamp operating time LAMP_HOURS 0x0401 total lamp lighting time SMOOTH_DIS_0/P2P_1/...
-
Page 17: Connection Scheme
Connection scheme 3-phase GLOBAL Trac® Pulse Control bus-bar end feed power supply cable DMX+ DMX- DMX wire (2 wires in screen) GLOBAL Trac® GAC600 adapter... -
Page 18: Dimensions
10 Dimensions... -
Page 19: Technical Data
11 Technical data type PX391 power supply 230V AC number of diodes power consumption 17,5W max. temperature rise housing +30°C luminous flux 1200lm LEDs lifespan 50000h 10°, 20°, 30°, 40°, EL (10 x 45°), WW* beam angle (50 x 110°) colour temperature 2700 –... - Page 20 Podłęże, 18.04.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: PxArt+ 12 Product code: PX391 meets the requirements of the following standards, as well as harmonised standards: PN-EN 60598-1:2015-04...
