PSSu E S 2AI RTD(-T)
Decentralised system PSSuniversal I/O
}
Operating Manual 22017-EN-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSSu E S 2AI RTD and is the answer not in the manual?

Questions and answers

Related Manuals for Pilz PSSu E S 2AI RTD

Summary of Contents for Pilz PSSu E S 2AI RTD

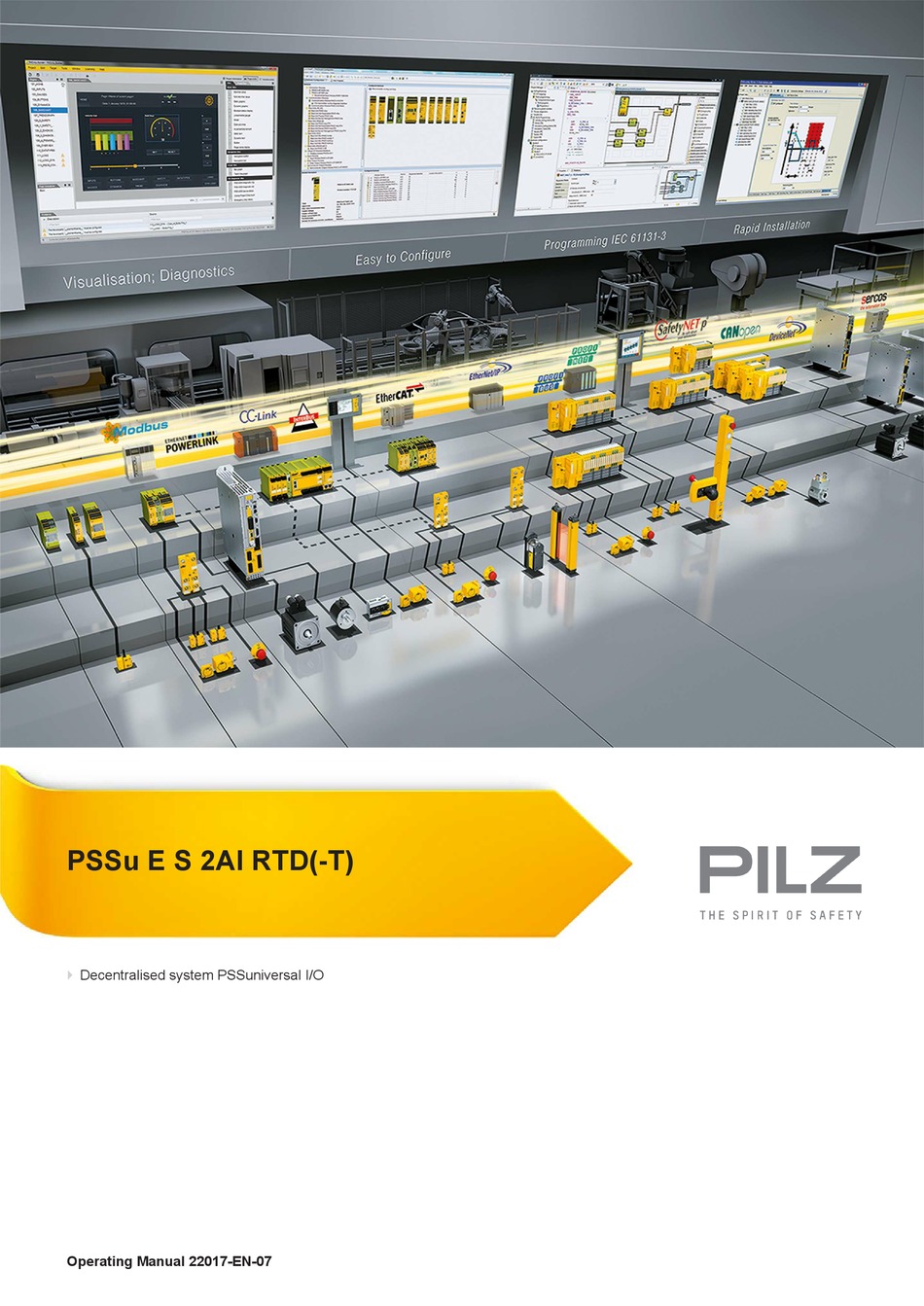

  • Page 1 PSSu E S 2AI RTD(-T) Decentralised system PSSuniversal I/O Operating Manual 22017-EN-07...
  • Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
  • Page 3 PSSu assignment in system environment B Section 5 Installation General installation guidelines 5.1.1 Dimensions Installing the base module Inserting and removing an electronic module 5.3.1 Inserting an electronic module 5.3.2 Removing an electronic module Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...

  • Page 4: Table Of Contents

    Terminal configuration Connecting the module Section 7 Operation Messages Display elements 7.2.1 Display elements for module diagnostics 7.2.2 Displaying the input status Section 8 Technical Details Section 9 Order reference Product Accessories Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...

  • Page 5: Operating Manual Pssu E S 2Ai Rtd(-T)

    Introduction Validity of documentation This documentation is valid for the products PSSu E S 2AI RTD and PSSu E S 2AI RTD-T. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.
  • Page 6 It also highlights areas within the text that are of particular import- ance. INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 7 Open circuit detection LEDs for: – Operating status per input – Module error For standard applications in system environment A and B T-type: PSSu E S 2AI RTD-T: for increased environmental requirements Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 8 A: Electronic module B: Base module 1: LED for module diagnostics 2: Labelling strip with: – Name of electronic module – Order number – Serial number – Hardware version number – 2D code Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 9 12: Round connection holes (connection levels 1, 2, 3 and 4) for connecting the signal lines 13: Mounting slot for colour marker to label the connection level (connection levels 1, 2, 3 and 4) Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 10 The module provides analogue inputs. It may be used as an input module for standard functions. The modules PSSu E S 2AI RTD and PSSu E S 2AI RTD-T may be used as a safety com- ponent in accordance with the Lifts Directive 95/16/EC, EN 81-1, EN 81-2 and EN 115-1.
  • Page 11 Safety The module PSSu E S 2AI RTD-T may be used in conjunction with the following base mod- ules: PSSu BP 1/12 S-T PSSu BP 1/12 C-T PSSu BP-C 1/12 S-T PSSu BP-C 1/12 C-T Safety regulations 3.2.1 Use of qualified personnel The products may only be assembled, installed, programmed, commissioned, operated, maintained and decommissioned by competent persons.
  • Page 12 All the configuration data is stored in the head module and is assigned to the input module on restart. This way the configuration data is retained even if you change the input module. Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 13 The input measuring ranges may be configured per input: Pt100 (Default) Pt200 Pt500 Pt1000 Ni100 Ni120 Ni1000 0 ... 4000 Ohm (resistance measurement) The temperature ranges for these measuring ranges can be found in the technical details. Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 14 – Deactivate "Manufacturer scaling" and "User scaling". – Select the resistance measurement ("0.0 ... 4000.0") under "Measuring range". – Select 2-wire measurement under "Connection type". – Enter zero under "2-wire measurement offset". Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 15 50 Hz 80 dB 122 ms 244 ms 50 Hz and 60 65 dB 122 ms 244 ms 50 Hz and 60 69 dB 202 ms 404 ms 50 Hz and 60 74 dB 482 ms 964 ms Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 16 Scaling is a multi-stage process to adapt the values from the AD converter. The straight path in the diagram indicates the default configuration. raw value Raw value output? Hardware calibration Man.- scaling active? Manufacturer scaling User scaling active? User scaling Output formats Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 17 256 (100 ). That corresponds to amplification factor 1. If the manufacturer scaling and the user scaling are deactivated, the resolution will be 1/16 K or 1/16 Ohm. Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 18 Analogue value and typical digital value with a measuring range of 0 Ohm ... 1000 Ohm: Hexadecimal digital Resistance Decimal digital value Binary digital value value 0 Ohm 0000 0000 0000 0000 0000 1000 Ohm 10000 0010 0111 0001 0000 2710 Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 19 Hz and 60 Hz), and 60 Hz), 404 ms/69 dB (50 482 ms/74 dB (50 Hz Hz and 60 Hz), and 60 Hz) 964 ms/74 dB (50 Hz and 60 Hz) Range monitoring Activated/TRUE Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 20 Input I0 LSB status byte MSB status byte Input I1 LSB status byte MSB status byte Input I0 LSB input data MSB input data Input I1 LSB input data MSB input data Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 21 0: Input value above or equal to the lower limit value 1: Value below the lower limit value Overrange: BOOL 0: Input value below or equal to the upper limit value 1: Value exceeds the upper limit value Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 22 5.1.1 Dimensions Base modules with six connection levels: 12,6 mm 8,1 mm 52,1 mm (0.496") (0.319") (2.051") 12,6 mm 72,6 mm (0.496") (2.858") Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 23 Push the base module back [2] until you hear it lock into position. On the mounting rail, slide the base module to the left until you hear the two lateral mounting hooks on the adjacent module lock into position [3]. Schematic representation: Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 24 This is how the base module is coded. The mechanics of the electronic modules are designed for 50 plug in/out cycles. Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 25 Installation 5.3.1 Inserting an electronic module Procedure: The electronic module must audibly lock into position [1]. Mark the electronic module using the labelling strips [2]. Schematic representation: Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...

  • Page 26: Changing An Electronic Module During Operation

    The substitute values are used for the modules' FS outputs, with Valid Bits = FALSE. CAUTION! Sparking can cause interference and errors! Only change the module when the load is switched off! Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...

  • Page 27: Wiring

    Insert the stripped cable into the round fixing hole [2], as far as it will go. – Tighten up the screw on the screw terminal. – Check that the cable is firmly seated. Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 28 Inputs/outputs on the counter modules: 1.5 mm (AWG16) – Analogue inputs/outputs: 1.5 mm (AWG16) – Communication cables: 1.5 mm (AWG16) – Test pulse outputs: 1.5 mm (AWG16) – Power supply: 2.5 mm (AWG12) – Functional earth: 2.5 mm (AWG12) Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...

  • Page 29: Terminal Configuration

    22: Input RL0- 13-23: Shield connection (13-23-16-26 linked within the base module) 14: Input R1+ 24: Input RL1+ 15: Input R1- 25: Input RL1- 16-26: Shield connection (13-23-16-26 linked within the base module) Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 30 13-23: C-rail supply, shield connection (13-23-16-26 linked within the base module) 14: Input R1+ 24: Input RL1+ 15: Input R1- 25: Input RL1- 16-26: C-rail supply, shield connection (13-23-16-26 linked within the base module) Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...

  • Page 31: Connecting The Module

    Wiring Connecting the module Input circuit Without C-rail With C-rail 2-wire measurement RL0+ RL0+ RL0- RL0- RL1+ RL1+ RL1- RL1- 3-wire measurement RL0+ RL0+ RL0- RL0- RL1+ RL1+ RL1- RL1- Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 32 Wiring Input circuit Without C-rail With C-rail Connection for 4-wire sensor RL0+ RL0+ RL0- RL0- RL1+ RL1+ RL1- RL1- Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...

  • Page 33: Operation

    LED on LED off 7.2.1 Display elements for module diagnostics The module has an LED for displaying module errors ("Err" LED). Meaning Designation Colour Status - - - No error Module is faulty Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...

  • Page 34: Displaying The Input Status

    - - - No sig- 11, 12 nal de- (Input 1) 21, 22 tected green Signal detected - - - No sig- 14, 15, nal de- (Input 2) 24, 25 tected green Signal detected Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...

  • Page 35: Technical Details

    Pt1000, Pt200, Pt500, resistance Pt1000, Pt200, Pt500, resistance Input area Platinum sensors in accordance with the standard DIN EN 60751 DIN EN 60751 Nickel sensors in accordance with the standard DIN 43760 DIN 43760 Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 36 404 ms Max. measuring current 500 µA 500 µA Deviations from the measuring range limit value Output variable error at 25 ℃ 0,3 % 0,3 % Temperature coefficient 0,0040 %/K 0,0040 %/K Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 37 EN 81-1, EN 81-2 and EN 115-1 2000 m 2000 m Airgap creepage In accordance with the standard EN 60664-1, EN 61131-2 EN 60664-1, EN 61131-2 Overvoltage category Pollution degree Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 38 12,6 mm 12,6 mm 60,2 mm 60,2 mm Depth Weight 35 g 34 g Mechanical coding Type Colour Dark grey Dark grey Where standards are undated, the 2008-06 latest editions shall apply. Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...

  • Page 39: Order Reference

    Base module with C-rail and screw terminals, T-type 314 620 PSSu BP-C 2/12 C Base module with C-rail and cage clamp terminals 312 621 PSSu BP-C 2/12 C-T Base module with C-rail and cage clamp terminals, T-type 314 621 Operating Manual PSSu E S 2AI RTD(-T) 22017-EN-07...
  • Page 40 Front cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland +41 62 88979-30 Mexico +43 1 7986263-0...
