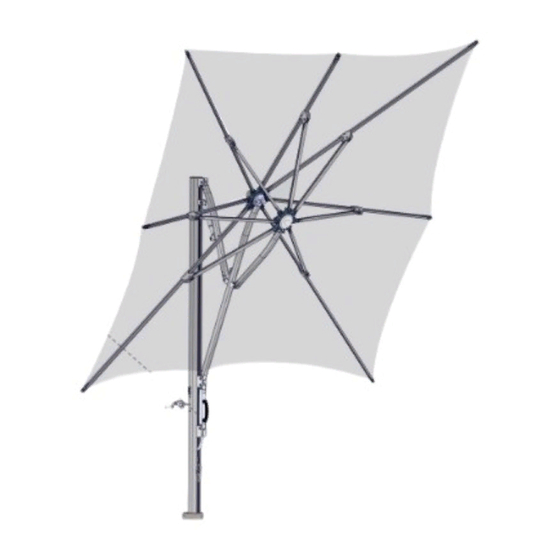

Tuuci TILT CANTILEVER Assembly & Operating Instructions

ASSEMBLY & OPERATING INSTRUCTIONS

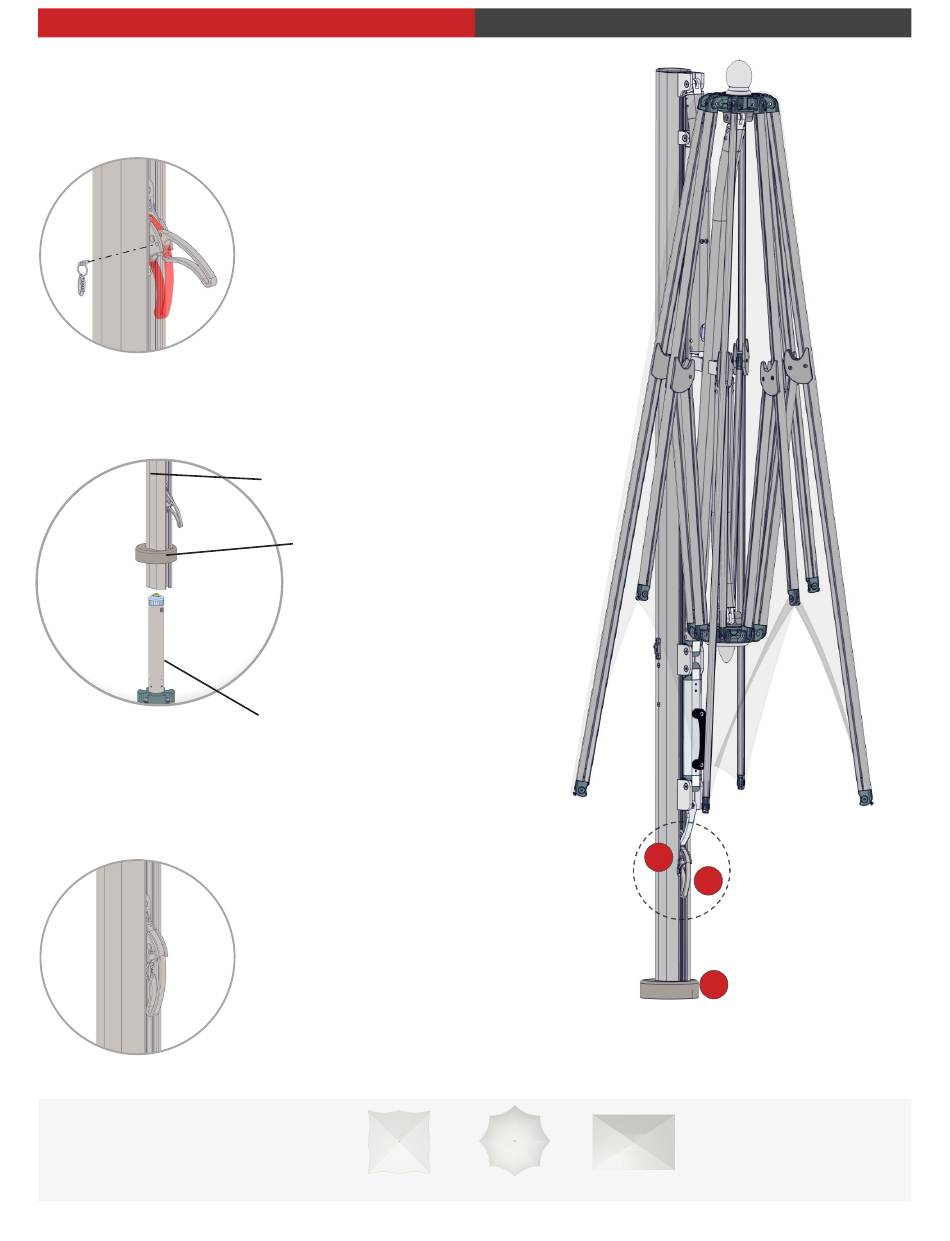

Step 1

Remove all packaging from umbrella, including inside the umbrella.

Step 2

Pull pin to unlock and make sure cam lock handle is open.

Step 3

Once the security stem is installed in its desired location, slide the

beauty cover over the mast and insert the mast into the security stem.

Step 4

Push cam lock handle until it engages in the proper

gear slot then lock handle with pin .

mast

beauty cover

security stem

applies to:

square

TILT CANTILEVER

octagon

rectangle

INSA2000

tuuci

Table of Contents

Need help?

Do you have a question about the TILT CANTILEVER and is the answer not in the manual?

Page 1 ASSEMBLY & OPERATING INSTRUCTIONS TILT CANTILEVER Step 1 Remove all packaging from umbrella, including inside the umbrella. Step 2 Pull pin to unlock and make sure cam lock handle is open. Step 3 Once the security stem is installed in its desired location, slide the beauty cover over the mast and insert the mast into the security stem.
Page 2 ASSEMBLY & OPERATING INSTRUCTIONS TILT CANTILEVER OPENING UMBRELLA Step 5 Gently separate each rib individually from center hub approx. 10 inches. If rib does not move easily do not force. Inspect product for additional packaging. Step 6 Lift cart lever to release tension and to unlock canopy frame.
Page 3 ASSEMBLY & OPERATING INSTRUCTIONS TILT CANTILEVER ADJUSTING CANOPY ANGLE Step 10 Make sure cart lever is unlocked. Step 11 The angle of the canopy can be adjusted to a desired position by moving the cart handle up or down, lock the position by setting the cart lever down.
Page 4 ASSEMBLY & OPERATING INSTRUCTIONS TILT CANTILEVER CLOSING UMBRELLA Step 12 Lift cart lever to release tension and to unlock. Step 13 Make sure the gear lock button is in the top/unlock position before turning crank handle. Step 14 Insert crank handle and rotate counterclockwise, until it stops.
Page 5 In cases where the parasol is taken down and stored during the winter season, the Sunbrella® canopy should be cleaned, allowed to air dry, and stored in a dry, well ventilated area. A TUUCI Protective Cover should be used when umbrella is not in use.
