ASSEMBLY & OPERATING INSTRUCTIONS

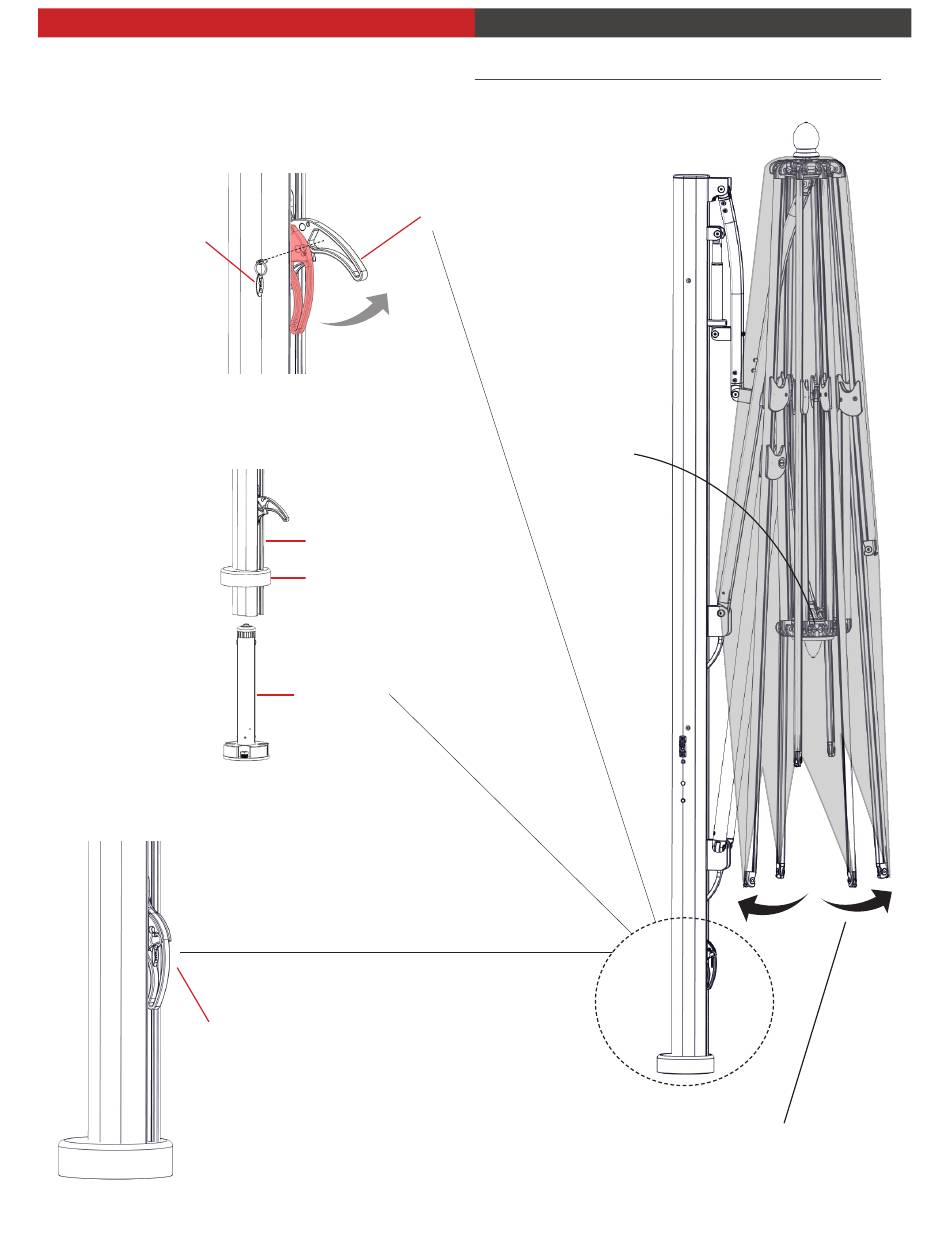

step 1
remove all packaging from in and around umbrella
step 2
pull pin from cam lock and lift the handle to unlock umbrella
pin
step 3
once you have Installed and leveled the stem using the base
installation instructions, slide the beauty cover and umbrella
over the security stem (security stem is included with umbrella)
step 4
lock umbrella down by pushing the cam lock handle in the
down position and lock with pin
lock cam lock handle
|
1
tuuci
unlock cam lock handle
umbrella mast
beauty cover
security stem
step 5
gently separate each rib individually from center hub approx. 10 inches.
if rib does not move easily do not force. inspect product for additional packaging

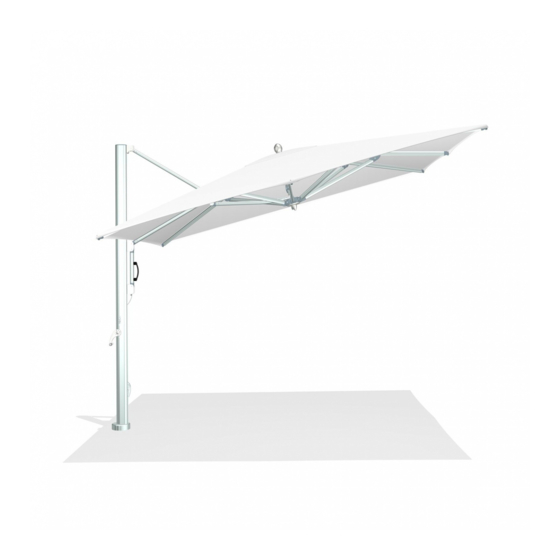

MAX TILT CANTILEVER
OPENING UMBRELLA
center hub
INSA2025
