ASSEMBLY & OPERATING INSTRUCTIONS

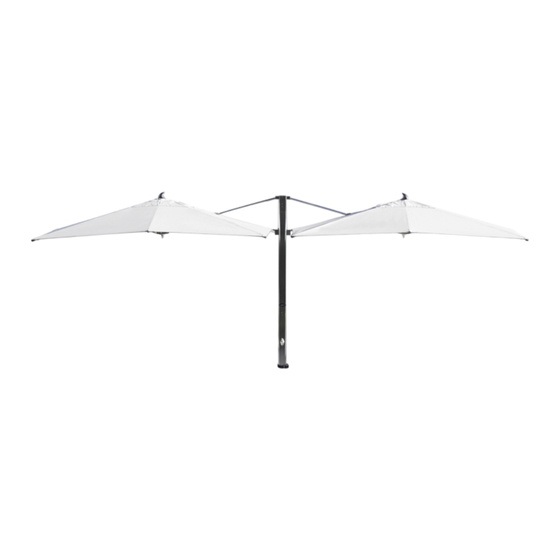

Auto-Lift DUAL Cantilever with LED Light

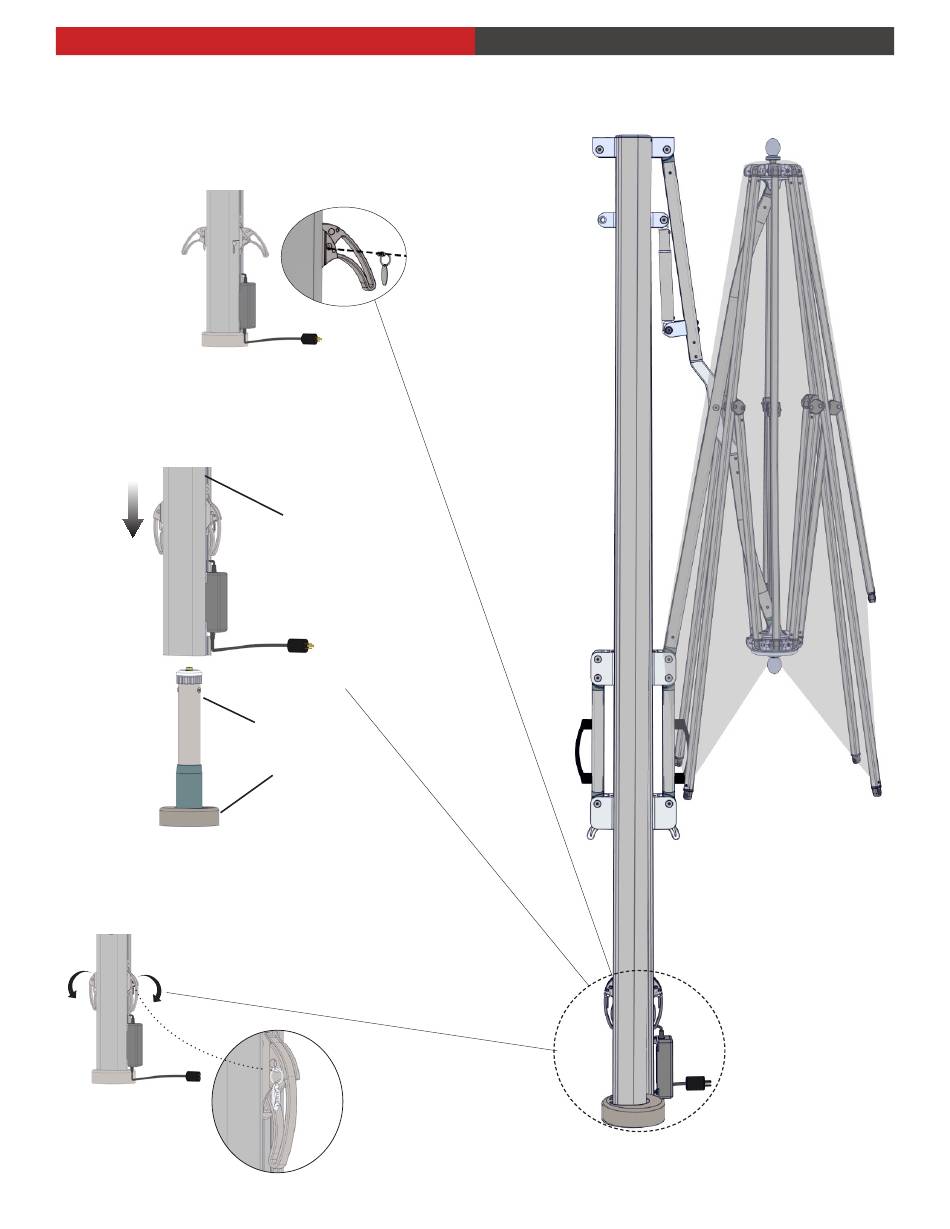

step 1

remove all packaging from in and around umbrella

step 2

pull pin from cam lock and lift the handle to unlock umbrella

step 3

once you have Installed and leveled the stem using

the base installation instructions, slide the beauty

cover and umbrella over the security stem

(security stem is included with umbrella)

mast

security stem

beauty cover

step 4

lock umbrella down by pushing the cam lock handle in the

down position and lock with pin

1005116

tuuci

Table of Contents

Need help?

Do you have a question about the 1005116 and is the answer not in the manual?

Page 1 (security stem is included with umbrella) mast security stem beauty cover step 4 lock umbrella down by pushing the cam lock handle in the down position and lock with pin 1005116 tuuci...
Page 2 ASSEMBLY & OPERATING INSTRUCTIONS Auto-Lift DUAL Cantilever with LED Light Step 5 Install 2nd canopy frame by using 3/8 bushing and screws. Note: add a drop of provided loctite to the end of the screw threads. 1005116 tuuci...
Page 3 Insert 1st grommet on inner mast groove Insert 2nd grommet on outer mast groove and run by runing cables through clips cable through clips. cable clips grommet (1) grommet (2) run cables through clips Step 10 re-install cap and screws 1005116 tuuci...
Page 4 TO CLOSE UMBRELLA To close umbrella, unlock the cart lock lever (by pushing cart handle upwards and pushing cart lock lever in) then slide down the cart by pulling down the cart handle. cart handle cart lock 1005116 tuuci...
Page 5 40 Watts plate finial product is supplied with a 12ft power cord and plug. When not in use the canopy should be carefully folded and secured with the tie-strap. Note: close umbrella during wind conditions that exceed manufacturer’s specifications. 1005116 tuuci...
Page 6 • Prior to opening, ensure that the shade product is properly secured to an adequate shade anchor system. • When opening a TUUCI parasol, separate each rib 10 inches from the center post, before raising the hub. Do not force hub if it does not rise easily.
