- Page 1 ERO Micro Spot LED moving head User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:18-02-2017 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing the ERO Micro Spot. This versatile device is compact in size, but full of technology that will make a statement at your party or event. This user manual offers you all the information you need to get started.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Only suitable for indoor use: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.

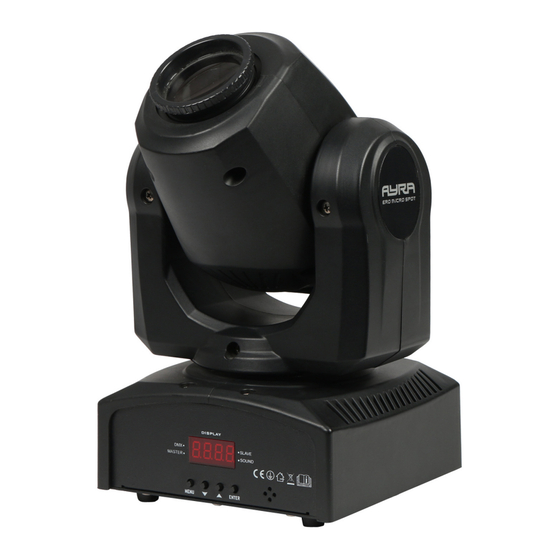

- Page 6 Guidelines and operation of this device 1. moving head with light output via lens (manually adjustable focus) 2. rubber feet 3. LED display with menu buttons 4. DMX input via 3-pin XLR 5. DMX output via 3-pin XLR 6. power input with fuse holder 7.
- Page 7 During calibration, ‘AYRA’ will be shown on the display, which means the device is not ready to be operated. Once the device has fully started up, it will jump to the last-used mode. Operation modes and other settings shown on the display can now be adjusted or changed by means of the menu buttons.
- Page 8 YES – invert tilt TEST Test mode This mode tests all the functions displayed to make sure they are working properly. HOUR Time registration 0000 – 9999 usage in hours Firmware version number Display of firmware version number (can not be updated by user) RSET Reset function...
- Page 9 from the speaker, the higher the sensitivity of the microphone needs to be so it can react properly to the music. The microphone is built to handle high sound pressure levels, but the louder the signal the higher the microphone sensitivity level, the more difficulty the device will have detecting the beat of the music. Experiment with the level of sensitivity and distance/positioning of the device to find the best results.
- Page 10 This is true of DMX lighting of all brands and types. The ERO Micro Spot can function in conjunction with the ALO Micro Scan because they share exactly the same operating programs. Moving heads and scanners of this type can work together seamlessly.
- Page 11 088-095: Gobo3 shake 096-103: Gobo4 shake 104-111: Gobo 5 shake 112-119: Gobo 6 shake 120-127 Gobo 7 shake 128-255 Gobo scroll slow - fast Shutter 000-007 Blackout 008-015: Open 016-131 Stroboscope mode, slow - fast 132-139: Open 140-181: Shutter slow open, close fast, slow - fast 182-189: Open 190-231: Shutter slow close, open fast,...
- Page 12 Upright use Should you want to use the ERO Micro Spot in an upright position, make sure it's on a flat, stable surface like a table, DJ booth or bar. The device is equipped with rubber feet that grip the surface underneath it.
- Page 13 Depending on the application and distance, the projected beams may not be in focus. For that reason, the ERO Micro Spot is equipped with a manually adjustable focus. Preferably, the focus should be adjusted when the device is turned off, or carefully while the device is projecting a fixed beam of light and not moving.
- Page 14 DMX lighting troubleshooting If you have a problem with your device, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 15 Signal loss or interference in the Close the DMX circle with a DMX circle terminator or connect a booster after maximum 32 fixtures. The operation mode can not be The device is in Slave mode If the device is in Slave mode, it changed will wait for a master signal unless there is a DMX signal present.
-
Page 16: Technical Specifications
Technical specifications Specifications: - compact LED moving head - metal housing with plastic covers - light source: 10 W CREE white LED - LED display with menu buttons - various operation modes - automatic mode with 4 programs that are adjustable in speed in 9 steps - sound-controlled mode with adjustable sensitivity - master/slave option - pan/tilt inverse option...
