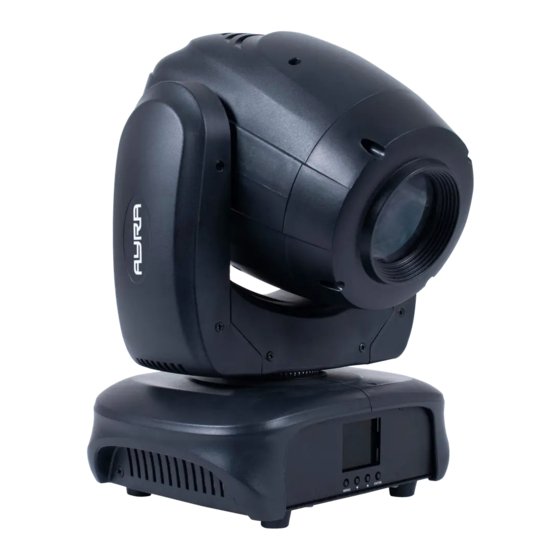

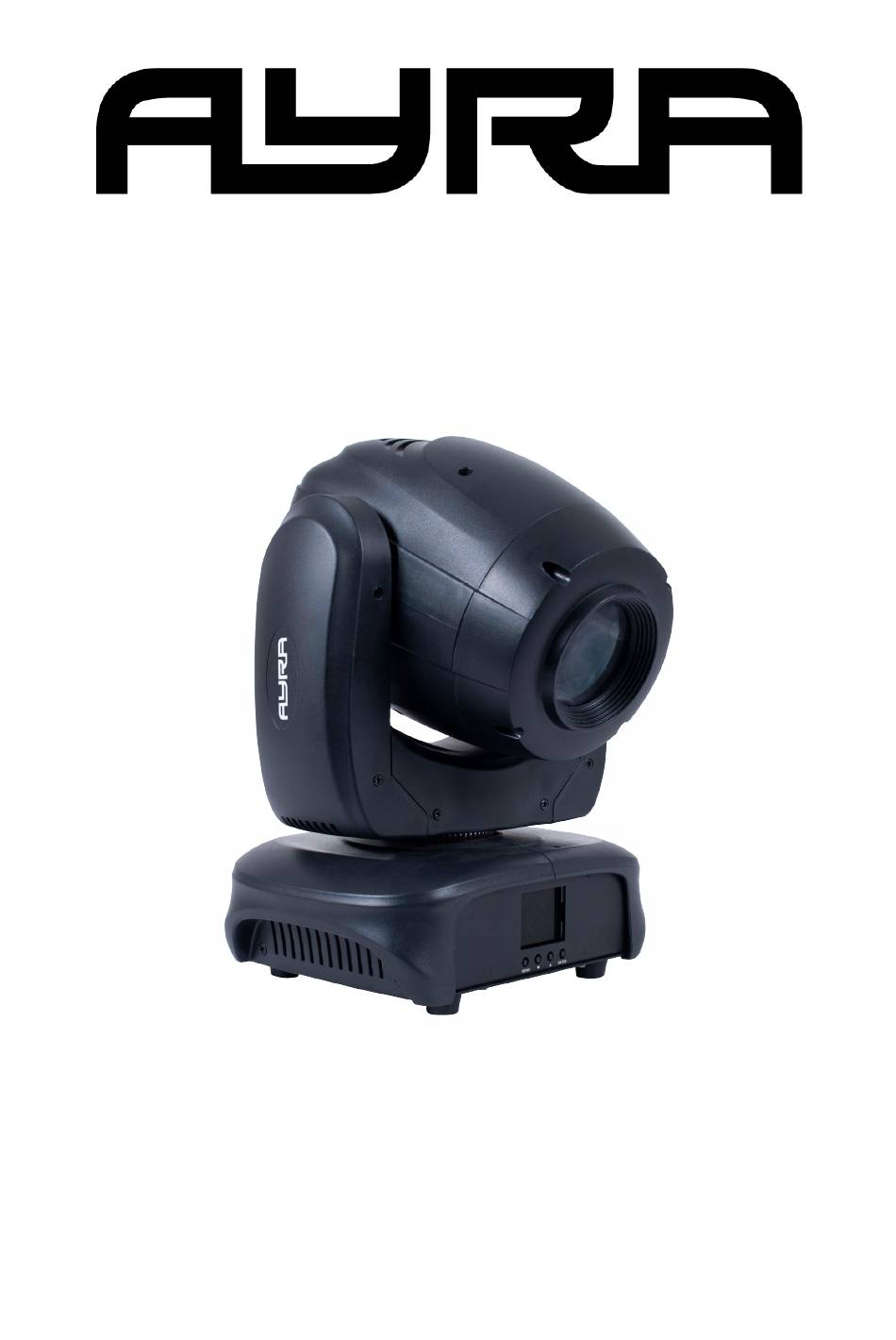

- Page 1 ERO 075 LED Spot Moving Head User Manual De informatie in deze gebruiksaanwijzing kan gewijzigd worden zonder verdere notificatie. Versie: 1.0 Aanmaakdatum en initialen auteur: 21-09-2019 RV Revisiedatum en initialen auteur: -...
- Page 2 Introduction Thank you for purchasing the ERO 075 moving head. This compact and versatile device is packed full of the latest technology and will add an extra special element to any occasion. This manual provides all the information you need to know about the product before you start using it.
- Page 3 Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks.
- Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Only suitable for indoor use: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Overviw and use of this Device 1. Moving head with light output via lens 2. Rubber feet 3. LED display with menu buttons 4. DMX input via 3-pin XLR 5. DMX output via 3-pin XLR 6. Power input with fuse holder 7.
- Page 7 Operation modes and other settings shown on the display can now be adjusted or changed by means of the menu buttons. The ERO 075 has a colour display for access to the various operating modes, as well as user adjustable settings.
- Page 8 DISP: The ‘DISP’ mode lets you change the various display settings: - Language: Chinese, English - Screen saver: Mode 1-3 - Screen rotation: Forward, Auto, Reverse - DMX indication: Mode 1-3 - Screen light: 000-010 SCENE: The ‘Scene’ mode allows you to activate fixed positions and functions of the moving head in order to create a static light image that can be recalled at any time.
- Page 9 ADVA: The Advanced mode contains more additional functionalities that are usually exclusively used by product specialists. - Pan invert (invert horizontal movement) - Tilt invert (invert vertical movement) - Pan / Tilt auto-correction (automatic correction in case of sudden movement) - Pan offset (motor correction of starting point for horizontal movement) - Tilt offset (motor correction of starting point for vertical movement) - Data hold (remember the last received signal in case of signal loss)
- Page 10 perfectly with your DMX circle layout, as well as with the functions you will be using. 14CH mode: Function Value Pan-position min-max 000-255 Pan-position fine min-max 000-255 Tilt-position min-max 000-255 Tilt-position fine min-max 000-255 Pan/tilt speed, fast-slow 000-255 Dimmer 0-100% 000-255 Shutter/Strobe 000-007 Blackout...
- Page 11 Prisma on/off 000-255 Auto mode 001-255 auto mode Reset Hold value 255 until reset De informatie in deze gebruiksaanwijzing kan gewijzigd worden zonder verdere notificatie. Versie: 1.0 Aanmaakdatum en initialen auteur: 21-09-2019 RV Revisiedatum en initialen auteur: -...
- Page 12 Upright use If you want to use the ERO 075 in an upright position, ensure that it is placed on a stable surface like a table, DJ booth or T-bar. The ERO 075 is equipped with rubber feet that grip suitable surfaces.
- Page 13 parts of the device for any signs of corrosion. If corrosion is found, the device needs to be checked thoroughly. DMX terminator In DMX mode, it’s standard practice to place a terminator at the end of a DMX circuit. A DMX terminator is an electrical termination consisting of a 120 Ohm resistor, that’s placed between the second and third pin to eliminate possible data reflections.
- Page 14 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 15 Signal loss or interference in the Close the DMX circle with a DMX circle terminator or connect a booster after maximum 32 fixtures. The operation mode can not be The device is in Slave mode If the device is in Slave mode, it changed will wait for a master signal unless there is a DMX signal present.
- Page 16 Technical Specifications Specifications: - Compact LED moving head - Metal housing with plastic covers - Light source: 75W white LED - Colour display with menu buttons - Various operating modes - Automatic mode with adjustable programmes and speed settings - 10 Custom scenes to store, access and play as a programme - Sound-controlled mode with adjustable sensitivity - Master/Slave mode - Pan/Tilt inverse option...
