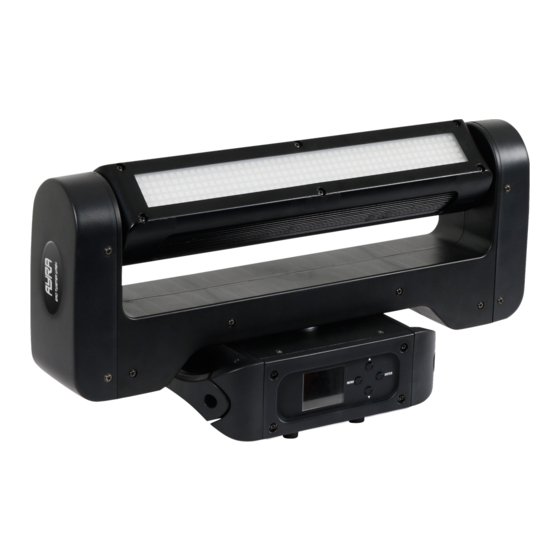

Ayra ERO Twister Wash User Manual

Ayra ERO Twister Wash User Manual

Led moving head with double smd bar light source

Advertisement

Quick Links

ERO Twister Wash
LED Moving Head with Double SMD Bar Light
Source
User Manual
The information in this user manual is subject to change at any time without notice.
Version: 1.0
Date of creation and author's initials: 07-10-2019 RV
Revision date and author's initials: -

Advertisement

loading
Need help?

Need help?

Do you have a question about the ERO Twister Wash and is the answer not in the manual?

Questions and answers

Summary of Contents for Ayra ERO Twister Wash

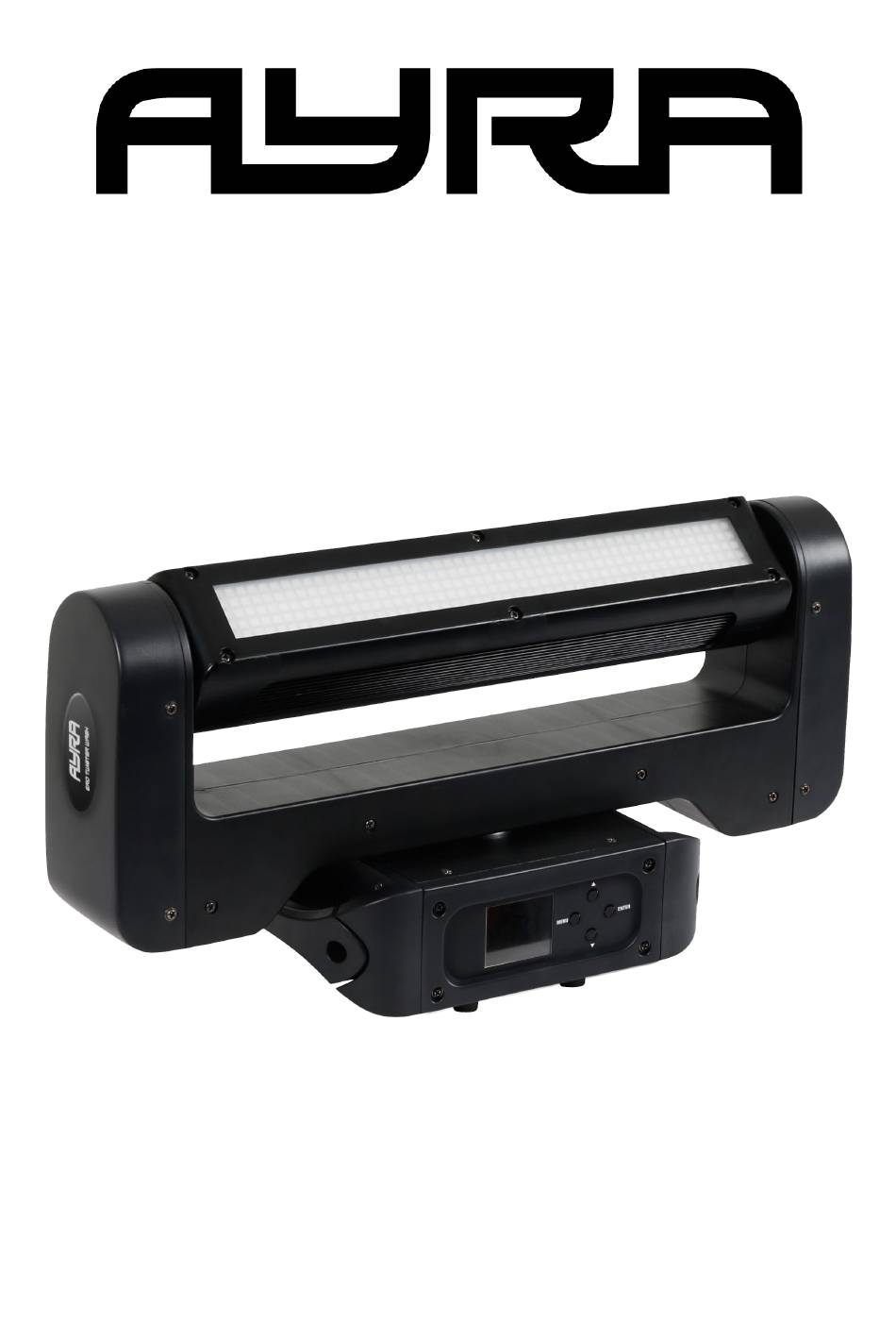

  • Page 1 ERO Twister Wash LED Moving Head with Double SMD Bar Light Source User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
  • Page 2 'Box Contents' are included in the package. In the event that the ERO Twister Wash does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your retailer for assistance.
  • Page 3: Safety Instructions

    Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks! WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks.
  • Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
  • Page 5 Suitable for indoor use only: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
  • Page 6 Operation Guidelines for this Device 1. Moving Bar 2. Light output (on two sides) 3. Colour LED display with menu button 4. Power input via lockable power connector 5. Power output via lockable power connector 6. On / Off switch 7.
  • Page 7 The device cannot be operated while it is still starting up and displays the ‘AYRA’ logo. Once the device has fully started up, it will automatically jump to the last mode and setting. Operation modes and other settings shown on the display can now be adjusted or changed via the menu buttons.
  • Page 8 An explanation of all available functions can be found below: Address: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond to DMX channel 1. Set it to channel 003, then the device will respond to DMX channel 3 and so on.
  • Page 9: Operation Modes

    Operation Modes Please find a clear picture of the differences between all available Operation Modes below and how they are affected by the menu functions listed above. Auto: In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external factors such as DMX signals, master signals or sound.
  • Page 10 156-255 Clockwise rotation, slow to fast Dimmer 0-100% 000-255 SMD 1 Red 0-100% 000-255 SMD 1 Green 0-100% 000-255 SMD 1 Blue 0-100% 000-255 SMD 2 Red 0-100% 000-255 SMD 2 Green 0-100% 000-255 SMD 2 Blue 0-100% 000-255 Shutter and Stroboscope effect 000-007 Shutter Open 008-015 Shutter Closed 016-131 Stroboscope function, slow to fast (1-...
  • Page 11 Shutter and Stroboscope effect 000-007 Shutter Open 008-015 Shutter Closed 016-131 Stroboscope function, slow to fast (1- 20 Hz) 132-139 Shutter Open 140-181 Close effect fast to slow, slow to fast 182-189 Shutter Open 190-231 Close effect slow to fast, slow to fast 232-239 Shutter Open 240-247 Random Strobe 248-255 Shutter Open...
  • Page 12 173-187 Show 12 188-202 Show 13 203-217 Show 14 218-232 Show 15 233-247 Show 16 248-255 Random show Macro Channel preset Show – User’s Colour 000-007 No function ( Please note: this only works if the value of 008-022 Show 1 channel 9 is greater than ‘005’...
  • Page 13 Tilt fine (fine tuning) 000-255 Tilt Movement (unlimited), horizontal movement 000-049 No function 050-149 Anti-clockwise rotation, fast to slow 150-155 Stop Rotation 156-255 Clockwise rotation, slow to fast Dimmer 0-100% 000-255 SMD 1 Red 0-100% 000-255 SMD 1 Green 0-100% 000-255 SMD 1 Blue 0-100% 000-255...
  • Page 14: Installation And Connection Instructions

    When you want to place the ERO Twister Wash in an upright position, make sure that the device is placed on a stable surface such as a table, DJ booth or bar. The ERO Twister Wash is fitted with feet to ensure that it sits stable where it is placed and without danger of shifting or slipping while in use.
  • Page 15 Power Output The ERO Twister Wash is fitted with a lockable, blue power input and a lockable, grey power output. This makes it possible to link multiple devices with one single power supply, wall socket or power block. The fuse fitted in this device is intended to protect that single device only. The input and output of the power supply are directly wired to each other.
  • Page 16 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
  • Page 17 there is a DMX signal present. Set the device to Master to activate the sound-controlled or automated operation modes. Movement is jerky The movements have been It can happen that if very slow programmed in too slowly movements are programmed, the moving head moves from step to step in a jerky manner.
  • Page 18: Technical Specifications

    Technical Specifications Specifications: - Specila LED moving head bar with unlimited movement - Unlimited Pan and Tilt movement with adjustable speed - LED moving head bar fitted with two elongated SMD LED light sources - LED light sources fitted with RGB SMD LEDs - Light source: 500x RGB 5050 SMD LEDs, 0,2W per LED - 2,4"...
