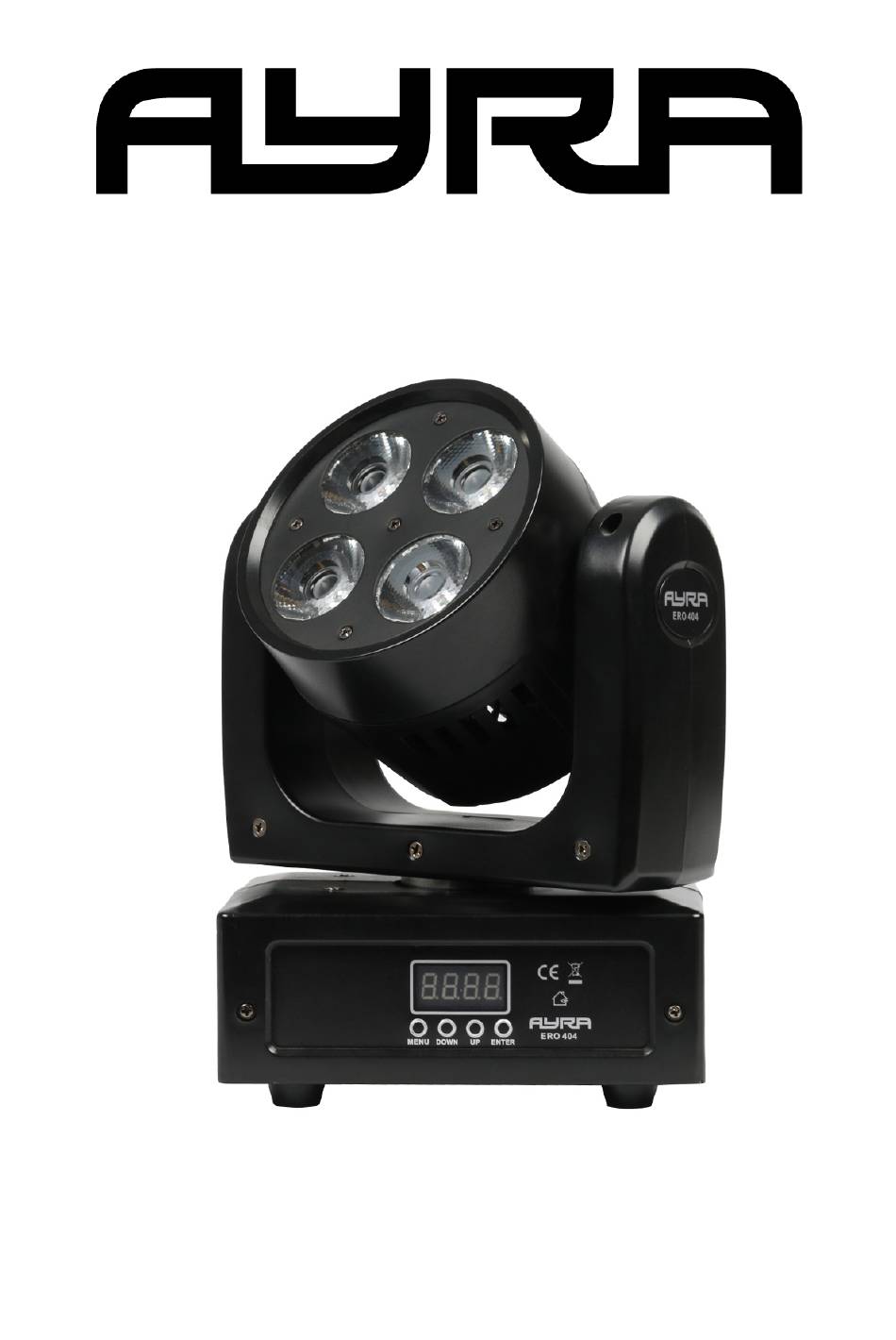

- Page 1 ERO 404 LED moving head User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:18-02-2017 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing the ERO 404 moving head. This compact and versatile device is packed full of the latest technology and will add an extra special element to any occasion. This manual provides all the information you need to know about the product before you start using it.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Only suitable for indoor use: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Guidelines and operation of this device 1. moving head with light output via lens 2. rubber feet 3. LED display with menu buttons 4. DMX input via 3-pin XLR 5. DMX output via 3-pin XLR 6. power input with fuse holder 7.
- Page 7 During calibration, ‘AYRA’ will be shown on the display, which means the device is not ready to be operated. Once the device has fully started up, it will jump to the last-used mode. Operation modes and other settings shown on the display can now be adjusted or changed by means of the menu buttons.
- Page 8 RSET Reset function Reset the device (has the same affect as turning the power off and on again) You'll find an explanation of the various functions below: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond from DMX channel 1.
- Page 9 HOUR: If this device is used professionally or rented, it should be regularly maintained and inspected in between use. The HOUR function shows exactly how long the device has been in use. This amount accumulates over time as long as the device is being used and cannot be manipulated by the user. VERS: This function shows the device's firmware version.
- Page 10 132-139: Open 140-181: Shutter slow open, close fast, slow - fast 182-189: Open 190-231: Shutter slow close, open fast, slow-fast 232-239: Open 240-247: Random strobe 248-255: Open Dimmer red 0-100% 000-255 0-100% Dimmer green 0-100% 000-255 0-100% Dimmer blue 0-100% 000-255 0-100% Dimmer white 0-100% 000-255 0-100%...
- Page 11 Colour macro 000-255 Diverse functions 000-199 No function 200-209 Resets after 3 seconds within these settings 210-239 No function 240-255 Sound-controlled mode The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:18-02-2017 RV Revision date and author's initials: -...
- Page 12 Upright use If you want to use the ERO 404 in an upright position, ensure that it is placed on a stable surface like a table, DJ booth or T-bar. The ERO 404 is equipped with rubber feet that grip suitable surfaces.
- Page 13 parts of the device for any signs of corrosion. If corrosion is found, the device needs to be checked thoroughly. The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:18-02-2017 RV Revision date and author's initials: -...
- Page 14 DMX lighting troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 15 Signal loss or interference in the Close the DMX circle with a DMX circle terminator or connect a booster after maximum 32 fixtures. The operation mode can not be The device is in Slave mode If the device is in Slave mode, it changed will wait for a master signal unless there is a DMX signal present.
-
Page 16: Technical Specifications
Technical specifications - compact LED moving head - light source: 4x 10 W RGBW LEDs - dispersion angle: 17 - LED display with menu buttons - various operation modes - automatic mode with adjustable programs and speed in 9 steps - Sound-controlled mode with adjustable sensitivity - Master/Slave mode (2 slave modes) - Pan/Tilt inverse option...
