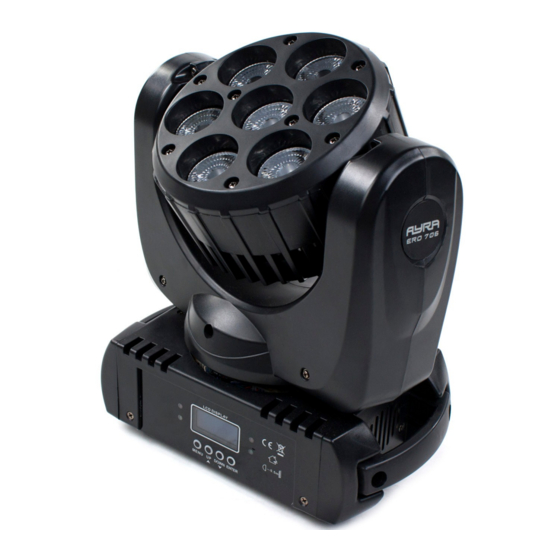

ERO 706
RGBAWUV LED moving head
User manual
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0
Creation date + author initials: 13-05-2015 RV Revision date + author initials:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERO 706 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ayra ERO 706

  • Page 1 ERO 706 RGBAWUV LED moving head User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 13-05-2015 RV Revision date + author initials:...
  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electric shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specific AC current. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electric shocks! WARNING! Be careful when operating this device.
  • Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in ways other than described in this user manual may cause damage and injury. Ayra cannot be held responsible for any damage or injury caused by improper use.
  • Page 4: Symbol Clarification

    going to be serviced. Fuses: - The main fuse of this device can be found on the rear of the device, usually next to the power inlet. - Only replace the fuse for a new one of the same type and rating! Do not use a fuse with a higher or lower rating.
  • Page 5: Box Contents

    Box contents Box contents 1x ERO 706 moving head 1x mounting bracket 1x safety eye bolt 1x mounting hardware (2 bolts and 1 hex wrench) 1x power cable blue Neutrik Powercon to Schuko (3x 1.5 mm²) 1x power cable blue Neutrik Powercon to UK (3x 1.5 mm²) 1x power link cable blue Neutrik Powercon to gray Neutrik Powercon (3x 1.5 mm²)
  • Page 6: Device Overview

    Device overview 1. Beam output 2. Carrying handles 3. Neutrik Powercon power input 4. Neutrik Powercon power output 5. Power switch 6. Fuse cover 7. DMX input (3P XLR) 8. DMX output (3P XLR) 9. Cooling fan 10. LED display with menu buttons and status LEDs Red LED left: DMX receiving OK Yellow LED left: Slave mode OK Red LED right: Master OK...
  • Page 7: Setting Up The Unit

    30 seconds. During start-up the display reads 'Ayra ERO 706' and the fixture can not be used. Do not try to enter the menu during start- up.
  • Page 8 To use the master-slave mode, connect two ERO 706 fixtures together with standard 3P XLR male – 3P XLR female cable (not included). Connect the DMX output of the master to the DMX input of the slave function.
  • Page 9 current temperature levels of the fixture. The temperature of the head and body is measured and displayed in Celsius. Use the up and down buttons to switch between the head and body temperature display. Fan speed: users can change the fixture's fan speed, making the fixtures suitable for any purpose. For example, for regular use, the auto mode can be used to regulate the fan speed automatically.
  • Page 10: Operating Modes

    DMX: The ERO 706 can be connected to a DMX controller with standard 3p XLR male – XLR female cable. In DMX mode, a DMX terminator must be connected to the last fixture at the end of the DMX chain, to prevent reflections in the DMX signal, which could cause flickering and unwanted behaviour from your intelligent fixtures.
  • Page 11 Dimmer blue 0-100% 000-255 Dimmer White 0-100% 000-255 Dimmer Amber 0-100% 000-255 Dimmer UV 0-100% 000-255 CH10 Master dimmer 0-100% 000-255 CH11 Sound active trigger 000-239 – No function 240-255 – Sound active trigger on 15CH mode: Function Values Pan movement 000-255 Pan fine movement 000-255...
  • Page 12: Standing Installation

    Installation and connection requirements The Ayra ERO 706 is a versatile product and can be used in many ways. To use this device as intended and to be sure that the product is used in a safe way, the following requirements must be met during the setup, installation and connection of the device.
  • Page 13 The ERO 706 is equipped with a fuse for its own components. The power input of the device is directly linked to the power output of the device.
  • Page 14 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve the difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
  • Page 15 of your DMX chain Signal loss or distortion in DMX Insert a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed. The fixture does not respond to all Wrong DMX channel mode Check the DMX channel mode of DMX channels...
  • Page 16: Technical Specifications

    Technical specifications powerful RGBAWUV LED beam moving head 7x18 W RGBAWUV 6-in-1 LED chips unique 6-in-1 LED colour technology! use White, Amber and UV to create amazing accents, warm colours and spectacular blacklight effects! projection angle: 35 degrees X/Y movement: 540 / 220 degrees high-quality stepping motors for fast, precise, smooth and silent movement special optics for intense and large light beams auto mode with user defined speed...
  • Page 17 Included accessories: - mounting bracket - bracket hardware - safety eye bolt - Neutrik Powercon to Schuko cable (1.5 m, 3x 1.5 mm²) - Neutrik Powercon to UK cable (1.5 m, 3x 1.5 mm²) - Neutrik Powercon extension cord (3 m, 3x 1.5 mm²) Connectors and wiring schematics: DMX connectors: Electrical wiring:...
