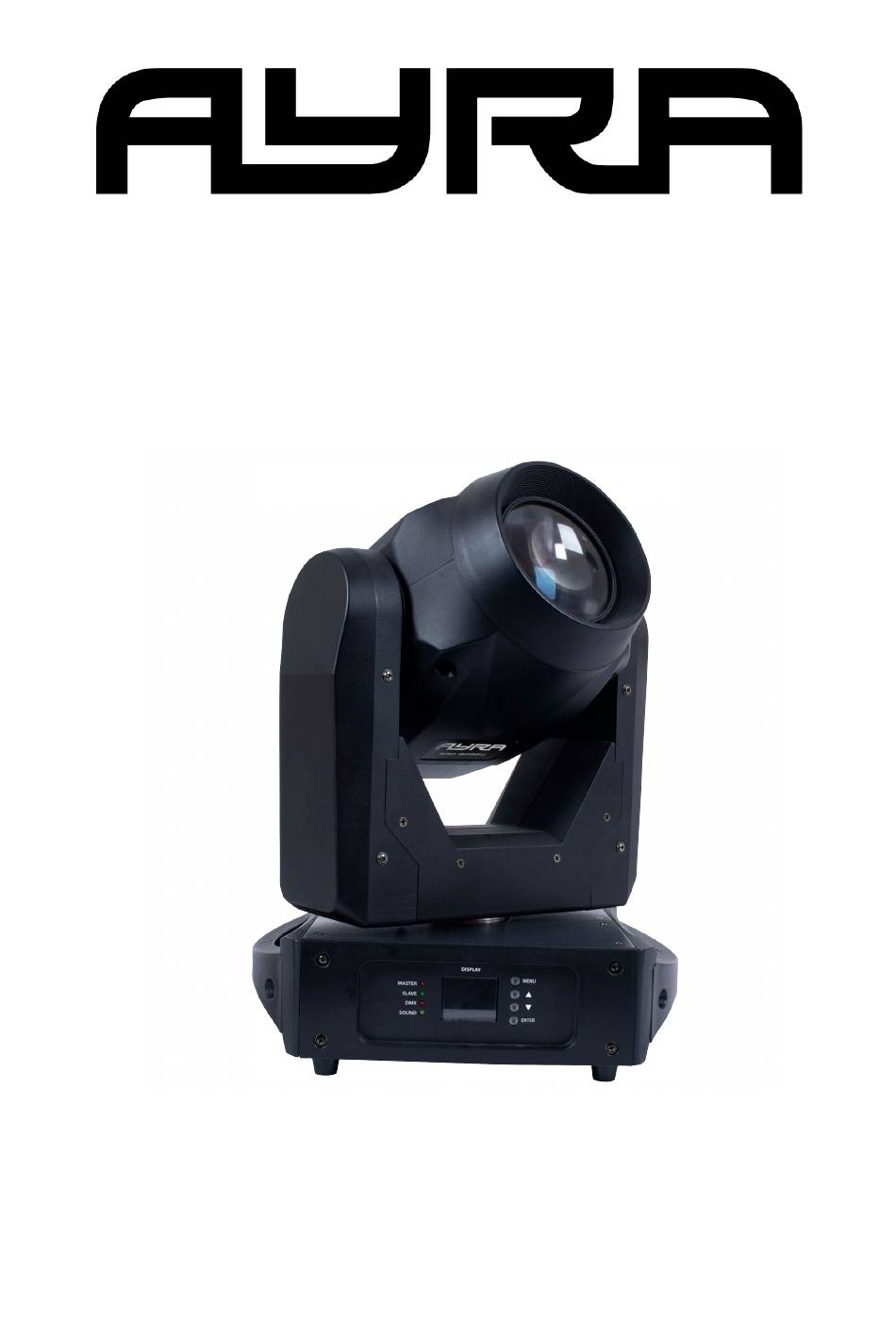

- Page 1 ERO 150BSW LED Moving Head with Beam, Spot and Wash Function User Manual The information shown in this user manual could be subject to change without further notice. Version: 1.1 Date of creation and initials of author: 07-10-2019 RV Date of revision and initials of author: -...
- Page 2 'Box Contents' are included in the package. In the event that the ERO 150BSW does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your retailer for assistance.
- Page 3 Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks! WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks.
- Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Suitable for indoor use only: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Operation Guidelines for this Device 1. Moving head with light-output via lens 2. Display with menu buttons 3. Handle 4. Power input and output via lockable power connector 5. Fuse holder including fuse 6. 3-pin DMX input and output 7. 5-pin DMX input and output 8.
- Page 7 Operation and Mounting To activate the device, plug it into a mains socket. Once it's connected to an active power source, it will turn on automatically. The device cannot be operated while it is still starting up. Once the device has fully started up, it will automatically jump to the last mode and setting.
- Page 8 Displays operating time in Fixture Use Hour hours Fixture Information Displays current firmware (not Firmware Version user adjustable) Pan & Tilt Reset Yes / No Reset functions Effect Reset Yes / No All Reset Yes / No Special functions Factory Settings Yes / No An explanation of all functions can be found below: DMX Settings:...
- Page 9 Show Focus: With the function, the range of the motorised focus can be pre-set to maintain an optimum sharpness of light rays at a distance of 5, 10 or 15 metres. A 5-metre range is optimum for smaller locations. A 15-metre range is optimum for elongated spaces or large locations.
- Page 10 Hidden feature: Home Position Adjustment If it appears that the ERO 150BSW is not 100% aligned with other devices, it is possible to make small corrections. By making these minor corrections per device and in advance, mechanical corrections need not be made during use and time is therefore saved.
- Page 11 17CH mode: Function Value Pan 0 - 540 Degrees 000 - 255 Tilt 0 - 270 Degrees 000 - 255 Pan / Tilt Speed 000 - 255 (fast - slow) Show Mode 000 - 015 No value 016 - 063 Show 1 064 - 127 Show 2 128 - 191 Show 3 192 - 255 Show 4...
- Page 12 049 - 051 Colour 12 052 - 054 Colour 13 055 - 057 Colour 14 058 - 060 Colour 15 061 - 063 Colour 16 064 - 127 Colour Wheel indexing 128 - 189 Anti-clockwise rotation, fast to slow 190 - 193 Stop colour rotation 194 - 255 Clockwise rotation, slow to fast Gobo Wheel 1...
- Page 13 016-131 Slow – fast, Stroboscope function 132 - 139 Open 140 - 181 Slow open, fast close 182 - 189 Open 190 - 231 Slow close, fast open 232 - 239 Open 240 - 247 Random Strobe 248 - 255 Open Dimmer 000 - 255 0-100% Dimmer Special Functions...
- Page 14 Show Mode 000 - 015 No value 016 - 063 Show 1 064 - 127 Show 2 128 - 191 Show 3 192 - 255 Show 4 Pan / Tilt Macro See Channel 5 in 17 Channel Mode Macro Speed 000 - 255 (fast - slow) Colour Wheel See Channel 7 in 17 Channel Mode...
- Page 15 When you want to place the ERO 150BSW in an upright position, make sure that the device is placed on a stable surface such as a table, DJ booth or bar. The ERO 150BSW is fitted with feet to ensure that it sits stable where it is placed and without danger of shifting or slipping while in use.
- Page 16 3-pin and 5-pin DMX via XLR The ERO 150BSW is fitted with both 3-pin and 5-pin XLR ports to link a DMX signal from device to device. These are hard-wired to each other and can be used mutually. DMX terminator and 110 Ohm cables It is best to use a DMX terminitor at the end of your DMX circuit.
- Page 17 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 18 DMX circuit terminator or connect a booster after maximum 32 fixtures. The operation mode can not be The device is in Slave mode If the device is in Slave mode, it changed will wait for a master signal unless there is a DMX signal present. Set the device to Master to activate the sound-controlled or automated operation modes.
- Page 19 Technical Specifications Specifications: - Versatile and professional LED moving head - Beam / Spot / Wash 3-in-1 character - Light source: 150 W LED - Diverse user modes (automatic, sound controlled, DMX, master / slave) - 17 of 20 DMX channels - offset calibration for all step motors Optics and Beam angle - Beam angle: 11 Degrees when fully open...
