- Page 1 ERO 506 RGBAWUV LED moving head User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 20-05-2015 RV Revision date + author initials:...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electric shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC current. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electric shocks! WARNING! Be careful when operating this device. - Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in ways other than described in this user manual may cause damage and injury. Ayra can not be held responsible for any damage or injury caused by improper use.
- Page 4 going to be serviced. Fuses: - The main fuse of this device can be found on the rear of the device, usually next to the power inlet. - Only replace the fuse with a new one of the same type and rating! Do not use a fuse with a higher or lower rating.
-
Page 5: Box Contents
Box contents Box contents 1x ERO 506 moving head 1x power cable IEC C13 to Schuko (3x 1mm²) 1x power cable IEC C13 to UK plug (3x 1mm²) 1x hardware pack containing 1 bracket, 1 safety eye bolt, 1 hex wrench and 2 bolts Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. -
Page 6: Device Overview
Device overview 1. Beam output 2. Cooling fan for head 3. Power input (IEC C14) with integrated fuse holder 4. 3p XLR input for DMX 5. 3P XLR output for DMX 6. LED display with menu buttons 7. Cooling fan for body 8. -
Page 7: Setting Up The Unit
The fixture will start up and show the last chosen setting on the display. For a new product, this is usually the DMX mode with the value set to 001. During start-up the display reads 'Ayra'. After this, the last used mode will be shown and the settings and values can be changed. - Page 8 If the Sound mode is turned off, it is possible to select one of the four built-in shows. After this, you are able to select a desired speed from one of the nine speed modes. A preview is shown by the fixture so you can be sure that the selected speed matches your preferences.
-
Page 9: Operating Modes
DMX: The ERO 506 can be connected to a DMX controller with standard 3p XLR male – XLR female cable. In DMX mode, a DMX terminator must be connected to the last fixture at the end of the DMX chain. This prevents reflections in the DMX signal, which could cause flickering and unwanted behaviour from your intelligent fixtures. - Page 10 Dimmer amber 0-100% 000-255 Dimmer UV 0-100% 000-255 CH10 Master dimmer 0-100% 000-255 CH11 FX mode 000-069 – No function 070-079 – X/Y move, but LED turned off 080-089 – X/Y move stop, LED turned off 090-239 – No function 240-255 –...
- Page 11 Installation and connection requirements The Ayra ERO 506 is a versatile product and can be used in many ways. To use this device as intended and to be sure that the product is used in a safe way, the following requirements must be met during the setup, installation and connection of the device.
- Page 12 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve the difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects or solutions.
- Page 13 of your DMX chain Signal loss or distortion in DMX Insert a DMX booster in your DMX values chain after 32 fixtures or fewer. After a maximum of 32 fixtures the DMX signal needs to be refreshed. The fixture does not respond to all Wrong DMX channel mode Check the fixture's DMX channel DMX channels...
-
Page 14: Technical Specifications

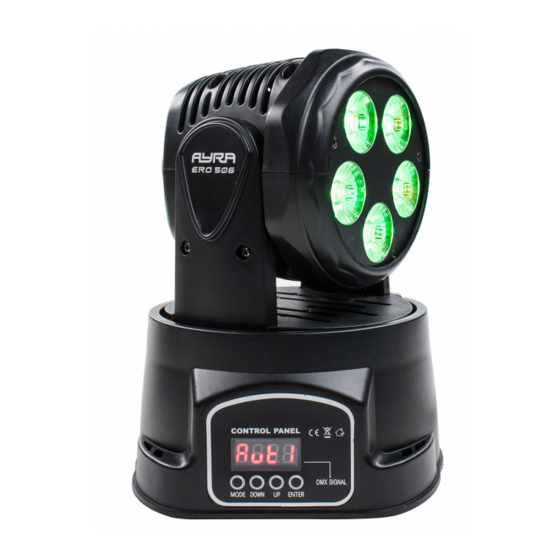

Technical specifications powerful RGBAWUV LED beam moving head 5x18W RGBAWUV 6-in-1 LED chips unique 6-in-1 LED colour technology! use White, Amber and UV to create amazing accents, warm colours and spectacular blacklight effects! projection angle: 45 degrees X/Y movement: 540 / 180 degrees high-quality stepping motors for fast, precise, smooth and silent movement special optics for large, intense light beams auto mode with user defined speed... - Page 15 Connectors and wiring schematics: DMX connectors: Electrical wiring: All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 20-05-2015 RV Revision date + author initials:...
