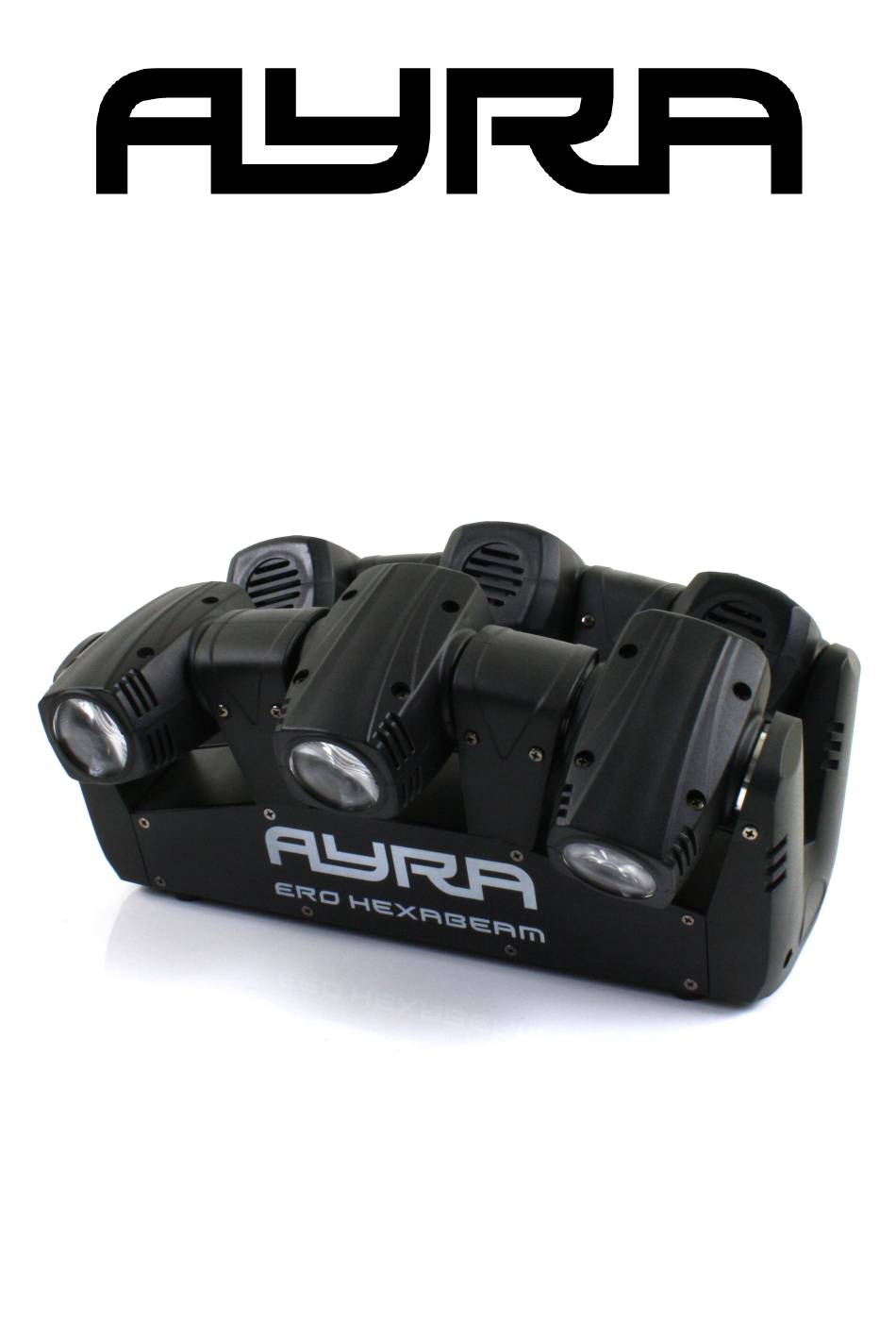

- Page 1 ERO Hexabeam Moving Head LED Light Effect User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -...
- Page 2 'Box contents' are included in the package. In the event that the ERO Hexabeam does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your dealer for assistance.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Only suitable for indoor use: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Guidelines and operation of this device 1. moving head with lens 2. power input IEC C14 with fuse 3. power output IEC C13 (max. 9A) 4. LED display with menu buttons 5. DMX output via 3-pole XLR female connector 6. DMX input via 3-pole XLR male connector 7.
- Page 7 During calibration, ‘AYRA’ will be shown on the display, which means the device is not ready to be operated. Once the device has fully started up, it will jump to the last-used mode. Operation modes and other settings shown on the display can now be adjusted or changed by means of the menu buttons.
- Page 8 You'll find an explanation of the various functions below: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond from DMX channel 1. Set it to channel 003, then the device will respond from DMX channel 3, etc.
- Page 9 Operating modes The following overview is designed to show the differences between the various operation modes that are supported by the above-mentioned menu functions. Auto: In automatic mode, the device is set to a fixed speed and will function according to the preset parameters. The device does not requite input from the built-in microphone, master-slave signals or DMX.
- Page 10 203-217 Show 14 218-232 Show 15 233-247 Show 16 248-255 Sound-controlled mode Speed built-in show 000-255 slow - fast LED chases 000-014 static colour-changer 015-255 colour chases LED chase speed 000-255 slow - fast 12CH Channel Function Values Pan movement head 1 000-255 Colour selection head 1 000-007 Blackout...
- Page 11 Colour selection head 1 000-007 Blackout 008-024 R 025-041 G 042-057 B 058-074: W 075-090: R+G 091-107: R+B 108-123: R+W 124-140: G+B 141-156 G+W 157-173 B+W 174-189 R+G+B 190-206 R+G+W 207-222 R+B+W 223-239 G+B+W 240-255 R+G+B+W Pan movement head 2 000-255 Colour selection head 2 See channel 4...
- Page 12 241-255 Sound-controlled mode Power supply The ERO Hexabeam is equipped with a power input to supply the device with power, but also an output to supply power to other devices, which means you won't need power strips or other power distributors.
- Page 13 Installation and connection requirements Now that you know how the ERO Hexabeam works, it's important to know how to use it correctly and safely, according to the installation and connection requirements. Make sure the device and connection cables are out of reach of children, and that if children are present, they are under adult supervision at all times.
- Page 14 Cleaning and maintenance Clean the exterior of this device monthly with a dry, or slightly damp microfibre cloth. Ensure that the device is unplugged before cleaning it. Check if all the screws are intact and secured and tighten or replace them where needed. Check all metal parts of the device for any signs of corrosion.
- Page 15 DMX lighting troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 16 Signal loss or interference in the Close the DMX circle with a DMX circle terminator or connect a booster after maximum 32 fixtures. The device is not reacting to DMX Incorrect DMX channel mode Check if the device is set to the commands correct DMX channel mode The pan and tilt values do not...
-
Page 17: Technical Specifications

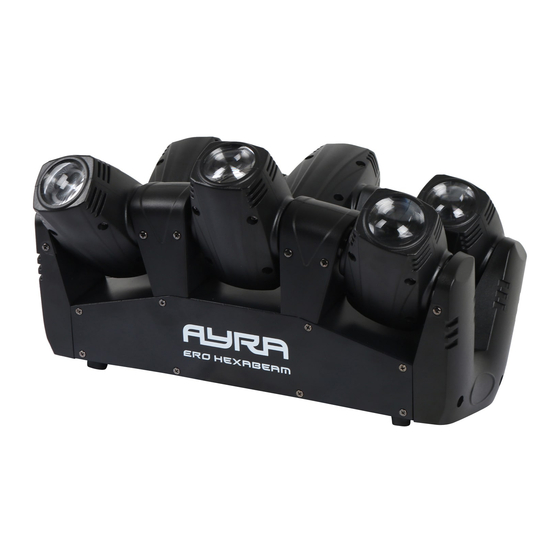

Technical specifications - LED light effect with 6 vertically-moving heads - each moving head is equipped with a 10 W CREE RGBW LED - equipped with projector lens for narrow dispersion angle - comes with quick coupler mounting brackets - various operation modes - LED display with menu buttons - automatic mode with 16 programs that are adjustable in speed in 9 steps - Sound-controlled mode with adjustable sensitivity...
