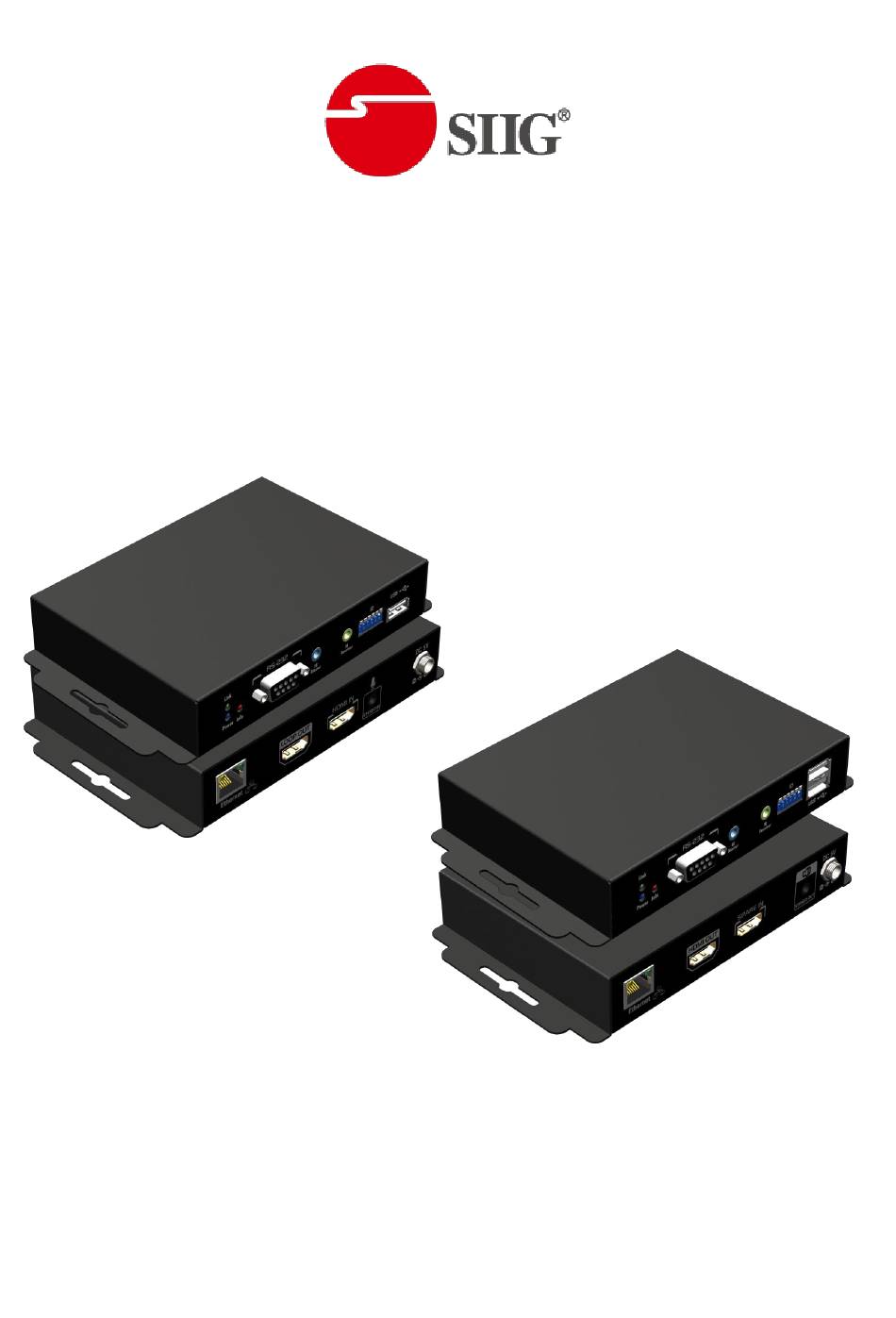

- Page 1 HDMI2.0 over IP Multicast System with Video Support & PoE Support P/N: AV-GM04P3-S1-W...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM04P3-S1-W should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
Ethernet cable, users can readily extend UHD sources from DVD players, Blu-ray Disc player, PS3, PC, and any other HDMI sources broadcasting to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. In addition, AV-GM04P3-S1-W is HDCP compliant, and supports PoE, IR and RS-232 pass-through path. -
Page 4: Package Contents
PACKAGE CONTENTS AV-GM04P3-S1-W-TX AV-GM04P3-S1-W-RX ● 1x AV-GM04P3-S1-W-RX ● 1x AV-GM04P3-S1-W-TX ● 1x IR receiver cable ● 1x IR blaster cable ● 1x User Manual ● 1x User Manual ● 1x IR receiver cable ● 1x 5V2A Power adaptor ● 1x User Manual... -
Page 5: Specifications
SPECIFICATIONS Model Name AV-GM04P3-S1-W Technical AV-GM04P3-S1-W [Tx] AV-GM04P3-S1-W [Rx] Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI HDCP compliance Input Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Output Video support 4K2K@30 (RGB) Latency 2 frames (33 ms) maximum HDMI over UTP Ultra HD (4K2K60)-120m (396ft) [CAT.X]... -
Page 6: Panel Descriptions

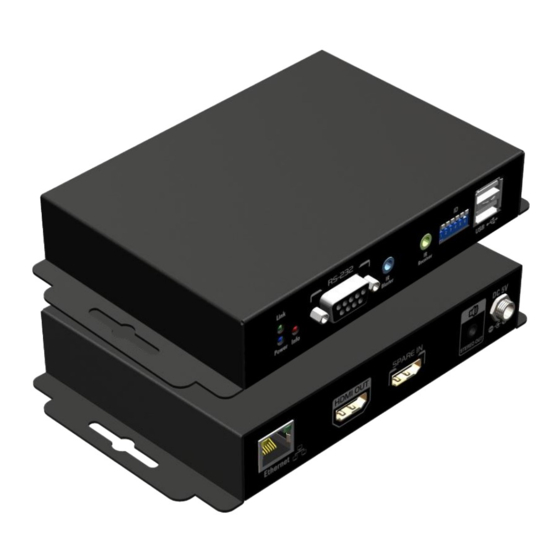

20~90% RH [no condensation] PANEL DESCRIPTIONS Transmitting unit ► AV-GM04P3-S1-W-TX RJ-45: Gigabit Ethernet port HDMI loopout: Connect to a HDMI display with a HDMI male-male cable. HDMI IN: Connects to a HDMI source with a HDMI male-male cable Analog audio line in: Connect to upstream speaker output... -
Page 7: Receiving Unit
Receiving unit ► AV-GM04P3-S1-W-RX RJ-45: Gigabit Ethernet port HDMI OUT: Connect to a HDMI display with a HDMI male-male cable. HDMI IN: Connects to a HDMI source with a HDMI male-male cable Analog audio line out: Connect to downstream headphone output... - Page 8 Notes: TX/RX group ID dip-switch setting 1. For ID=1~63, please refer the table below to set up (Hardware control) 2. For ID=64~1023, please adjust the DIP switch to ID=0, and the real ID can be decided by the external software (Software control) ID Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 ID Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 ↓...
-
Page 9: Connection Diagram
CONNECTION DIAGRAM... -
Page 10: Ir Pass-Through
IR PASS-THROUGH IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices. -
Page 11: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM04P3-S1-W features and specifications is subject to change without further notice.
