Summary of Contents for SIIG AV-GM09L3-S1

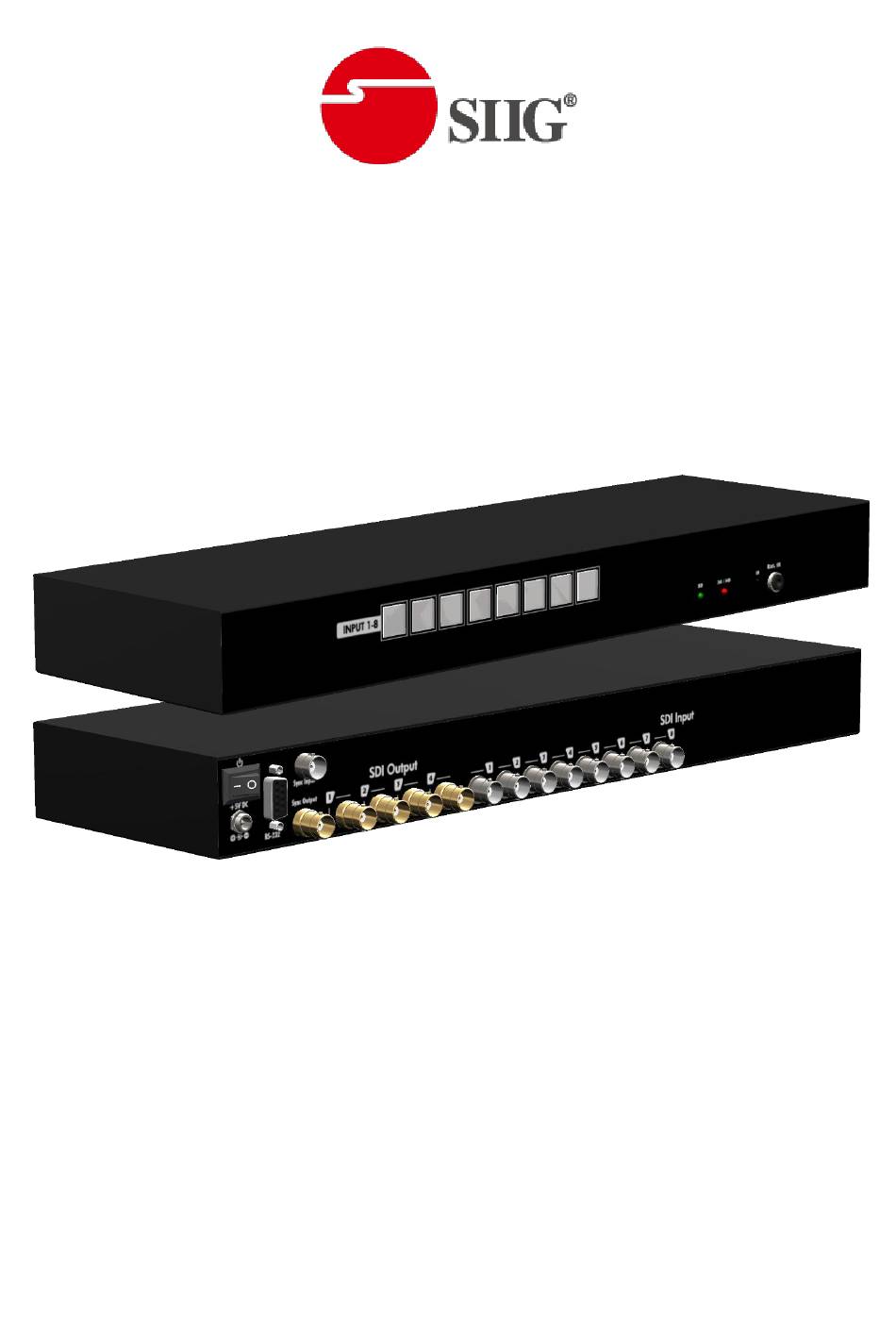

  • Page 1 8x4 3G/HD/SD-SDI Switch P/N: AV-GM09L3-S1...
  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM09L3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Introduction

    HD/SD-SDI bit rates, and the re-transmitted quality is guaranteed. Through RS-232, IR remote, or front panel push button, the control of the SDI switch becomes versatile and easier. AV-GM09L3-S1 offers the most convenient and cost effective means for swift switch and duplication of high quality SDI in the market.
  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM09L3-S1 Technical Role of usage 8x4 switch SDI standards SD-SDI, HD-SDI & 3G-SDI Auto 3G/HD/SD detection SMPTE 259M (270Mbps / 360Mpbs) Supported protocols SMPTE 292M / HDTV (1.485 & 1.485/1.001Gbps) SMPTE 424/425M (2.97 & 2.97/1.001Gbps) Video bandwidth 2.97Gpbs...
  • Page 5: Panel Descriptions

    Power consumption 10 Watt [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] The measurement results are from Tektronix VFM-700 with SDI through 1m (3.3ft) long Belden 1694A. PANEL DESCRIPTIONS Front Panel Button: Input source selection Green LED: SD signal indicator Red LED: 3G / HD signal indicator IR: IR sensor...
  • Page 6 RS-232: Serial channel control BNC: Synchronized signal input BNC: Synchronized serial output (add 75Ω terminator if not connect) BNC: SDI output BNC: SDI input...
  • Page 7: Hardware Installation

    HARDWARE INSTALLATION 1. Connect one SDI device to the output of AV-GM09L3-S1. 2. Connect the SDI input sources to the inputs of AV-GM09L3-S1. 3. Screw on the 5V power supply unit to the locking power jack. 4. Use IR remote, RS-232, or front panel push button to switch between input channels.
  • Page 8: Operation Approach

    OPERATION APPROACH Method A: IR Remote Control Button Function Power On/Off the device Choose input source Input source 1-8 Select Input to Output → press input source (1-8) + Reserved F1, F2, To, +10 Method B: Software Operation When clicking on the executable file, the following dialog will pop-up. User can click the button to choose input source.
  • Page 9: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM09L3-S1 features and specifications is subject to change without further notice.
