Summary of Contents for SIIG AV-GM09G3-S1

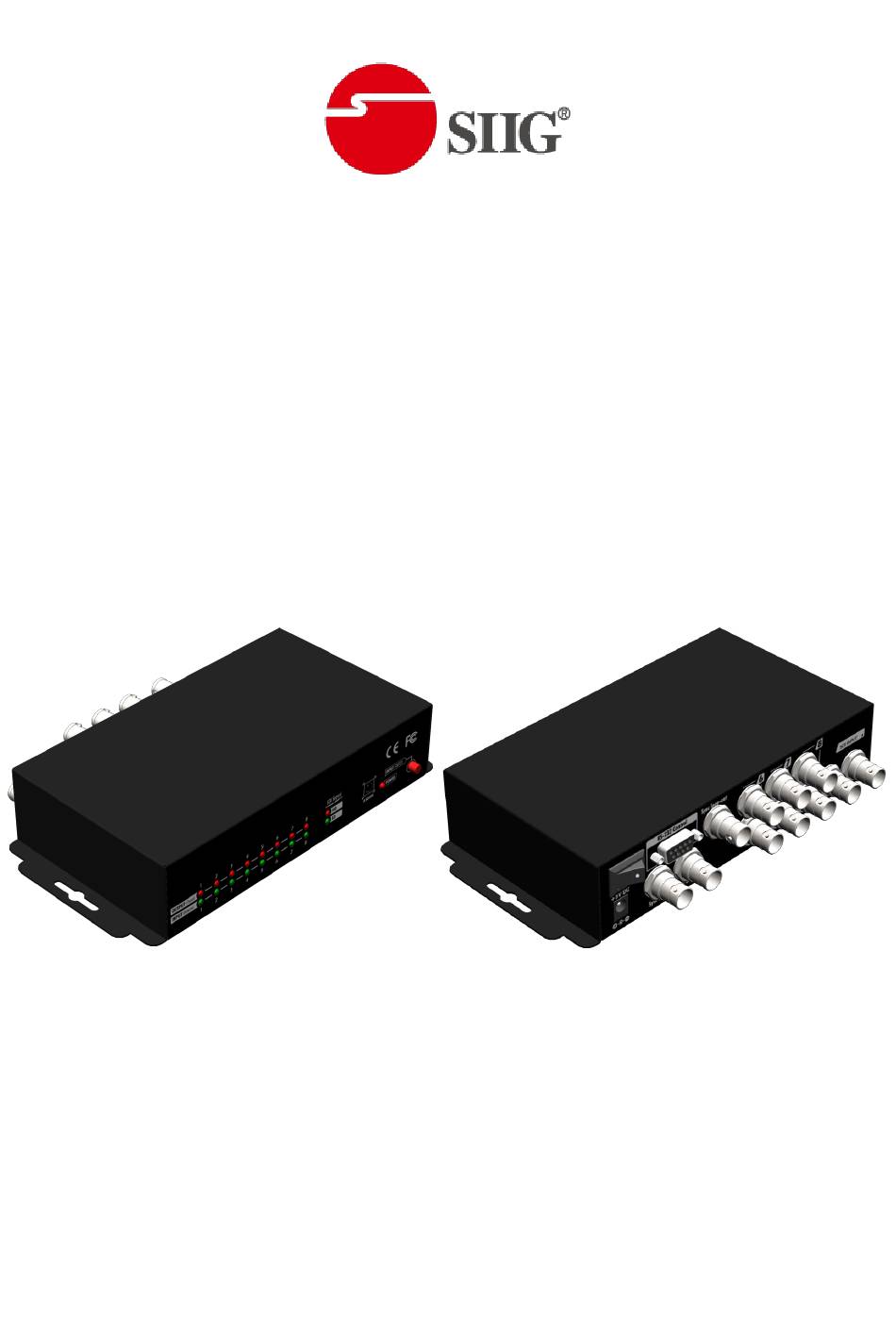

  • Page 1 8x1 HD/SD-SDI Switch P/N:...
  • Page 2 Safety and Notice The AV-GM09H3-S1 8x1 HD/SD-SDI Switch has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the AV-GM09H3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 ● Provides the equalized and reclocked* transmission path up to 300m (1000ft) at SD-SDI or 150m (500ft) at HD-SDI ● Multiple control by RS-232, IR remote, and push button PACKAGE CONTENTS ● 1 x AV-GM09G3-S1 / AV-GM09J3-S1 / AV-GM09H3-S1 / AV-GM09K3-S1...
  • Page 4 ● 1 x IR remote controller ● 1 x 5V power adapter ● 1 x User Manual SPECIFICATIONS Model Name AV-GM09G3-S1 AV-GM09J3-S1 AV-GM09H3-S1 AV-GM09K3-S1 Technical 8x2 matrix Role of usage 5x1 switch 5x2 matrix switch 8x1 switch switch SDI standards SD-SDI &...
  • Page 5 Relative humidity 20~90% RH [no condensation] The measurement results are from Tektronix VFM-700 with SDI through 1m (3.3ft) long Belden 1694A. PANEL DESCRIPTIONS Front Panel Chosen input channel LED Input channel auto detection LED Output HD/SD detection LED IR remote receiver Power indicator LED Push button for input channel switch Rear Panel...
  • Page 6 Synchronized signal loop-out (add 75 terminator if not connect) 5V DC power jack Synchronized SDI signal input SDI output SDI input...
  • Page 7 HARDWARE INSTALLATION 1. Connect SDI enable equipments to the output of AV-GM09H3-S1. 2. Connect the SDI input sources to the inputs of AV-GM09H3-S1. 3. Plug power adapter cable into 5V DC power jack. 4. Use IR remote, RS-232, or front panel push button to switch between input channels. IR REMOTE CONTROL : Reserved : To the right...
  • Page 8 Also, the technical information contained herein regarding the AV-GM09H3-S1 features and specifications is subject to change without further notice. Support For more info or tech support http://www.siig.com/support April, 2018...

This manual is also suitable for:

Av-gm09j3-s1Av-gm09h3-s1Av-gm09k3-s1
