USB 2.0 SlimHub 4000P
Quick Installation Guide

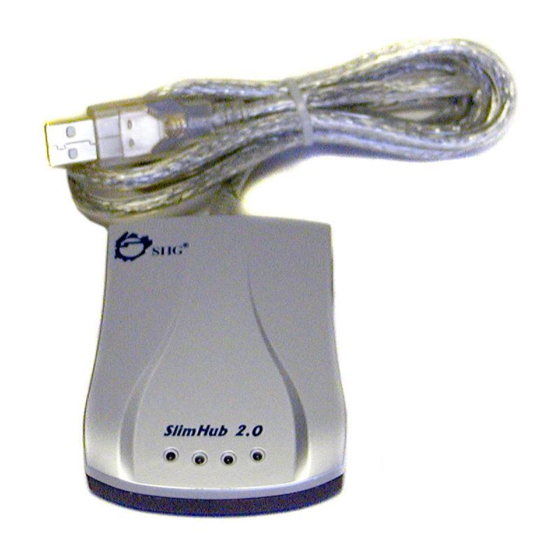

Introducing the USB 2.0 SlimHub 4000P

The USB 2.0 SlimHub 4000P is designed to support USB 2.0
equipped PC computers. This streamlined, mini-size 4-port USB
2.0 hub expands USB connectivity to your computer.
switching power adapter is included.

Features and Benefits

• Compliant with USB Specifications, Revision 2.0
• Provides 4 high-speed USB 2.0 ports for USB device
connections
• Supports high-speed (480Mbps), full-speed (12Mbps), and
low-speed (1.5Mbps) data transfer modes
• Per port over-current detection and protection
• Supports simultaneous operation of multiple high-speed USB
2.0 and USB 1.1 devices
• Hot-swapping feature allows you to attach/detach USB
devices without first powering your computer off
• Works with various types of USB 2.0 and USB 1.1 devices
simultaneously including hubs, removable drives, digital
cameras, scanners, CD-RWs, DVD-RAMs, PC video cameras,
printers, CF/SM/MMC/SD/Memory Stick memory card
readers, and more
Note: USB 1.1 devices are limited to USB 1.1 speeds even when
they are connected to USB 2.0 host adapter or USB 2.0 hubs.

System Requirements

• PC computer with one available USB 2.0 port
• Windows 98 SE/ME/2000/XP
04-0237A
One
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SlimHub 4000P and is the answer not in the manual?

Questions and answers

Summary of Contents for SIIG SlimHub 4000P

  • Page 1 USB 2.0 SlimHub 4000P Quick Installation Guide Introducing the USB 2.0 SlimHub 4000P The USB 2.0 SlimHub 4000P is designed to support USB 2.0 equipped PC computers. This streamlined, mini-size 4-port USB 2.0 hub expands USB connectivity to your computer.
  • Page 2 Package Contents • One USB 2.0 SlimHub 4000P • One switching power adapter • This quick installation guide Layout USB 2.0 Ports 1 & 2 Power/Activity LEDs USB 2.0 Ports 3 & 4 Power Adapter Jack Figure 1. Hub layout Safety Precautions •...
  • Page 3 Installation Important: In order for this USB 2.0 SlimHub 4000P to work properly, the driver for your existing USB 2.0 host adapter has to have support for USB 2.0 hub. However, USB 2.0 host adapters sold earlier than January 2002 may not come with driver which can support USB 2.0 hub.
  • Page 4: Technical Support

    RMA number posted on the outside of the shipping carton. Step 3: Ship the Product You are responsible for the cost of shipping back to SIIG at the following address: SIIG, Inc.
  • Page 5 Fremont, CA 94538-3152 USB 2.0 SlimHub 4000P is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective companies.
  • Page 6 CE Declaration of Conformity Manufacturer's Name SIIG, Inc. 6078 Stewart Avenue Manufacturer's Address Fremont, CA 94538 Declares, that the product Product Names: USB 2.0 SlimHub 4000P Model Number(s): US2248 Product Options: Conforms to the following Product Specifications: EN55022/CISPR22 Class B EN50082-1:1992...
