Summary of Contents for SIIG AV-GM04G3-S1-U

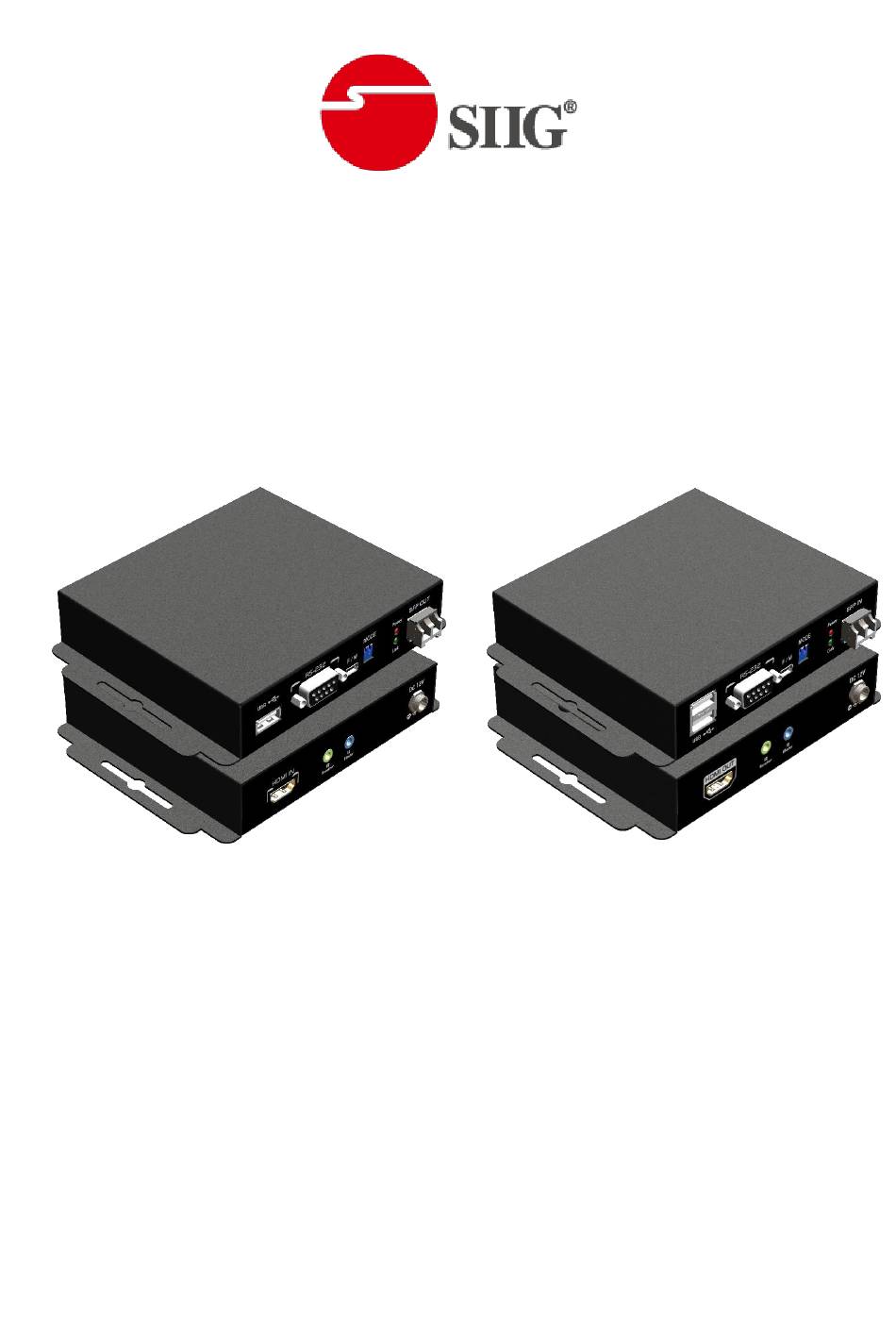

  • Page 1 4K-HDR HDMIover FiberUSB KVM Extender P/N: AV-GM04G3-S1-U...
  • Page 2: Table Of Contents

    4K-HDR HDMI over FiberUSB KVM Extender conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the AV-GM04G3-S1-U should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Introduction

    Users can readily extend Ultra-HD sources from DVD players, Blu-ray Disc player, PS3, PC, and any other HDMI sources broadcasting to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. Besides AV-GM04G3-S1-U is HDCP compliant, and supports IR& RS-232 pass-through path and keyboard/mouse USB signal transmission.
  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM04G3-S1-U Technical AV-GM04G3-S1-U[Tx] AV-GM04G3-S1-U[Rx] Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI 2.0a HDCP compliance HDCP2.2 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) HDMI over fiber Audio support Surround sound [up to 7.1ch] or stereo audio...
  • Page 6: Panel Descriptions

    PANEL DESCRIPTIONS Transmitting unit ► AV-GM04G3-S1-U-TX Front Panel USB[Host]: Connect to a USB port from the computer for keyboard & mouse control RS-232:Connect to serial port device with a DSUB-9 male-male or male-female cable here Mini USB: F/W update Dip Switch [Pin 1]: F/W update mode OFF [] –...
  • Page 7 +12V DC: Connect to a 12V power supply unit...
  • Page 8: Receiving Unit ► Ex-56Sz-U-Rx

    Receiving unit ► AV-GM04G3-S1-U-RX Front Panel USB[Device]: Connect to the USB keyboard & mouse RS-232:Connect to serial port device with a DSUB-9 male-male or male-female cable here Mini-USB: F/W update Dip Switch [Pin 1]: F/W update mode OFF [] – Normal; ON [] – FW update...
  • Page 9 +12V DC: Connect to a 12V power supply unit...
  • Page 10: Connection Diagram

    CONNECTION DIAGRAM...
  • Page 11: Ir Pass-Through

    IR PASS-THROUGH IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER:plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices.
  • Page 12: Hdmi Pin Definition

    HDMI PIN DEFINITION Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock– Pin 3 TMDS Data2– Pin 13 Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on device) Pin 5 TMDS Data1 Shield Pin 15...
  • Page 13: Warranty

    Also, the technical information contained herein regarding the AV-GM04G3-S1-U features and specifications is subject to change without further notice.
