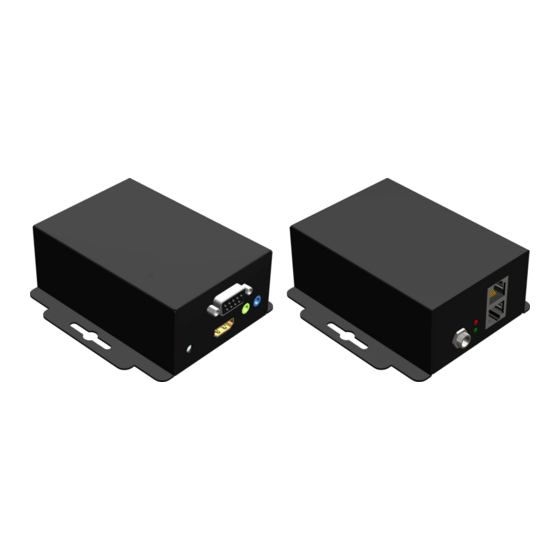

HDMI extender over dual cat.X with bi-directional IR,
RS-232, Auto EDID Learning, ARC and CEC
P/N: AV-GM02S3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM02S3-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIIG AV-GM02S3-S1

  • Page 1 HDMI extender over dual cat.X with bi-directional IR, RS-232, Auto EDID Learning, ARC and CEC P/N: AV-GM02S3-S1...
  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM02S3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Introduction

    The AV-GM02S3-S1 includes two units: transmitting unit AV-GM02S3-S1-TX and receiving unit AV-GM02S3-S1-RX. The transmitting unit is used to capture the input HDMI / DVI signals with IR control packets and carry the signals via one cost effective Cat.5/5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals.
  • Page 4: Specifications

    For over CAT5/COAX transmission, the cable(s) has to be solid, not stranded. Any keystone jack along the transmission path will kill the transmission performance significantly! SPECIFICATIONS Model Name AV-GM02S3-S1 Technical AV-GM02S3-S1[Tx] AV-GM02S3-S1[Rx] Role of usage Transmitter [TX]...
  • Page 5: Panel Descriptions

    Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Transmitting unit ► AV-GM02S3-S1-TX Front Panel 1. Rotary mode 2. RS-232 3. HDMI In 4. IR Receiver 5. IR Blaster Rear Panel 6. +5V DC 7.
  • Page 6: Receiving Unit ► Av-Gm02S3-S1-Rx

    10. ARC Receiving unit ► AV-GM02S3-S1-RX Front Panel 11. Rotary mode 12. RS-232 13. HDMI Out 14. IR Receiver 15. IR Blaster Rear Panel 16. +5V DC...
  • Page 7: Package Contents

    17. Power indicator 18. Signal indicator 19. Cat.X input 20. ARC PACKAGE CONTENTS ● 1x AV-GM02S3-S1 [TX & RX] ● 1x IR blaster ● 1x IR receiver ● 1x DC 12V 1A wall wart ● 1x User Manual CONNECTION DIAGRAM...
  • Page 8: Ir Pass-Through

    IR PASS-THROUGH IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other enf to control the devices corresponding to the IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices.
  • Page 9: Hardware Installation

    1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting unit AV-GM02S3-S1-TX. 2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit AV-GM02S3-S1-RX. 3. Connect IR Blaster/Receiver to both TX and RX units.
  • Page 10: Pin Definition

    PIN DEFINITION HDMI Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock– Pin 3 TMDS Data2– Pin 13 Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on device) Pin 5 TMDS Data1 Shield Pin 15...
  • Page 11: Notice

    NOTICE 1. When adjusting the signal level on the receiver unit, please dial the rotary control switch from MIN to MAX and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten the product life significantly! 2.
  • Page 12: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM02S3-S1 features and specifications is subject to change without further notice.
