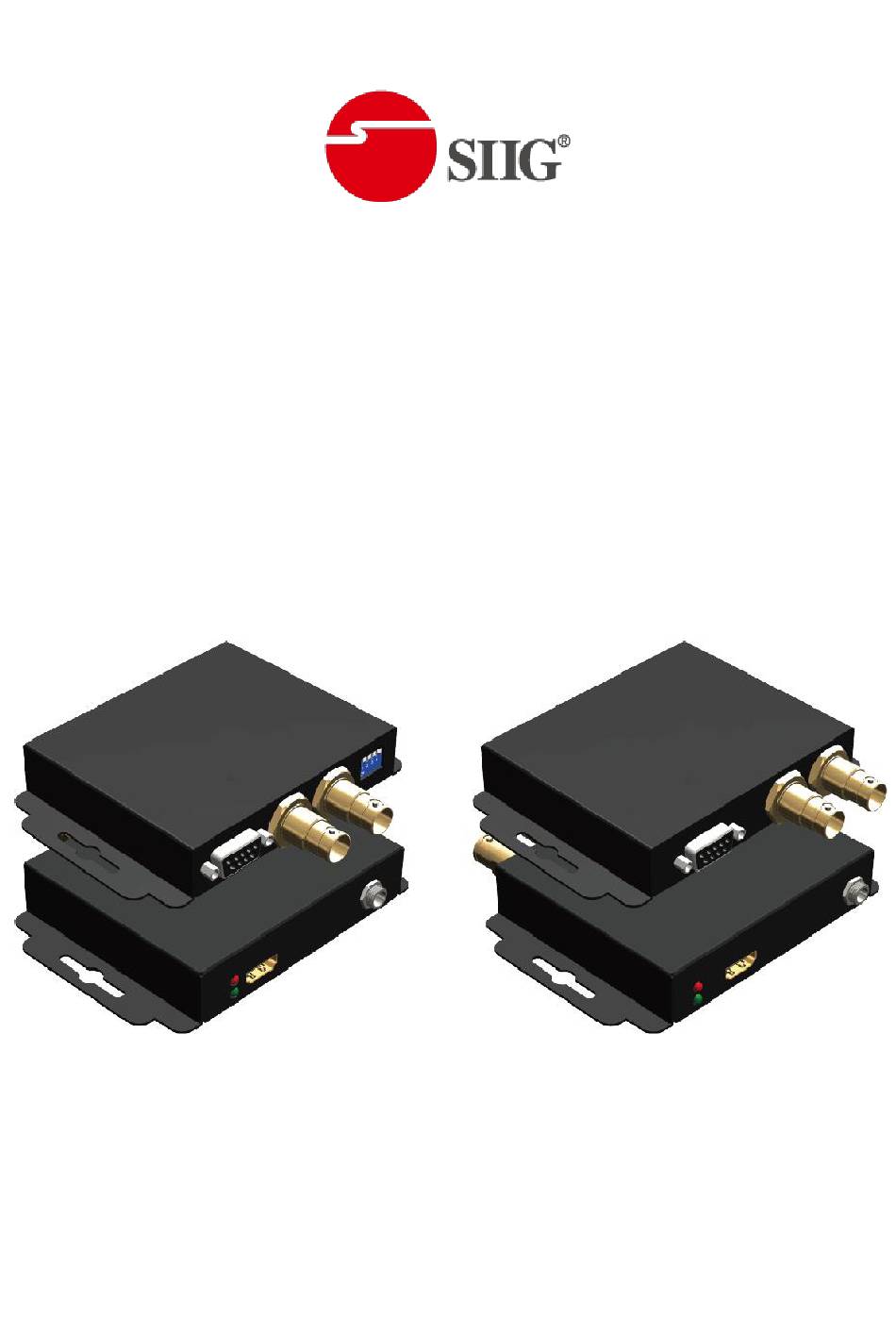

- Page 1 HDMI Extender over Single Coax with RS-232,local loop out, POC(Power over Cable) P/N: AV-GM0463-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM0463-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
90m (295t) in HDTV 1080p format through single coaxial cable. AV-GM0463-S1 is easy to install and works perfectly with Belden 1694A coaxial cables. Other coaxial cables can also work with AV-GM0463-S1 and the transmission distance depends upon the quality and bandwidth of coaxial cables. -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM0463-S1 Technical AV-GM0463-S1[Tx] AV-GM0463-S1[Rx] Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI Deep Color HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 720p / 1080i / 1080p60 (Does NOT support 480p) Audio support Surround sound (up to 7.1ch) or stereo digital audio... - Page 5 Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation]...
-
Page 6: Panel Descriptions
PANEL DESCRIPTIONS Transmitting unit ► AV-GM0463-S1-TX Front Panel 1. RS-232: Connect to PC serial port with a DSUB-9 male-male cable here 2. COAX OUT: Connects to a high standard coaxial cable here 3. COAX OUT: Connects to a high standard coaxial cable here (see DIP Switch section) 4. -
Page 7: Receiving Unit
Receiving unit ► AV-GM0463-S1-RX Front Panel 9. RS-232: Connect to PC serial port with a DSUB-9 male-male cable here 10. COAX IN: Connect to a high standard coaxial cable here 11. Coaxial local loopout Rear Panel 12. POWER: Red light - POWER 13. -
Page 8: Edid Learning
EDID LEARNING 1. Please make sure the Pin #1 - Pin #2 of DIP switch is at On-On [ - ]. 2. Connect the HDMI display to the HDMI port of TX. 3. Power on TX. 4. The green LED in the transmitting module will light up indicating the EDID learning procedure is complete. -
Page 9: Eye Pattern
EYE PATTERN... -
Page 10: Hdmi Pin Definition
TMDS Clock+ NOTICE Since AV-GM0463-S1 is sensitive to the HDMI source’s input jitters, the input HDMI signals with larger jitters will shorten the transmission distance hugely, especially for full HD 1080p@60! 1. The lab testing result shows that Belden 1694A coaxial cables can transmit HDMI signals up to 90m (295ft). -
Page 11: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM0463-S1 features and specifications is subject to change without further notice.
