Summary of Contents for SIIG AV-GM04G3-S1

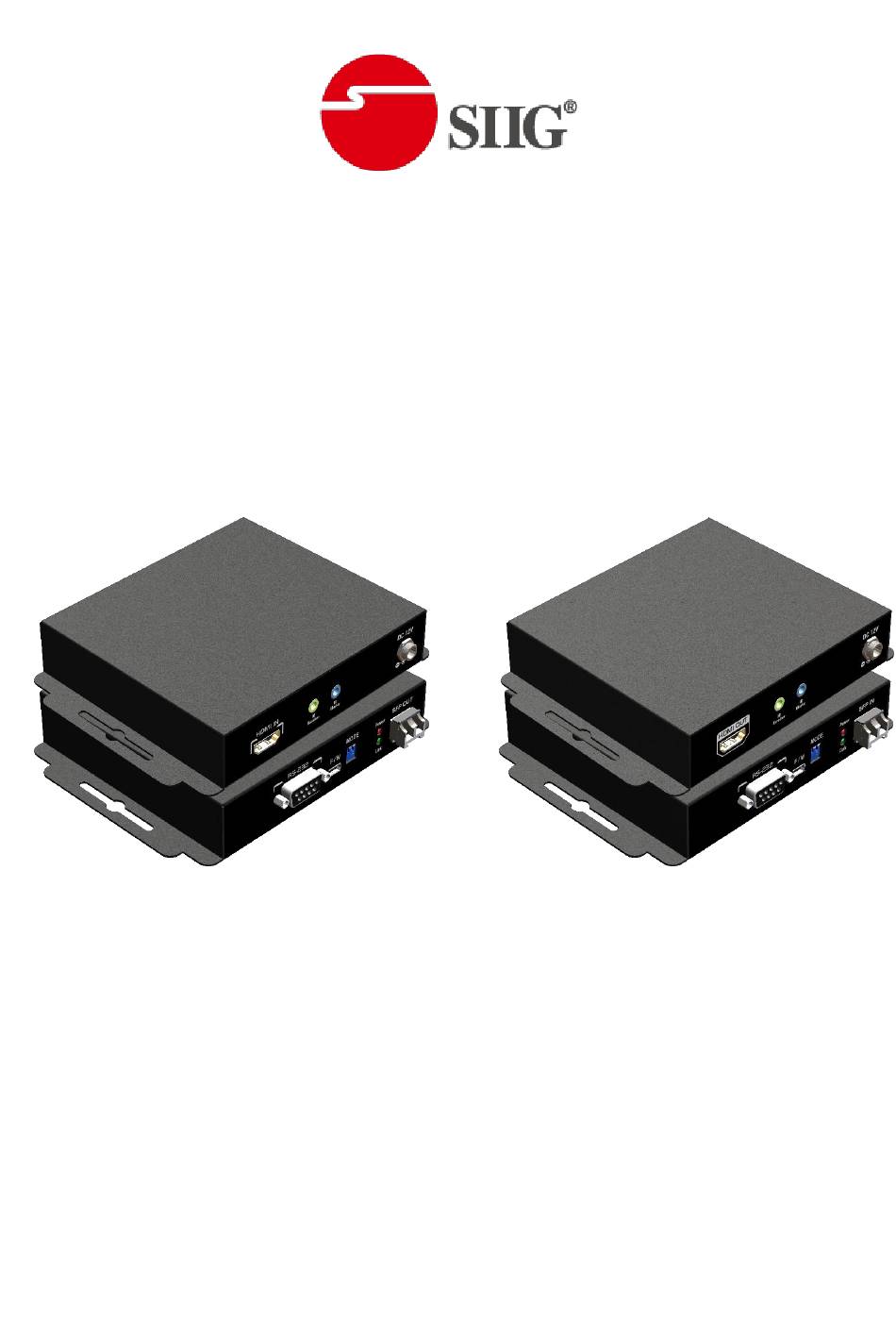

- Page 1 4K-HDR HDMIover FiberExtender P/N: AV-GM04G3-S1...
-
Page 2: Table Of Contents
4K-HDR HDMI over Fiber Extender to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the AV-GM04G3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
Ultra-HD sources from DVD players, Blu-ray Disc player, PS3, PC, and any other HDMI sources broadcasting to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. Besides AV-GM04G3-S1 is HDCP compliant, and supports IR and RS-232 pass-through path. FEATURES ●... -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM04G3-S1 Technical AV-GM04G3-S1[Tx] AV-GM04G3-S1[Rx] Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI 2.0a HDCP compliance HDCP2.2 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) HDMI over fiber Audio support Surround sound [up to 7.1ch] or stereo audio... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Transmitting unit ► AV-GM04G3-S1-TX Front Panel HDMI IN:Connect to a HDMI source with a HDMI male-male cable IR Receiver:Infrared 3.5mm socket for plugging in the extension cable of IR receiver IR Blaster:Infrared 3.5mm socket for plugging in the extension cable of IR blaster... -
Page 7: Receiving Unit ► Ex-56Sz-Rx
Receiving unit ► AV-GM04G3-S1-RX Front Panel HDMI OUT:Connect to a HDMI display with a HDMI male-male cable IR Receiver:Infrared 3.5mm socket for plugging in the extension cable of IR receiver IR Blaster:Infrared 3.5mm socket for plugging in the extension cable of IR blaster... -
Page 9: Connection Diagram
CONNECTION DIAGRAM... -
Page 10: Ir Pass-Through
IR PASS-THROUGH IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices. - Page 11 You can buy any IR extension cables in the market that are compatible to the definition of the IR sockets for the matrix if necessary for replacement use. However, IR cables longer than 2m (6-ft) may not work.
-
Page 12: Hdmi Pin Definition
HDMI PIN DEFINITION Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock– Pin 3 TMDS Data2– Pin 13 Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on device) Pin 5 TMDS Data1 Shield Pin 15... -
Page 13: Warranty
Also, the technical information contained herein regarding the AV-GM04G3-S1 features and specifications is subject to change without further notice.
