Internal Display - Nikon Prostaff 1000i Instruction Manual

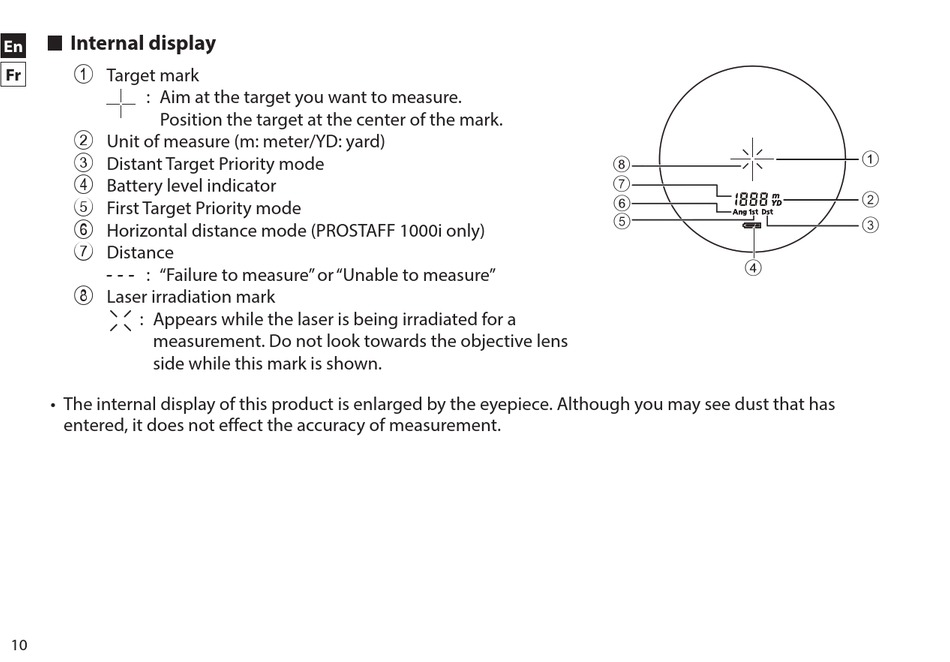

„ Internal display
„
En
Fr 1 Target mark
: Aim at the target you want to measure.
Position the target at the center of the mark.
2 Unit of measure (m: meter/YD: yard)
3 Distant Target Priority mode
4 Battery level indicator
5 First Target Priority mode
6 Horizontal distance mode (PROSTAFF 1000i only)
7 Distance
: "Failure to measure" or "Unable to measure"
8 Laser irradiation mark
: Appears while the laser is being irradiated for a
measurement. Do not look towards the objective lens
side while this mark is shown.
• The internal display of this product is enlarged by the eyepiece. Although you may see dust that has
entered, it does not effect the accuracy of measurement.
10
8
7
6
5
4
1
2
3
