Nikon Forestry Pro II - 6x21 Laser Rangefinder/Hypsometer Manual

Description of parts and indicators

Nomenclature/Composition

1. MODE button
2. PWR button (POWER ON/Measurement button)
3. 6× monocular eyepiece
4. Eyecup/Diopter adjustment ring
5. Diopter index
6. Strap eyelet
7. Battery-chamber cover
8. Battery-chamber cover "Open" indication
9. Monocular objective lens/Laser emission aperture
10. External display
11. Invisible laser detector aperture
12. Product number label
13. Indication

Composition

• Body ×1
• Case ×1
• Strap ×1
• Lithium battery (CR2) ×1

Indicators

Internal display

1. Measurement display mode^*1
2. Distance or angle^*2 (sub-indicator)
   : "Failed to measure" or "Unable to measure"
3. Unit of measure (°: angle in degrees/m: meter/YD: yard/ft: feet)
4. Target mark
   : Aim at the target you want to measure. Position the target at the center of the mark.
5. Laser emission mark
   : Appears while the laser is being emitted for a measurement. Do not look towards the objective lens side while this mark is shown.
6. Unit of measure (m: meter/YD: yard/ft: feet)
7. Target Priority mode (1st: First Target Priority mode/ Dst: Distant Target Priority mode)
8. Battery level indicator
9. Log indicator^*3
10. Distance or height *2 (main indicator)

^*1 See "The measurement display mode" for more information.
^*2 Varies depending on the measurement display mode.
^*3 See "Log indicator" and "Enabling or disabling the log function (F4)" for more information.

• The internal display of this product is enlarged by the eyepiece. Although you may see dust that has entered, it does not affect the accuracy of measurement.

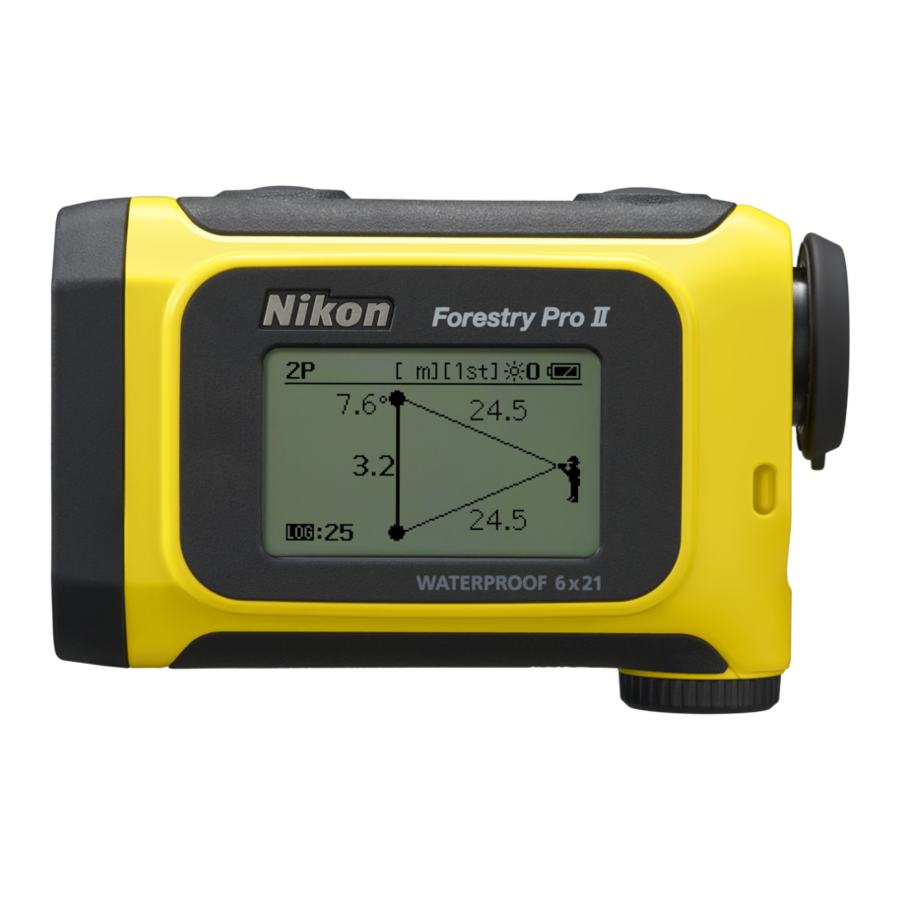

External display

When measuring upward

When measuring downward

1. Measurement display mode^*1
2. Unit of measure (m: meter/YD: yard/ft: feet)
3. Target Priority mode (1st: First Target Priority mode/ Dst: Distant Target Priority mode)
4. External display backlight level
5. Battery level indicator
6. Actual distance
7. Horizontal distance
8. Log indicator^*2
9. Log number^*2
10. Height
11. Angle

^*1 See "The measurement display mode" for more information.
^*2 See "Log indicator" and "Enabling or disabling the log function (F4)" for more information.

Log indicator

Internal display	External display	Description
Blinks.	Blinks.	The log function is enabled but new logs are not saved because the maximum of 250 logs has already been saved.
Displayed continuously.	Displayed continuously.	The log function is enabled. If the measurement is successful, the log number is displayed on the external display.
Not displayed.	Not displayed.	The log function is disabled.

Inserting the battery

Type of battery

3V CR2 lithium battery ×1

Inserting the battery

1. Rotate the battery-chamber cover counterclockwise to open it.
2. Insert the battery with the positive (+) and negative (–) terminals oriented correctly as described on the label in the battery chamber.
3. Attach the battery-chamber cover, rotate the cover clockwise, and secure it firmly.

• The battery-chamber cover may be difficult to rotate because this product uses a rubber seal to maintain its waterproof capabilities.

Battery level indicator

Internal display		External display		Description
	After power on, displays for 2 seconds only.		Displayed continuously.	Sufficient power available.
	After power on, displays for 2 seconds only.		Displayed continuously.	Power getting low. Prepare to replace the battery.
	Displayed continuously.		Displayed continuously.	Low. Battery should be replaced with a new one.
	Blinks. After blinking 3 times, automatically powers off.		Blinks. After blinking 3 times, automatically powers off.	The battery is empty. Replace the battery.

Navigating the menus

• Operating the MODE button
  There are two ways to press the MODE button. Operate the button while following the descriptions in this manual.
  • "Press and hold" means to continue pressing the button for 1.5 seconds or longer.
  • "Press" means to press the button quickly (less than 1.5 seconds).

Changing the distance display unit (F1)

For the display unit of the measurement results, select YD (yards), ft (feet), or m (meters). Factory default setting is YD (yard).

1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.

• You can now change the distance display unit.

3. The setting switches every time you press the PWR button.


• If you press and hold the MODE button or do not operate the buttons for about 30 seconds, the displayed setting is saved and the Laser Rangefinder returns to standby. If you do not operate the buttons for about another 30 seconds, the Laser Rangefinder turns off.
• The setting is saved even when the Laser Rangefinder is turned OFF.

Changing the target priority mode (F2)

This Nikon Laser Rangefinder employs the First Target Priority/ Distant Target Priority switching system.
Factory default setting is First Target Priority mode.

1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.
3. Press the MODE button once.

• You can now change the target priority mode.

4. The setting switches every time you press the PWR button.


• If you press and hold the MODE button or do not operate the buttons for about 30 seconds, the displayed setting is saved and the Laser Rangefinder returns to standby. If you do not operate the buttons for about another 30 seconds, the Laser Rangefinder turns off.
• The setting is saved even when the Laser Rangefinder is turned OFF.

• First Target Priority mode and Distant Target Priority mode
  When measuring overlapping subjects:
  First Target Priority mode displays the distance of the closest subject and Distant Target Priority mode displays that of the farthest subject.

Changing the external display backlight level (F3)

Adjust the brightness of the external display. The factory default setting is 3 (High). You can change the backlight level from 0 (off ) to 3 (high).

1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.
3. Press the MODE button twice.
   • You can now change the external display backlight level.
4. The setting switches every time you press the PWR button.


• If you press and hold the MODE button or do not operate the buttons for about 30 seconds, the displayed setting is saved and the Laser Rangefinder returns to standby. If you do not operate the buttons for about another 30 seconds, the Laser Rangefinder turns off.
• The setting is saved even when the Laser Rangefinder is turned OFF.

Enabling or disabling the log function (F4)

You can enable or disable the measurement log function. The factory default setting is On.

• If the measurement is successful, the log number is displayed on the external display. The number corresponds to the number in the log list.
• A maximum of 250 logs can be saved. When the log indicator on both the internal and external display blinks, new logs cannot be saved. Delete logs using F6.

1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.
3. Press the MODE button three times.

• You can now change the setting.

4. The setting switches every time you press the PWR button.


• If you press and hold the MODE button or do not operate the buttons for about 30 seconds, the displayed setting is saved and the Laser Rangefinder returns to standby. If you do not operate the buttons for about another 30 seconds, the Laser Rangefinder turns off.
• The setting is saved even when the Laser Rangefinder is turned OFF.

Viewing the log list (F5)

You can view the measurement log on the external display.

1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.
3. Press the MODE button four times.
4. Press the PWR button to enter the log list mode.

• Every time you press the PWR button, the page changes.
• Every time you press the MODE button, the page changes in reverse.

  Press the PWR button.
  Press the MODE button.

1. Log number
2. Measurement result
3. Measurement display mode

• If you press and hold the MODE button or do not operate the buttons for about 30 seconds, the Laser Rangefinder returns to standby. If you do not operate the buttons for about another 30 seconds, the Laser Rangefinder turns off.
• A maximum of 250 logs (50 pages) can be displayed.

Deleting all logs (F6)

1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.
3. Press the MODE button five times.
4. Press the PWR button.
5. The message "Log delete?" is displayed on the external display.


• Press and hold the PWR button to delete all logs. Data that has been deleted cannot be recovered.
• Press the MODE button to cancel the deletion.

6. The Laser Rangefinder returns to the "F6 Log delete" screen.

• If you press the MODE button or do not operate the buttons for about 30 seconds, the Laser Rangefinder returns to standby. If you do not operate the buttons for about another 30 seconds, the Laser Rangefinder turns off.

Operation diagram of the setting menus

Press and hold the MODE button.
Press the MODE button.
Press the PWR button.

• If you press and hold the MODE button or do not operate the buttons for about 30 seconds while operating the setting menus, the Laser Rangefinder returns to standby. If you do not operate the buttons for about another 30 seconds, the Laser Rangefinder turns off.

Measurement

Controls, adjustments or usage of procedures other than those specified herein may produce negative effects or damage to your health due to laser radiation.

• Before measuring, be sure to confirm each menu setting. See "Navigating the menus" for more information.

Adjusting the focus of the internal display

If the internal display is difficult to see, adjust the focus with the following procedure.

1. Press the PWR button to turn on the power.
2. Look through the eyepiece and rotate the diopter adjustment ring until the internal display comes into focus.


The measurement display mode

The following six modes are available. You can confirm the measurement results on both the internal and external display. The external display shows more detailed information.

Changing the measurement display mode

1. Press the PWR button to turn on the Laser Rangefinder.
2. The mode switches every time you press the MODE button.


• To start measuring with the displayed mode, press the PWR button.
• If you do not operate the buttons for about 30 seconds, the displayed setting is saved and the Laser Rangefinder turns off.
• The setting is saved even when the Laser Rangefinder is turned OFF.

Measuring

Actual distance mode is used here as an example.

1. Press the PWR button to turn on the power.

• If you do not operate the buttons for about 30 seconds, the power turns off automatically.

2. Aim at the target.
   Position the center of the target mark on the target.

3. Press the PWR button to measure.

• After measurement, the result is displayed for approx. 30 seconds, and power automatically turns off.

  Press the PWR button while the power is on to measure again.
• See "The measurement display mode" for more information on the display content of each mode.
• To check the measurement log later, take a note of the log number displayed on the external display. The number corresponds to the number in the log list.

Continuous measurement

In Actual distance, Horizontal distance, Height, and Angle mode, you can measure continuously up to approx. 8 seconds by pressing and holding down the PWR button. During measurement, the measured result is displayed consecutively while the laser emission mark is flashing. If you release your finger from the button, continuous measurement stops.
Note: The last measured result is the only log saved and you can check it in the log list. Result errors are not saved.

Measuring with 2 points mode

Before starting the measurement, set the measurement display mode to "2 points mode".

1. Press the PWR button to turn on the power.

• When the laser rangefinder is on standby, Hgt flashes in the internal display.


2. Aim at the first point of the target, and then press the PWR button to measure.

• The measurement result of the first point is displayed as shown below.

• Hgt stops flashing and +Hgt2 starts flashing.

3. Aim at the 2nd point of the target, and then press the PWR button to measure.

• +Hgt2 stops flashing and the measurement result is displayed.

Measuring with 3 points mode

Before starting the measurement, set the measurement display mode to "3 points mode". Perform measurement three times in the order of , , and in the illustration on the right. Points and can be reversed.

1. Press the PWR button to turn on the power.

• When the laser rangefinder is on standby, Hor flashes in the internal display.

2. Aim at the first point of the target ( ), and then press the PWR button to measure.

• The measurement result (horizontal distance to the first point) is displayed as shown below.

• Hor stops flashing and Hgt starts flashing.



3. Aim at the 2nd point of the target ( ), and then press the PWR button to measure.

• The measurement result (Ang ( ) and Hgt ( )) is displayed as shown below.

• Hgt stops flashing and +Hgt2 starts flashing.


4. Aim at the 3rd point of the target ( ), and then press the PWR button to measure.

• +Hgt2 stops flashing and the measurement result (Ang ( ) and Hgt ( )) is displayed.

Technical notes

Specifications

Measurement range (actual distance)*1			Distance: 7.5-1,600m/8-1,750 yd./25-5,250 ft Angle: ±89º
Maximum measurement distance (tree)*1			1,100m/1,200 yd./3,600 ft
Display steps (increment)	Internal Display	Act (Actual distance)	Main indicator: every 0.1 m/yd./ft Sub-indicator: every 0.1 m/yd./ft (shorter than 999.9 m/yd./ft) every 1.0 m/yd./ft (1,000.0 m/yd./ft and over)
		Hor (Horizontal distance) Hgt (Height)	Every 0.1 m/yd./ft
		Ang (Angle)	Every 0.1º
	External Display	Actual distance Horizontal distance Height	Every 0.1 m/yd./ft
		Angle	Every 0.1º
Accuracy (actual distance)*2			±0.3 m/±0.3 yd./±0.9 ft (shorter than 1,000 m/1,000 yd./3,280 ft) ±1.0 m/±1.0 yd./±3.0 ft (1,000 m/1,000 yd./3,280 ft and over)
Magnification (×)			6
Effective diameter of objective lens (mm)			21
Angular field of view (real) (˚)			7.5
Eye relief (mm)			18.0
Exit pupil (mm)			3.5
Diopter adjustment			±2.5 m-1
Dimensions (L × H × W) (mm/in.)			110 × 74 × 42/4.3 × 2.9 × 1.7
Weight (g/oz.)			Approx. 170/6.0 (without battery)
Operating temperature (˚C/˚F)			-10 — +50/14 — 122
Operating humidity (%RH)			80 or less (without dew condensation)
Power source			CR2 lithium battery × 1 (DC 3V) Automatic power shut-off (after approx. 30 sec. unoperated)
Structure			Waterproof (up to 1 m/3.3 ft for 10 minutes)*3, fogproof Battery chamber is rainproof — JIS/IEC protection class 4 (IPX4) equivalent (under Nikon's testing conditions)*4
Electromagnetic compatibility			FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020, ICES-003
Environment			RoHS, WEEE
Laser classification			IEC60825-1: Class 1M/Laser Product FDA/21 CFR Part 1040.10: Class I Laser Product
Wavelength (nm)			905
Pulse duration (ns)			9.5
Output (W)			15
Beam divergence (mrad)			Vertical: 1.8, Horizontal: 0.25

• The specifications of the product may not be achieved depending on the target object's shape, surface texture and nature, and/or weather conditions.

^*1 Under Nikon's measurement conditions and reference values.
^*2 Under Nikon's measurement conditions.
^*3 Waterproof models
This product has waterproof capabilities, and will suffer no damage to the optical system nor observation if submerged or dropped in water to a maximum depth of 1 m/3.3 ft for up to 10 minutes.
This product offers the following advantages:

• Can be used in conditions of high humidity, dust and rain without risk of damage to internal functions.
• Nitrogen-filled design makes it resistant to condensation and mold.

However, observe the following when using the Nikon Laser Rangefinder:

• Do not operate or hold the product in running water.
• If any moisture is found on movable parts of this product, stop using the product and wipe it off.

^*4 The battery chamber is rainproof, not waterproof. Water may enter the device if the Rangefinder is submerged in water. If water enters the battery chamber, wipe out any moisture and allow time for the chamber to dry.

Battery life

Approx. 9,400 times (at approx. 20°C (68°F))
This figure may differ according to conditions such as temperature and other factors. Use only as a guide.

• The battery supplied with this Nikon Laser Rangefinder is for operation checking. Due to natural electrical discharge, the life of this battery will likely be shorter than that noted above.

About laser

This product uses an invisible laser beam for measuring. It measures the time the laser beam takes to travel from the rangefinder to the target and back. Laser reflectivity and measurement results may vary according to climatic and environmental conditions, as well as the color, surface finish, size, shape and other characteristics of the target.

Measurement may be inaccurate or fail in the following cases:

• In snow, rain or fog
• Small or slender target
• Black or dark target
• Target has stepped surface
• Moving or vibrating target
• When measuring the surface of water
• Target measured through glass
• When the target is glass or a mirror
• When laser incidence to the target's reflective surface is oblique

Troubleshooting/Repair

If this product fails to function as expected, check the list below before consulting your local dealer or the store where you purchased it.

• If there is a problem with the product.

Problem	Cause/Solution
Does not turn on	Press the PWR button (top of the body). Check that the battery is inserted correctly. Replace the battery with a new one.
Unable to measure Anomalous result	Confirm the settings. Confirm if it can measure a large target close to you (example: a building approx. 15 m/15 yd./49 ft ahead of you). Clean the lens surface if necessary.
Cannot see the external display Difficult to see the external display	Check the backlight level of the external display, and adjust it as necessary.
[ ] is displayed in the internal display	Failure indication. Please contact your local dealer or the store where you purchased the product.

• If you require a repair, please contact your local dealer or the store where you purchased the product.
  Do not repair or disassemble. It may result in a serious incident.
  Please note that Nikon is not responsible for any direct or indirect damage if the user attempts to repair or disassemble the product.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Nikon Forestry Pro II - 6x21 Laser Rangefinder/Hypsometer Manual
