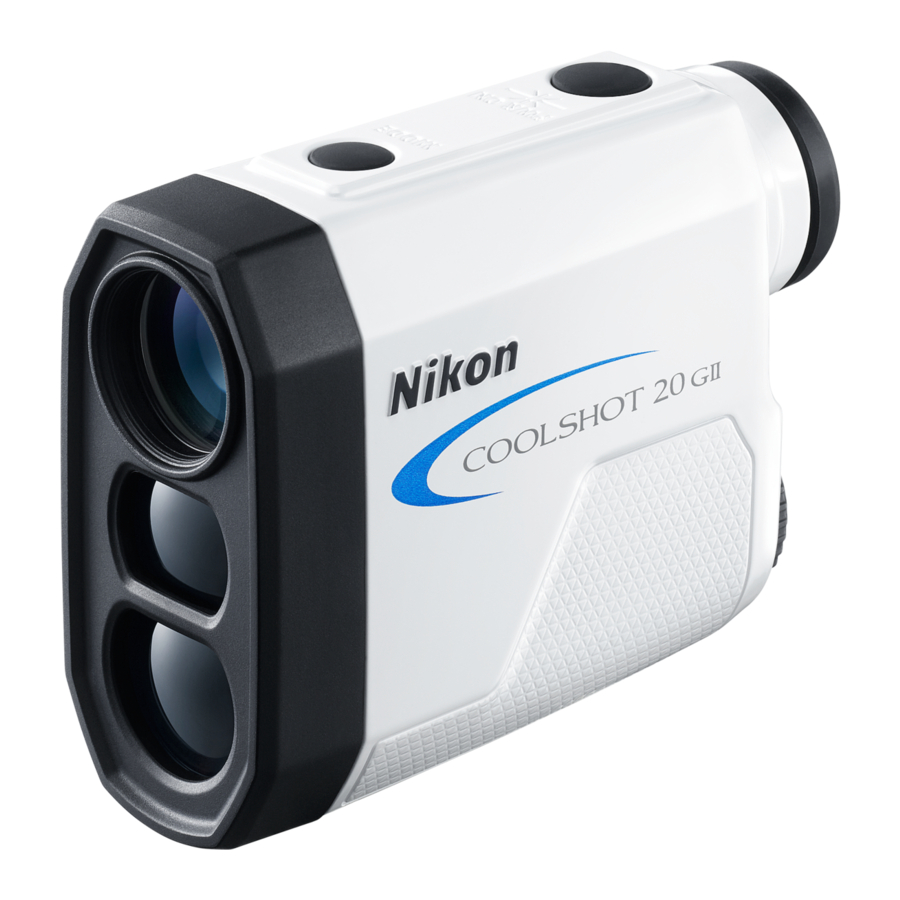

Nikon COOLSHOT 20 GII - 6x20 Laser Rangefinder Manual
![]()
Getting to know the Device
Key features
- Employs the First Target Priority algorithm that makes a flagstick easy to measure
- High-quality 6× finder with multilayer coating
- Automatic continuous measurement for up to 4 seconds if single measurement fails
- Press and hold down the PWR button to activate the continuous measurement function (up to approx. 8 seconds)
- Automatic power shut-off (approx. 8 sec. unoperated from standby screen)
- Rainproof — JIS/IEC protection class 4 (IPX4) equivalent (under Nikon's testing conditions)
- Invisible/Eyesafe EN/IEC Class 1M Laser
This product uses an invisible laser beam for measuring. It measures the time the laser beam takes to travel from the rangefinder to the target and back. Laser reflectivity and measurement results may vary according to climatic and environmental conditions, as well as the color, surface finish, size, shape and other characteristics of the target.
Measurement may be inaccurate or fail in the following cases:
- In snow, rain or fog
- Small or slender target
- Black or dark target
- Target has stepped surface
- Moving or vibrating target
- When measuring the surface of water
- Target measured through glass
- When the target is glass or a mirror
- When laser incidence to the target's reflective surface is oblique
About measurement results
This device is a basic rangefinder. Its measurement results cannot be used as official evidence.
Nomenclature
![Nikon - COOLSHOT 20 GII - Nomenclature Nomenclature]()
- PWR button (POWER ON/Measurement button)
- MODE button
- Monocular objective lens
- Laser emission aperture
- Laser detector aperture
- Eyecup/Diopter adjustment ring
- 6× monocular eyepiece
- Diopter index
- Strap eyelet
- Battery-chamber cover "Open" indication
- Battery-chamber cover
- Product number label
- Indication
Composition
- Body ×1
- Strap ×1
- Case ×1
- Lithium battery (CR2) ×1
Internal display
![Nikon - COOLSHOT 20 GII - Internal display - Overview Internal display - Overview]()
- Target mark
: Aim at the target you want to measure. Position the target at the center of the mark. - Unit of measure (m: meter/YD: yard)
- Distance
: "Failure to measure" or "Unable to measure" - Battery level indicator
- Laser irradiation mark
: Appears while the laser is being irradiated for a measurement. Do not look towards the objective lens side while this mark is shown.
- The internal display of this product is enlarged by the eyepiece. Although you may see dust that has entered, it does not effect the accuracy of measurement.
Inserting/Replacing battery
Type of battery
3V CR2 lithium battery ×1
Inserting/Replacing battery
- Open the battery-chamber cover.
Rotate the battery-chamber cover counterclockwise and remove it. - Insert the battery.
To replace the battery, take out the old battery before inserting a new one.
Follow the battery insertion mark inside the battery chamber to insert the + and - ends of the battery in the correct orientation (insert so that the + end faces outward). If the battery is not inserted correctly, the Laser Rangefinder will not operate. - Attach the battery-chamber cover.
Rotate the battery-chamber cover clockwise and secure it firmly. When attaching the battery-chamber cover, securely screw it all the way and check that it is secured.
- The battery-chamber cover may be difficult to rotate because this product uses a rubber seal to maintain its water resistance capabilities.
Battery level indicator
Display | Description |
| After power on, displays for 2 seconds only. | Sufficient power available. |
| After power on, displays for 2 seconds only. | Power getting low. Prepare to replace the battery. |
| Displayed continuously. | Low. Battery should be replaced with a new one. |
![]() | Blinks. After blinking 3 times, automatically powers off. | The battery is empty. Replace the battery. |
Changing the distance display unit
For the display unit of the measurement results, select YD (yards) or m (meters). Factory default setting is YD (yard).
![]()
- Press the PWR button to turn on the Laser Rangefinder.
- Press and hold the MODE button for more than two seconds. When the display unit has been switched, release the button.
![Nikon - COOLSHOT 20 GII - Changing the distance display unit Changing the distance display unit]()
- The setting is saved even when the Laser Rangefinder is turned OFF.
Measurement
![]()
Controls, adjustments or usage of procedures other than those specified herein may produce negative effects or damage to your health due to laser radiation.
Adjusting the focus of the internal display
If the internal display is difficult to see, adjust the focus with the following procedure.
- Press the PWR button to turn on the power.
- Look through the eyepiece and rotate the diopter adjustment ring until the internal display comes into focus.
![]()
Measuring
- Press the PWR button to turn on the power.
- If you do not operate the button for about 8 seconds, the power turns off automatically.
![]()
- Aim at the target.
Position the center of the target mark on the target.
![]()
- Press the PWR button to measure.
After measurement, the result is displayed for approx. 8 seconds, then power automatically turns off.
Press the PWR button while the power is on to measure again.
Single measurement
Pressing the PWR button once starts single measurement, then displays the results.
- If measurement fails, measurement continues automatically for up to about 4 seconds until results are obtained. Measurement stops when it is successful, even within about 4 seconds.
![Nikon - COOLSHOT 20 GII - Single measurement - Example Single measurement - Example]()
Continuous measurement
Press and hold down the PWR button to start continuous measurement up to approx. 8 seconds. During measurement, the measured result is displayed consecutively while the laser irradiation mark is blinking. If you release your finger from the button, continuous measurement stops.
![Nikon - COOLSHOT 20 GII - Continuous measurement Continuous measurement]()
* If measurement fails, measurement continues automatically for up to about 4 seconds until results are obtained.
- When measuring a flagstick at a golf course
Keep targeting the flagstick at the center of the target mark with the continuous measurement function to minimize the effects of hand shake.
Specifications
Measurement range (actual distance) | 5 - 730 m/6 - 800 yd. |
Distance display (increment) | 1 m/yd. |
Accuracy (actual distance)*1 | ±1 m/yd. (shorter than 100 m/yd.) ±2 m/yd. (100 m/yd.and over) |
Magnification (×) | 6 |
Effective diameter of objective lens (mm) | 20 |
Angular field of view (real) (˚) | 6.0 |
Eye relief (mm) | 16.7 |
Exit pupil (mm) | 3.3 |
Diopter adjustment | ±4 m-1 |
Dimensions (L × H × W) (mm/in.) | 91 × 73 × 37/3.6 × 2.9 ×1.5 |
Weight (g/oz.) | Approx. 130/4.6 (without battery) |
Operating temperature (˚C/˚F) | -10 — +50/14 — 122 |
Operating humidity (%RH) | 80 or less (without dew condensation) |
Power source | CR2 lithium battery × 1 (DC 3V) Automatic power shut-off (after approx. 8 sec. unoperated) |
Structure | Rainproof *2 |
Electromagnetic compatibility | FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020, ICES-003 |
Environment | RoHS, WEEE |
Laser classification | IEC60825-1: Class 1M/Laser Product FDA/21 CFR Part 1040.10: Class I Laser Product |
Wavelength (nm) | 905 |
Pulse duration (ns) | 20 |
Output (W) | 23 |
Beam divergence (mrad) | Vertical: 3.33, Horizontal: 0.17 |
- The specifications of the product may not be achieved depending on the target object's shape, surface texture and nature, and/or weather conditions.
*1 Under Nikon's measurement conditions.
*2 This product is equivalent to JIS/IEC protection class 4 (IPX4) (under Nikon's testing conditions). This rating does not guarantee the water resistance performance of the unit or that it will be free from damage or problems under all conditions. Please observe the following when using:
- Do not operate or hold the product in running water.
- If any moisture is found on movable parts of this product, stop using the product and wipe it off.
Battery life
Approx. 20,000 times (at approx. 20°C (68°F))
This figure may differ according to conditions such as temperature and other factors. Use only as a guide.
- The battery supplied with this Nikon Laser Rangefinder is for operation checking. Due to natural electrical discharge, the life of this battery will likely be shorter than that noted above.
Troubleshooting/Repair
If this product fails to function as expected, check the list below before consulting your local dealer or the store where you purchased it.
- If there is a problem with the product.
Problem | Cause/Solution |
| - Press the PWR button (top of the body).
- Check that the battery is inserted correctly.
- Replace the battery with a new one.
|
-
Unable to measure -
Anomalous result | - Confirm the settings.
- Confirm if it can measure a large target close to you (example: a building approx. 15 m/yd. ahead of you).
- Clean the lens surface if necessary.
|
- If you require a repair, please contact your local dealer or the store where you purchased the product.
Do not repair or disassemble. It may result in a serious incident.
Please note that Nikon is not responsible for any direct or indirect damage if the user attempts to repair or disassemble the product.
![]()
