Installing the Device
2.4 Mounting the Device

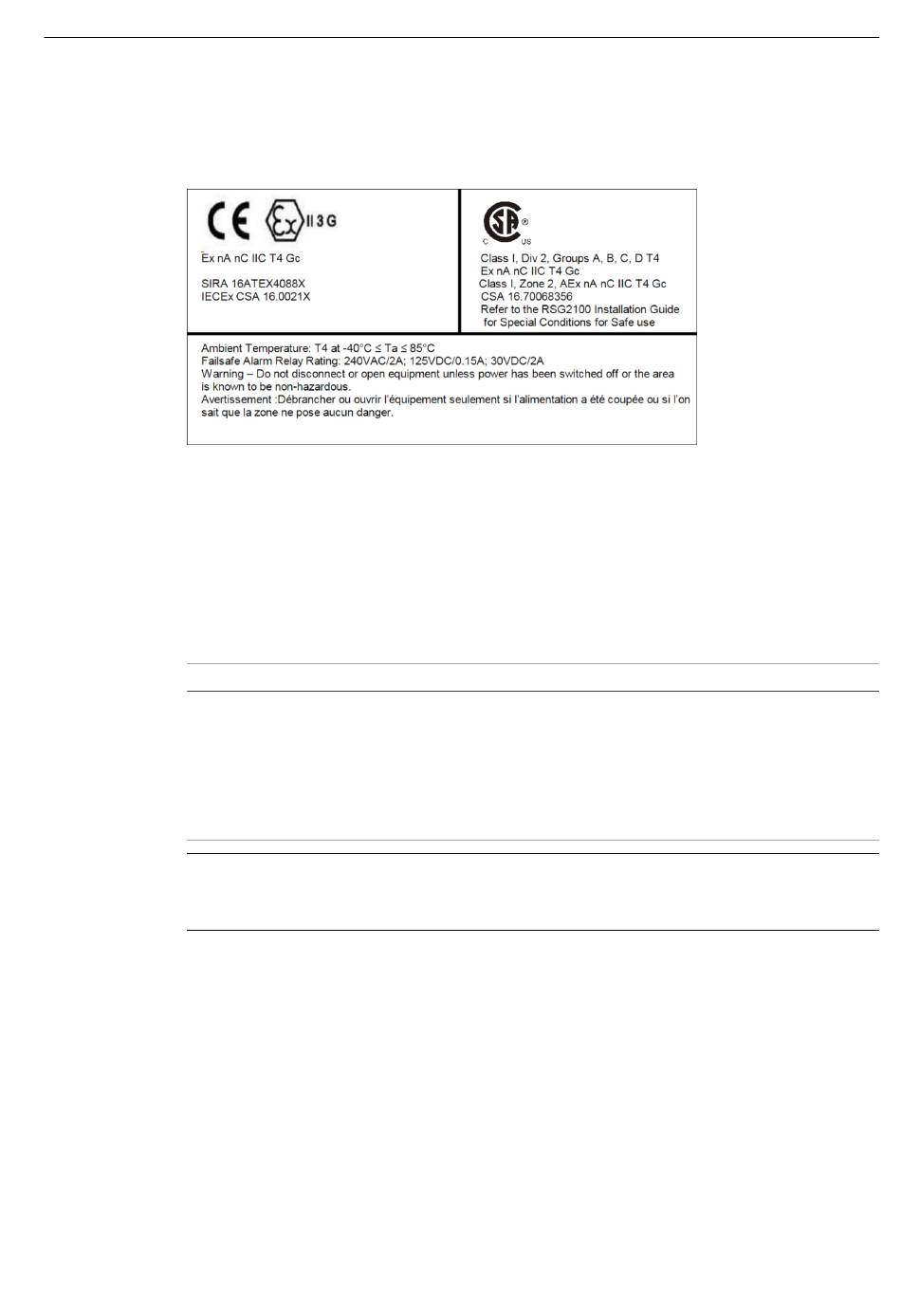

Sample Hazardous Location Label
The following is an example of the RUGGEDCOM RSG2100F hazardous location label:
Figure 2.1
2.4

Mounting the Device

The RUGGEDCOM RSG2100F is designed for maximum mounting and display flexibil-
ity. It can be equipped with connectors that allow it to be installed in a 48 cm (19 in)
rack, 35 mm (1.4 in) DIN rail, or directly on a panel.
NOTICE
Heat generated by the device is channeled outwards from the enclosure. As such, it
is recommended that 2.5 cm (1 in) of space be maintained on all open sides of the
device to allow for some convectional airflow.
Forced airflow is not required. However, any increase in airflow will result in a reduc-
tion of ambient temperature and improve the long-term reliability of all equipment
mounted in the rack space.
Note
For detailed dimensions of the device with either rack, DIN rail or panel hardware in-
stalled, refer to
2.4.1

Mounting the Device to a Rack

The RUGGEDCOM RSG2100F can be secured to a standard 48 cm (19 in) rack using
separately purchased rack mount adapters. The adapters can be installed at the front
or rear of the chassis.
Each adapter kit includes four adapters.
10
Compliance Label (Example)
"Dimension Drawings (Page
37)".
Installation Manual, 01/2020, C79000-G8976-1344-07
RUGGEDCOM RSG2100F
