2.3

Mounting the Device

The RUGGEDCOM i803 can be ordered with a DIN rail adapter pre-installed on the
back of the chassis. Use the adapter to latch the mount the device to a standard 35
mm (1.4 in) by 15 mm (0.6 in) IEC/EN 60715 or TS35 DIN rail.
Heat generated by the device is channeled outwards from the enclosure. As such, it
is recommended that 2.5 cm (1 in) of space be maintained on all open sides of the
device to allow for some convectional airflow.
Forced airflow is not required. However, any increase in airflow will result in a
reduction of ambient temperature and improve the long-term reliability of all
equipment mounted in the rack space.
Note
For detailed dimensions of the device with the DIN rail adapter installed, refer to
"Dimension Drawings" (Page 25).

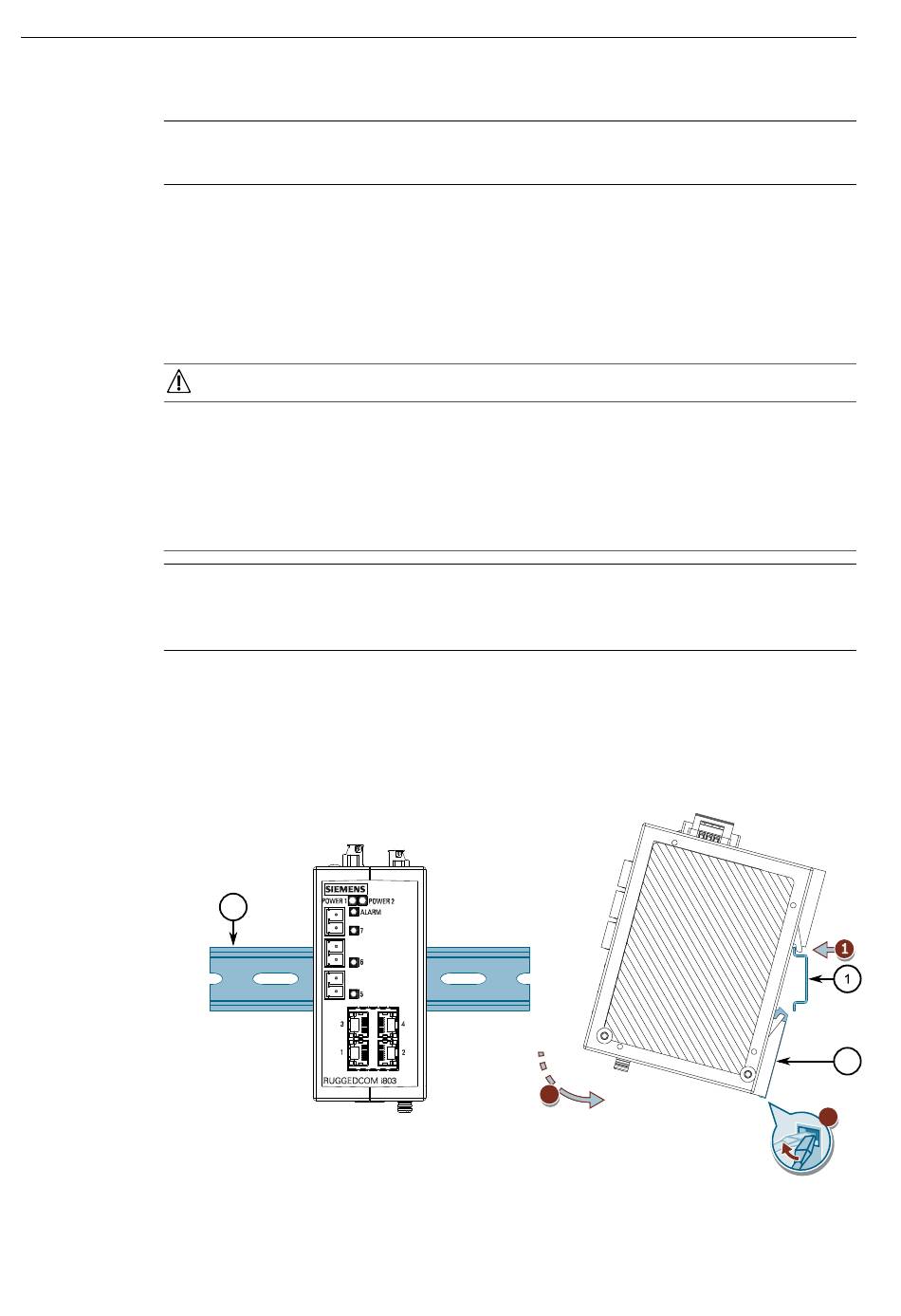

Mounting the Device
To mount the device to a DIN rail, do the following:
1.
RUGGEDCOM i803
Equipment Manual, 10/2023, C79000-G8976-1005-09
NOTICE
Hook the top teeth of the adapter onto the DIN rail.
