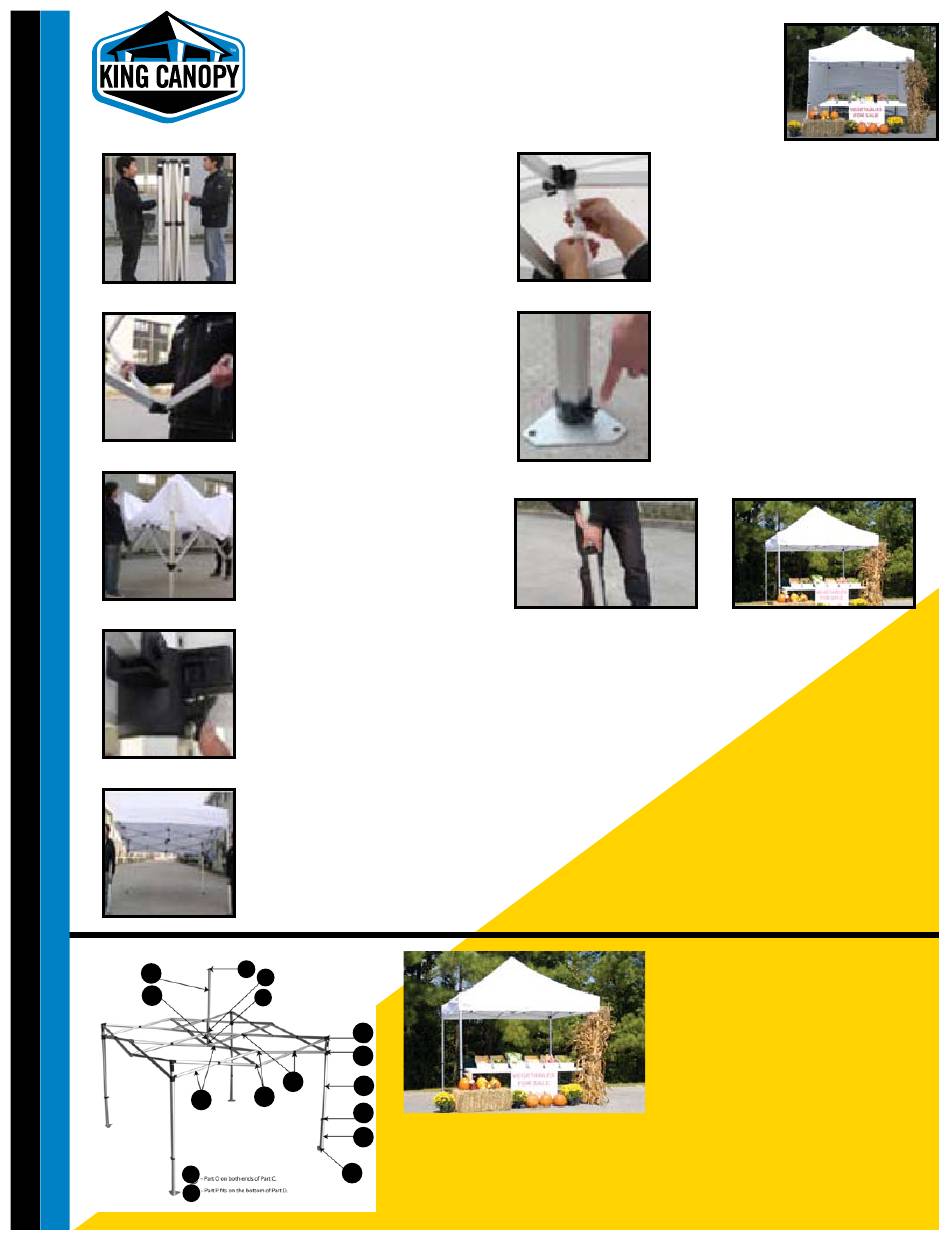

KING CANOPY GOLIATH Setup Instructions

It is recommended to use two people when setting up the Goliath.
1. Standing towards your partner,
grasp the corner legs and extend out to
arms length while stepping back. Insure
that bottom truss elbows are free and not
overlapping prior to opening.
2. Next, grasp the lower "V" of the truss that
you are facing. Lift up the shelter slightly
and step back until the unit is halfway
open.
3. Place fabric top on frame. Match up the
hook and loop on the corners of the cover
with the hook and loop at the top of legs.
Make sure the center peak of canopy
fabric is centered over the peak pole.
4. Pull the frame completely out until all
sliders are engaged at each corner on
each leg. You will have to push up on
sliders to get buttons to lock in place.
You may need to move around unit
pulling and opening until completely
open and locked.
5. With a helper, one should go to opposite
legs on one side of the canopy and extend
the legs by pressing the leg release
button and pulling out the lower leg. Use
your foot on bottom of leg to start the
extension, then use your hands. This will
allow the leg to extend smoothly. Repeat
this step on the other side.
n
e
M
D
L
J
K
C
O
P

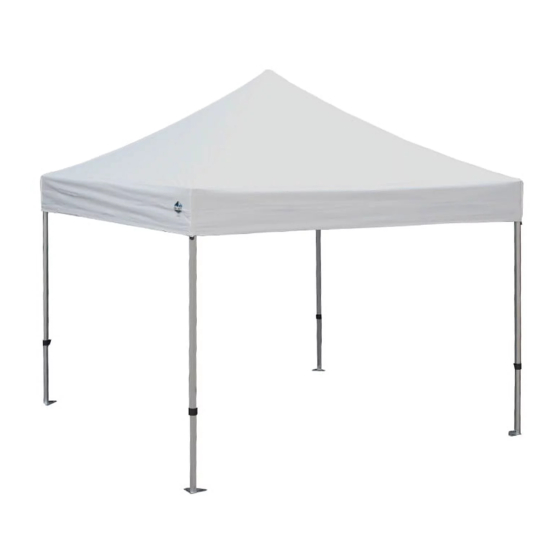

G O L I AT H
10ft x 10ft / 3m x 3m
SeT-UP InSTrUCTIOnS

TAKe DOWn InSTrUCTIOnS

1. Unhook the loop straps holding top on.
2. Lower the legs by pressing leg release buttons and allowing the lower
3. Press the top release button to release the framework top at each
4. Remove and fold top. Remove the top after each use and store in the
5. Grasp the top "V" and fold in completely. Move from side to side as
6. Insert the legs into carry bag first then close with zippers.
I
H
B
G
King Canopy Brand Products
A
1730 Five Points Lane
Fuquay-Varina, NC 27526
f
Phone: 1-800-800-6296
www.kingcanopy.com
™
6. To secure and tighten top on frame
attach the adjustable loop straps sewn to
top in the center on each side around the
bottom truss bar.
7. Adjust the legs to the desired setting by
pressing the release buttons and pull out
lower part of leg raising canopy.
8. Use the large nail stakes to secure the
feet at each leg position. To anchor the
unit using the stakes and rope enclosed,
tie the rope through the D-Ring on the
top at each corner.
part of leg to slide into upper part.
corner. Failure to release this button may damage frame when you
attempt to close.
pocket provided on the carry bag. Never store wet.
This is recommended to prevent small rips and tears.
Make sure the canopy top is dry before storing.
necessary. Careful, Watch Your Fingers.
See reverSe SIDe fOr CAre AnD WArrAnTy.
Specify unit size when ordering parts.
A. GOLALLL-A Lower leg, aluminum 40mm (4)
B. GOLALUL-B Upper leg, aluminum 50mm (4)
C. GOLALTB-C Truss bar, aluminum 35x15mm (24)
D. GOLALLP-D Lower peak pole, aluminum (1)
E. GOLALUP-E Upper peak pole, aluminum (1)
F. GOLALF-F Foot Pad (4)
G. GOLHA-G Leg height adjustment (4)
H. GOLLS-H Corner leg slider (4)
I. GOLLC-I Corner leg cap (4)
J. GOLTC-J Truss connector (12)
K. GOLTJ-K Truss junction connector (8)
L. GOLLPC-L Lower peak connector (1)
M. GOLPS-M Peak pole slider (1)
N. GOLUPC-N Upper peak pole cap (1)
O. GOLTBEC-O Truss bar endcap (48)
P. GOLLPC-P Lower peak cap (1)
GOLALPPA Peak pole assembly, includes parts: D, E, L, M, N & P
GOL10RB 10' roller bag (1)
GOLT10WH 10' white cover, 500 denier (1)
GOLT10104PKW 4-Pack Sidewalls for Goliath Shelter
GOL-SPRING Peak pole spring, in Part D (1)
STAKE-INST Ground stakes for instant (8)
ROPE-INST Rope for instant (8)
Call 1-800-800-6296
