Summary of Contents for Puretec Z1-RW-K

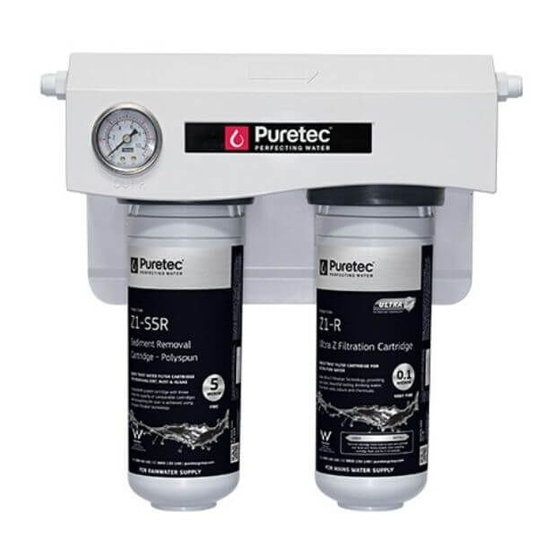

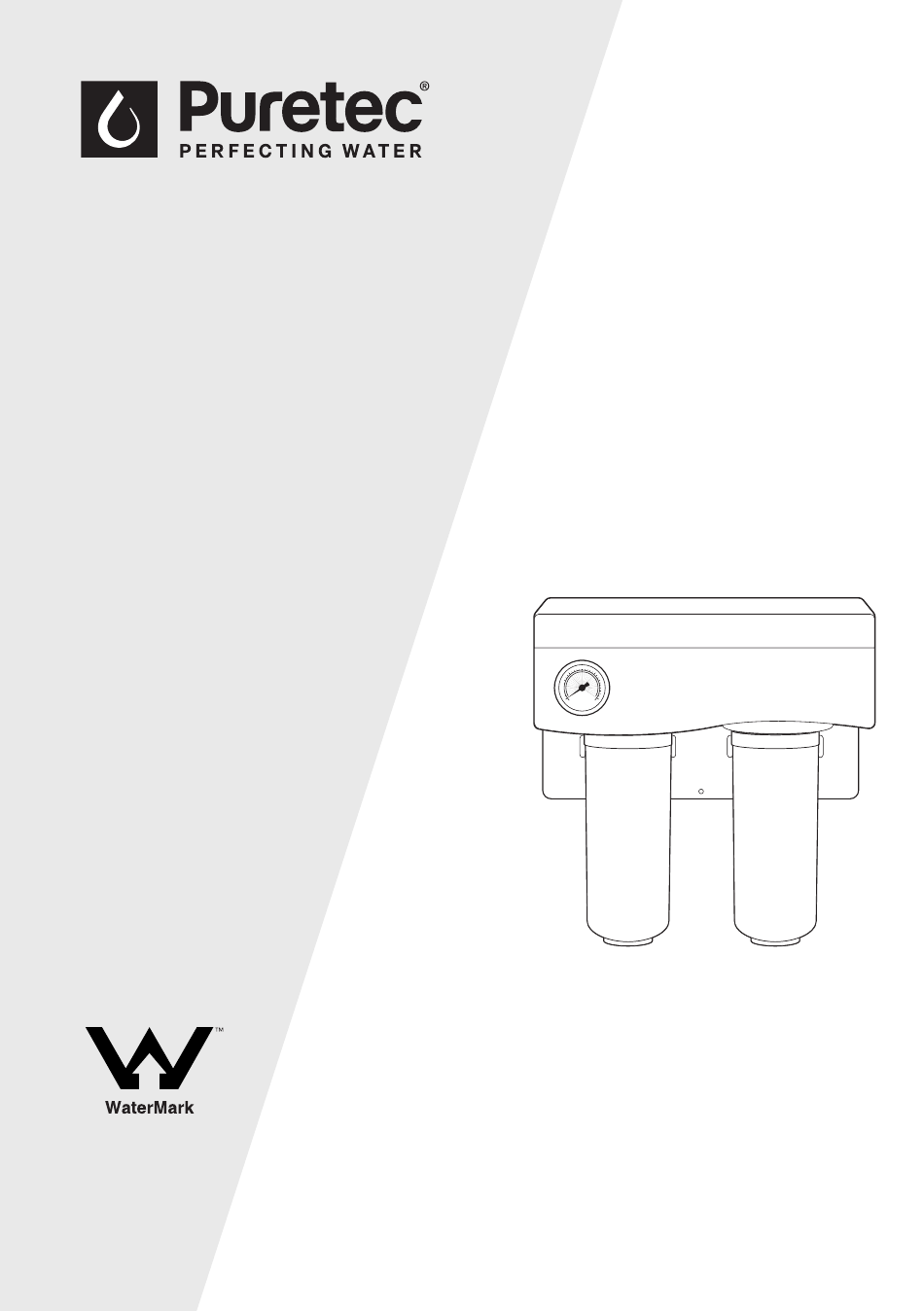

- Page 1 User Guide Z1-RW-K AS/NZS 3497 Licence No. WM 74726 Australian Certification Quick Twist Undersink Rainwater Filter Kit Services For correct operation & installation, it is essential to observe these instructions. MAR2020...
-
Page 2: Table Of Contents
Warranty ...............................8 Puretec Customer Service Thank you for purchasing a Puretec Quick Twist Undersink Water Filter System. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly. -
Page 3: Operation
Install filter cartridge by positioning it in the desired location, marking the position of fixing hole and fixing with bracket screw. The Z1-RW-K system is designed to be mounted vertically. Allow room for the connecting tubes. Ensure flow arrow on the manifold is in direction of water flow. -
Page 4: Cartridge Changeout
Caution: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Installation & Operation Manual Copyright © Puretec Ltd 2020... - Page 5 Assembly Figure 1 DESCRIPTION Smart Tee™ ½"M x ½"F x ¼"T White Tubing MultiValve Z1-S5R Filter Cartridge Z1-R Filter Cartridge CO-M25 2 Stage Series Configuration Manifold System 3-Way Mixer or Filter Faucet (sold separately) Figure 2 HOW TO USE QUICK CONNECT FITTINGS Fitting grips before it seals.
- Page 6 DISCONNECTION PROCEDURE 5. Turn the quick connect nut on the SmartTee™ 6. Push the collet against the quick connect nut and slide anticlockwise to release the collet. tube out of fitting. Installation & Operation Manual Copyright © Puretec Ltd 2020...
-
Page 7: Performance Data
Performance Data Z1-R Performance Data Average Average Average Max Effluent Min Percent Substance Guidelines* Influent Effluent Percent Concentration Removal Concentration Concentration Removal NSF Standard 42 Drinking Water Treatment Units Chlorine 5 - Health 0.25 >94% (23,000 L) 0.6 - Aesthetic Standard 53 Cyst Live Cryptosporidium POU/POE Cyst <1... -
Page 8: Warranty
Puretec water care products are designed, manufactured and supported by Puretec Pty Ltd the name you can trust for viable and proven water solutions. The complete range of Puretec products are developed, refined, made to meet and exceed stringent specifications for the worldwide market. - Page 9 Warranty Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
- Page 10 10 Installation & Operation Manual Copyright © Puretec Ltd 2020...
- Page 11 Quick Twist Undersink Rainwater Filter Kit...
